Plot impact factor vs. [h/ delta static]

Hello,

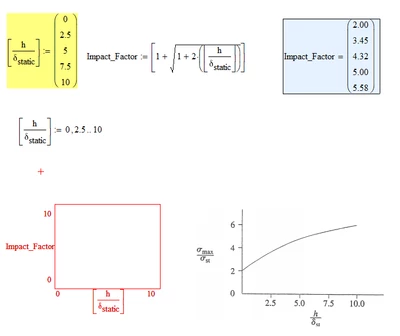

In the attached sheet, I want to plot Impact factor vs [h/delta static] but unable to. I am sure there is an easier and better way than i did so far. i saved the file as Mathcad 11.




Thanks,

Sam

StuartBruffAnswer
23-Emerald V
October 16, 2021

Your "red" plot won't work because h/delta_static is a range variable, and you need to have something on the y-axis that also uses it before Mathcad will plot it.



I know this answer is in Mathcad Prime Express 7, but I *think* the methods should work in M11..M15.

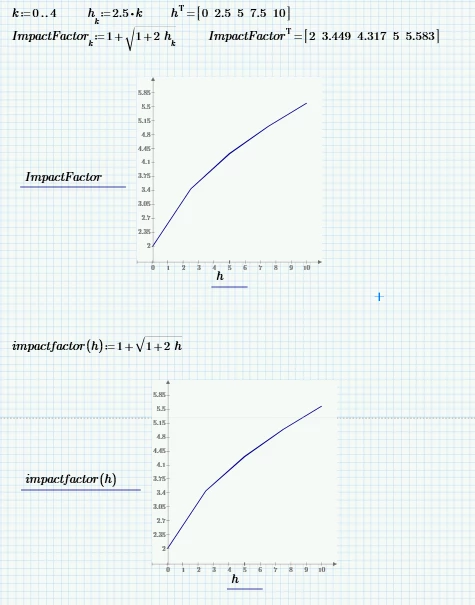

2021 10 16 A.png



Not sure whether (having defined impactfactor as above) the following will work in M11..M15.

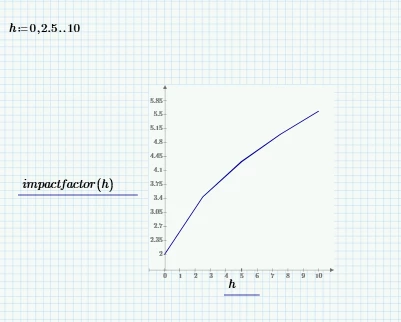

2021 10 16 B.png



Stuart

View in thread

5 replies

Werner_E
Werner_E25-Diamond I
25-Diamond I
October 16, 2021

You define h/delta as a vector in the forst line, but redefine it as a range in the second. Then you try to plot the vector "Impact" over that range, which does not work. You can plot a vector over another vector or use a range in combination with a function.

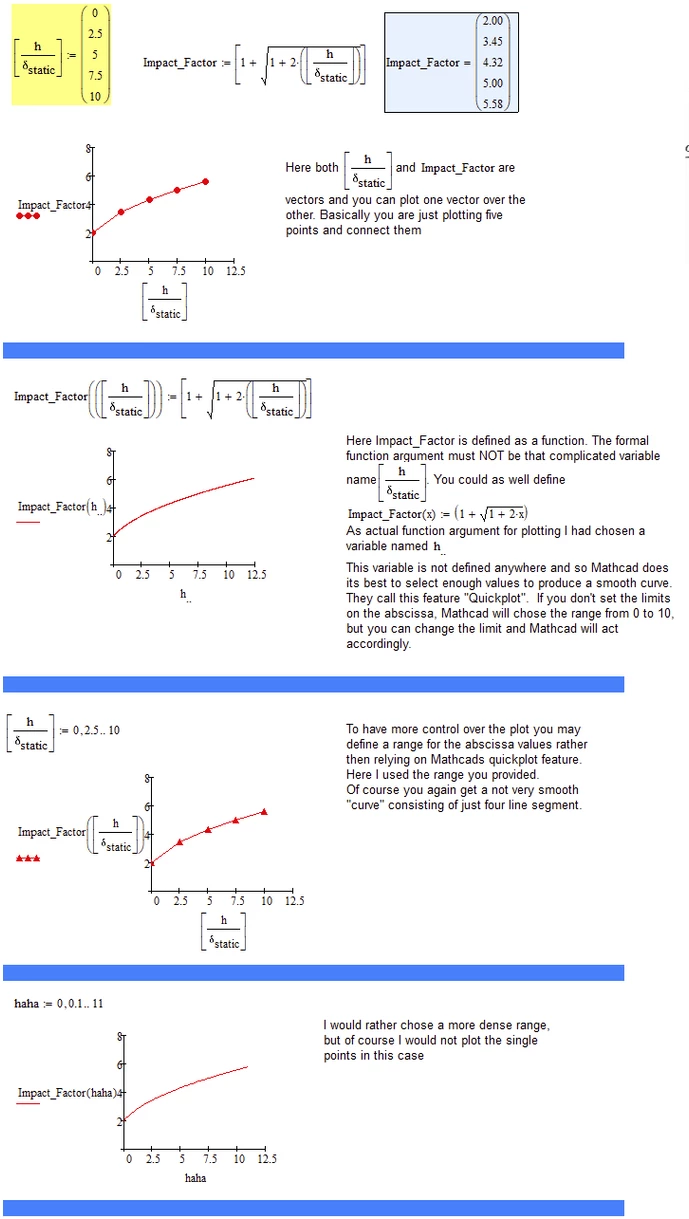

See the examples:






Mathcad 11 worksheet attached





Translate
    SFares14-AlexandriteAuthor
    14-Alexandrite
    October 16, 2021

    Thank you So much for your detailed answer Werner! I always struggle with vector and range definitions and I get them mixed up.



    Sam

    Translate
    StuartBruff23-Emerald VAnswer
    23-Emerald V
    October 16, 2021

    Your "red" plot won't work because h/delta_static is a range variable, and you need to have something on the y-axis that also uses it before Mathcad will plot it.



    I know this answer is in Mathcad Prime Express 7, but I *think* the methods should work in M11..M15.



    2021 10 16 A.png



    Not sure whether (having defined impactfactor as above) the following will work in M11..M15.



    2021 10 16 B.png



    Stuart

    Translate
      SFares14-AlexandriteAuthor
      14-Alexandrite
      October 16, 2021

      Thank you so much Stuart!



      Sam

      Translate
      StuartBruff23-Emerald V
      23-Emerald V
      October 17, 2021

      No worries.  Glad it helped. 🙂



      Stuart
