Plot smooth curves in Mathcad

  • January 29, 2016
  • 6 replies
  • 8720 views

Hello Everyone,

Can you please show me how to plot a smooth compaction curve from a given data using Mathcad.

Thank you

6 replies

R
RichardJ19-Tanzanite
19-Tanzanite
January 30, 2016

I'm not into typing, so look up the spline functions. You can use them to interpolate to get a smooth curve.

If you want more than that then please post the data. If you have Prime 3.1 then a lot of people can't read the worksheets, so please post the data in another format.

W
Werner_E25-Diamond I
25-Diamond I
January 30, 2016

As Richard already said - use spline interpolation.

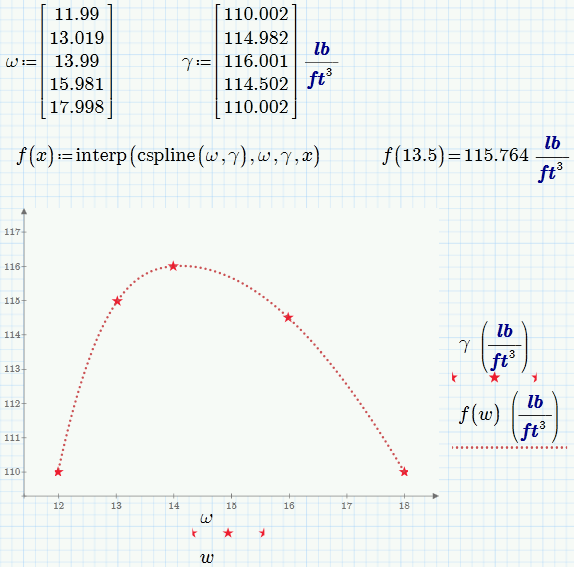

The attached file should help

WE

    R
    RichardJ19-Tanzanite
    19-Tanzanite
    January 30, 2016

    I know I only had to type 10 values, but at 7 pm, with dinner waiting, I was feeling exceptionally lazy

    F
    fahmed-214-AlexandriteAuthor
    14-Alexandrite
    January 31, 2016

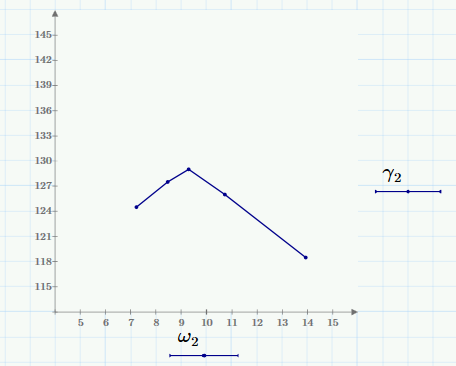

    Hahaahaaaa Richard.....thanks for the help. I have developed my work using your example. I have attached my part with this reply. I have also shown a trend that comes up in excel with similar data......the first one seems to match but for the second one, it had some problem in mathcad as it showed a lower bump , so i had to omit the values that did not show a bump and matched that with excel. Also, my interpolation function is not on the tool bar so every time I needed this function, I had to call all functions and find from that. can you help me with that also......Thanks ( sorry again to request you during your dinner time again  )

    F
    fahmed-214-AlexandriteAuthor
    14-Alexandrite
    January 31, 2016

    Hahaahaaaa Richard.....thanks for the help. I have developed my work using Werner's  example. I have attached my part with this reply. I have also shown a trend that comes up in excel with similar data......the first one seems to match but for the second one, it had some problem in mathcad as it showed a lower bump , so i had to omit the values that did not show a bump and matched that with excel. Also, my interpolation function is not on the tool bar so every time I needed this function, I had to call all functions and find from that. can you help me with that also......Thanks ( sorry again to request you during your dinner time again  )

    R
    RichardJ19-Tanzanite
    19-Tanzanite
    January 31, 2016

    Sorry, your file is in Prime 3.1 format, so I can't open it.

    It's a long way from dinner time. Lunch is getting close though

    V
    ValeryOchkov24-Ruby IV
    24-Ruby IV
    January 31, 2016

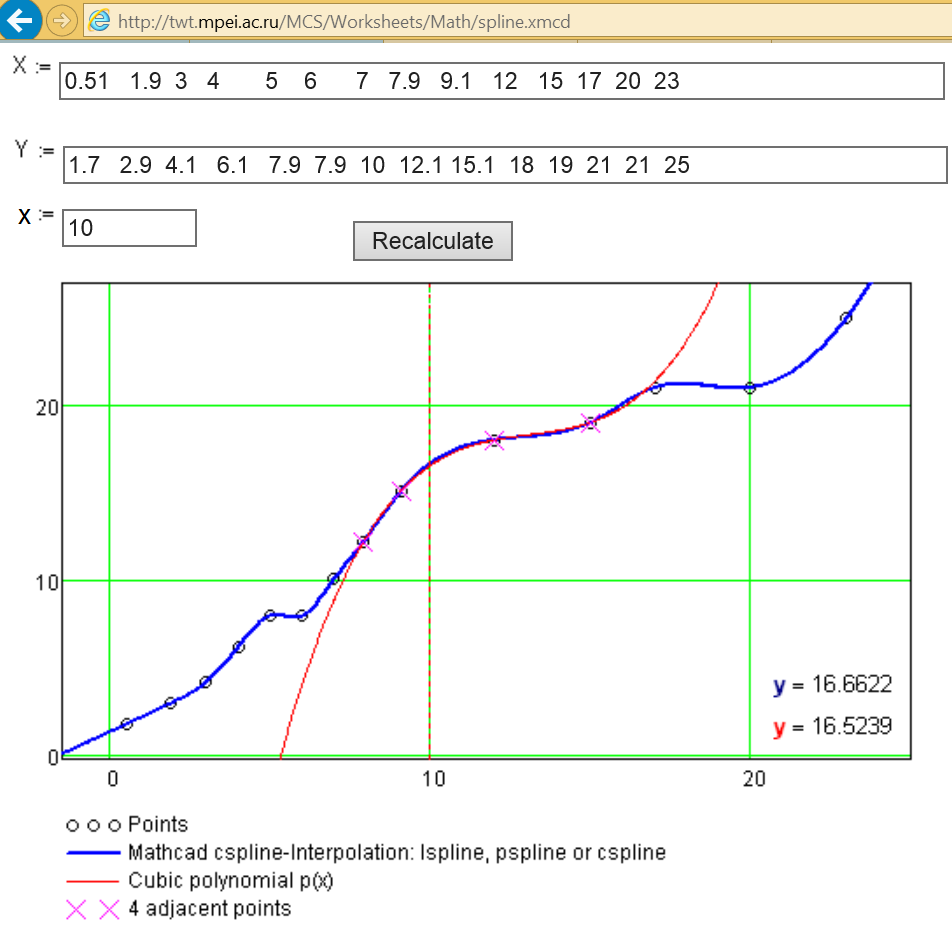

    Try please a web sheet on Mathcad Server http://twt.mpei.ac.ru/MCS/Worksheets/Math/spline.xmcd

    W
    Werner_E25-Diamond I
    25-Diamond I
    February 1, 2016

    I can't read P3.1 files, either.

    But I guess you will first have to decide if you want an interpolation (like the splines) or a regression/approximation/best fit like the trend curves in Excel. If the latter is the case, you have to decide which function type you'd like to follow and you may want to look up "Functions-Data Analysis-Curve Fitting" in the help.

    WE

    F
    fahmed-214-AlexandriteAuthor
    14-Alexandrite
    February 1, 2016

    Sorry guys.....for convenience I am attaching a word file

    Thanks

    F
    Fred_Kohlhepp23-Emerald I
    23-Emerald I
    February 1, 2016

    Your compaction curve from EXCEL is simply EXCEL's "smoothed curve" plot

    Plotted without curve fit, Mathcad gives similar:

    -
    -MFra-21-Topaz II
    21-Topaz II
    May 10, 2016

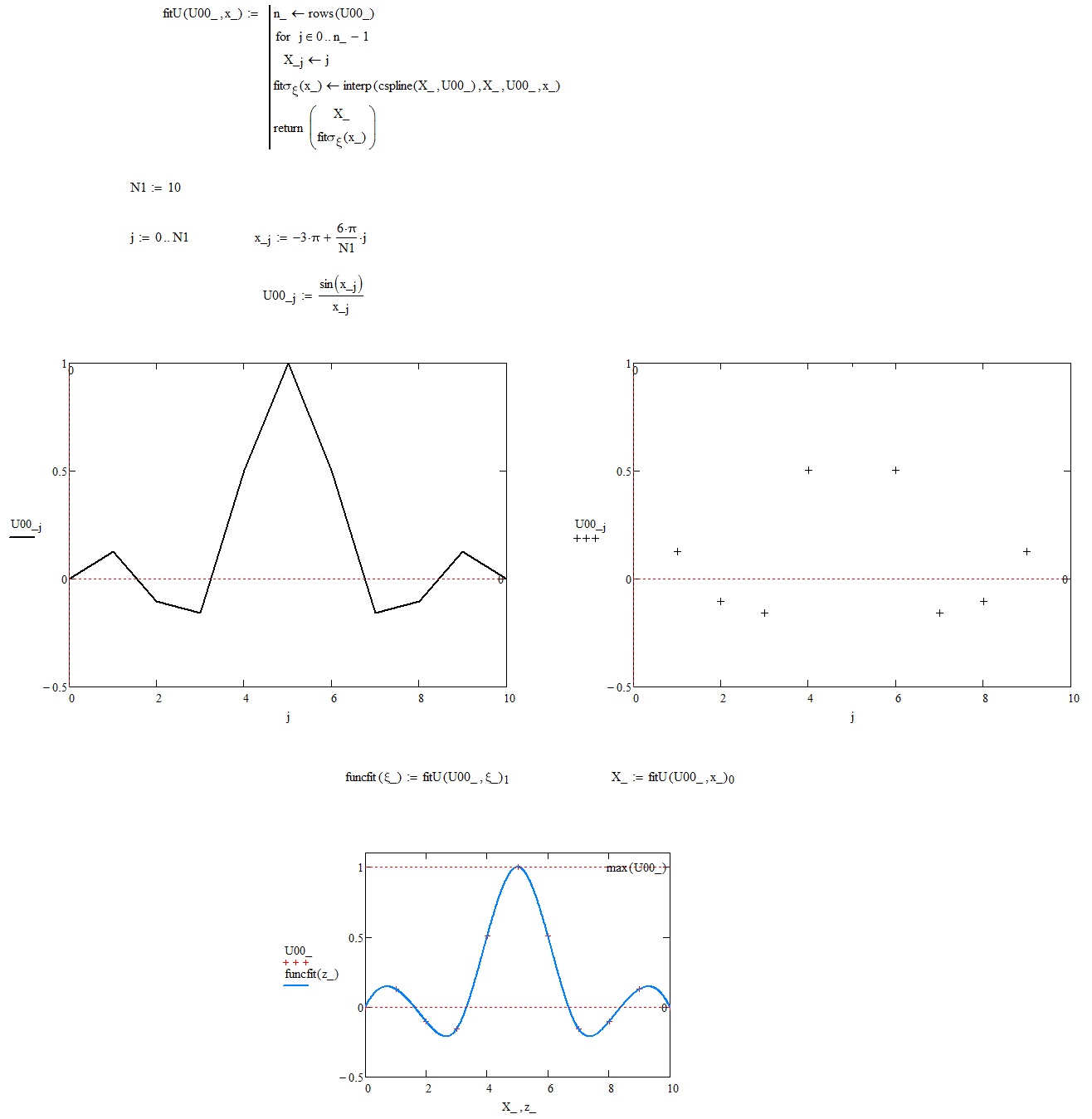

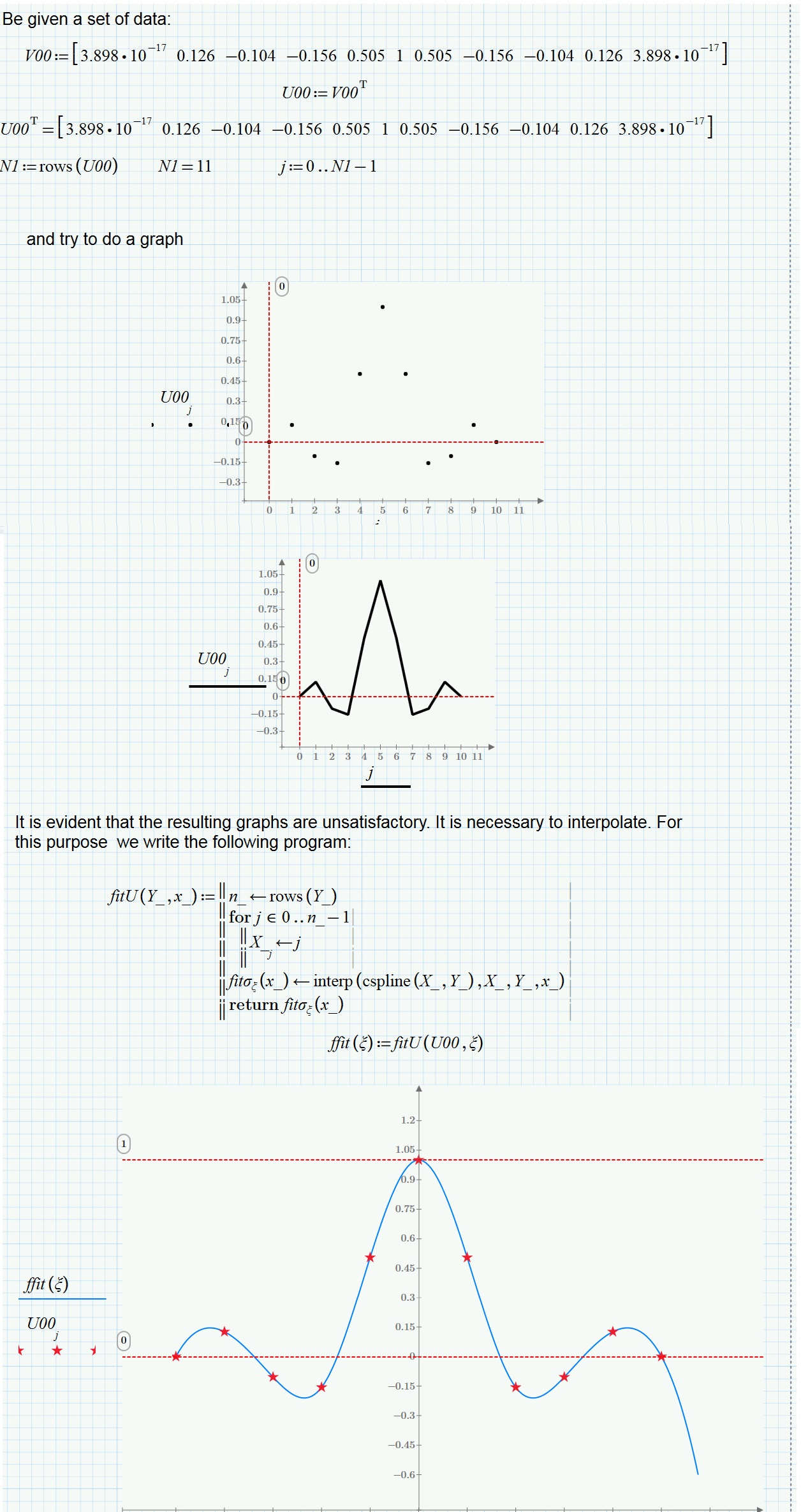

    Hello Faisal, it could be useful the following procedure you need to adjust a graph consisting of a few points (ie a broken function) with a solid line ..


    My solution for mathcad prime 3.1


    But I am a little puzzled because the graph is prolonged beyond j = 11 point.
