Plot the contact-point ?

Hi Everyone,
From the following :

Contact-Point (1).PNGContact_Point (2).PNG

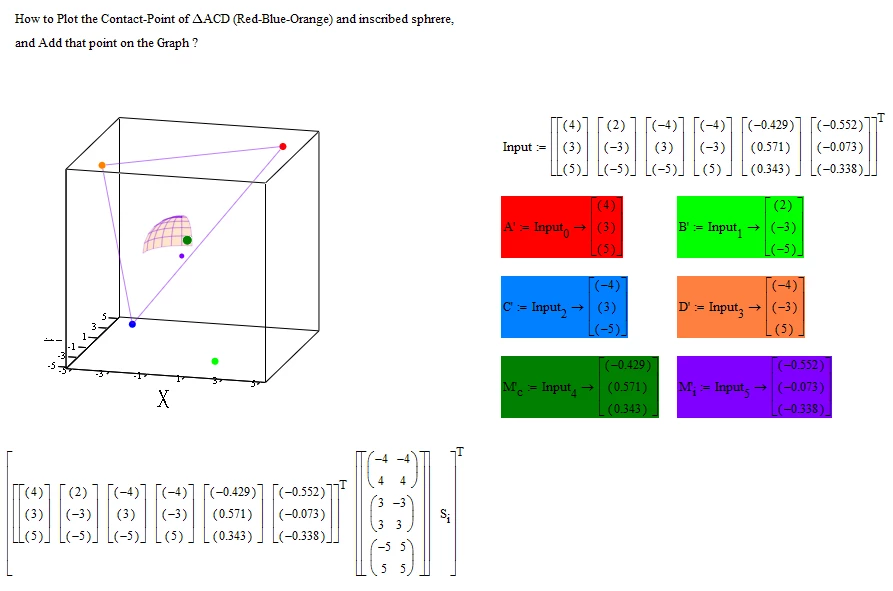

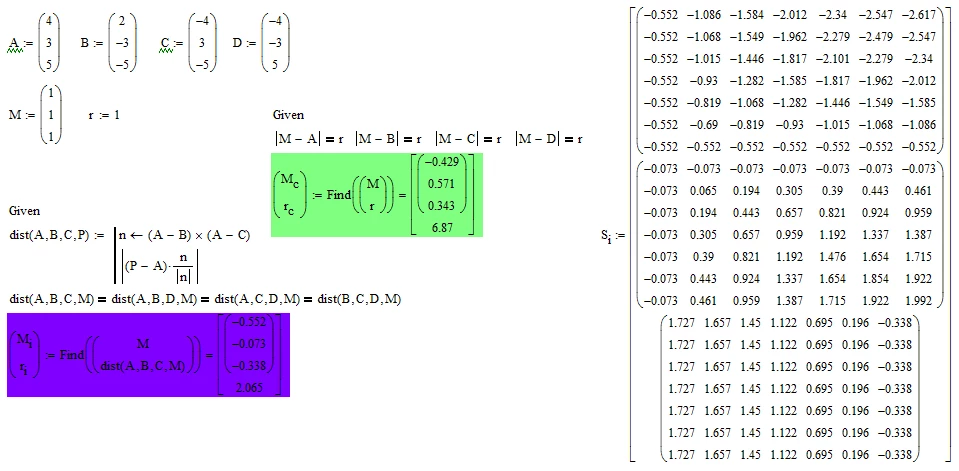

How to Plot the contact-point of ΔACD (Red-Blue-Orange) and inscribed sphrere and Add that point on the Graph ?
Thanks in advance.
Best Regards.

Werner_E
Werner_EAnswer
25-Diamond I
August 26, 2022

In this answer

https://community.ptc.com/t5/Mathcad/Plot-the-center-of-a-sphere-with-4-points/m-p/814821/highlight/true#M202262

I showed how to calculate all four points of contact (in German: "Berührpunkt").

To get the point you are looking for you would call "Berührpunkt(A,C,D,M.i)"

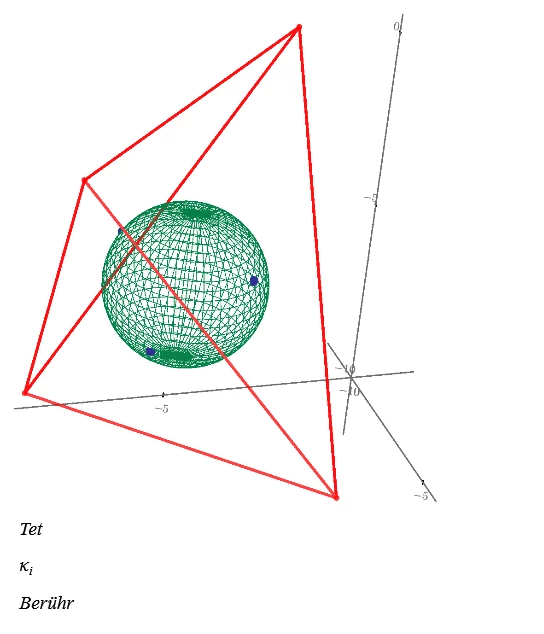

The array "Berühr" calculates all four and creates a structure which can be easily plotted.

Since I forgot to attach the worksheet at the time, I have now done so now.



View in thread

6 replies

Werner_E
Werner_E25-Diamond IAnswer
25-Diamond I
August 26, 2022

In this answer

https://community.ptc.com/t5/Mathcad/Plot-the-center-of-a-sphere-with-4-points/m-p/814821/highlight/true#M202262

I showed how to calculate all four points of contact (in German: "Berührpunkt").

To get the point you are looking for you would call "Berührpunkt(A,C,D,M.i)"

The array "Berühr" calculates all four and creates a structure which can be easily plotted.

Since I forgot to attach the worksheet at the time, I have now done so now.



Translate
    lvl10720-TurquoiseAuthor
    20-Turquoise
    August 27, 2022

    Many Thanks for *.xmcd attached, Tokoro and Werner.

    Contact-Point (2).PNG

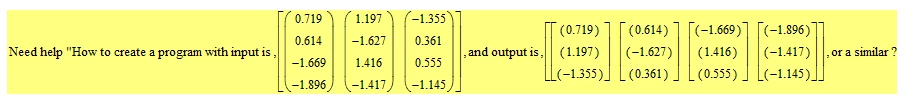

    @Werner_E , if you don't mind, I still have another related query about "create a program". Otherwise, I'll start a new Topic.

    Contact-Point (3).PNG

    Thanks again.

    Best Regards.

    Translate
    lvl10720-TurquoiseAuthor
    20-Turquoise
    August 27, 2022

    Oh! no, Werner. I'm so sorry. You already helped me about that :

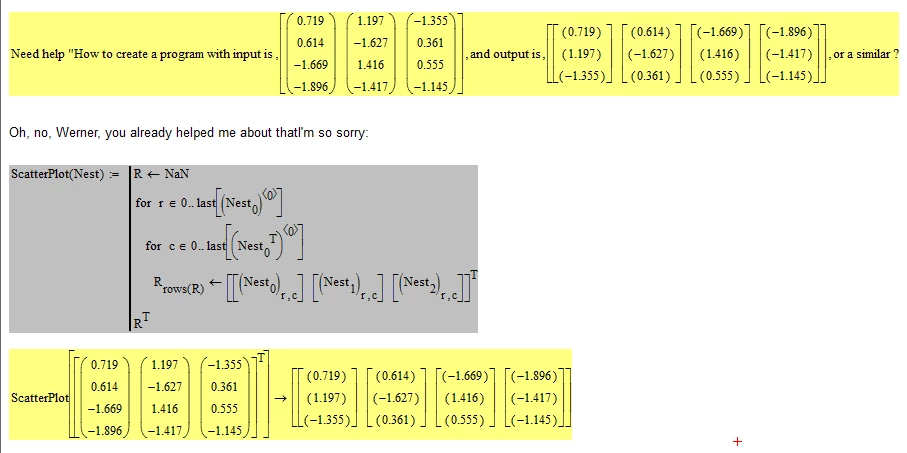

    Nest To ScatterPlot.PNG

    Thanks Again.

    Best Regards.

    Translate
    ttokoro
    ttokoro21-Topaz I
    21-Topaz I
    August 27, 2022

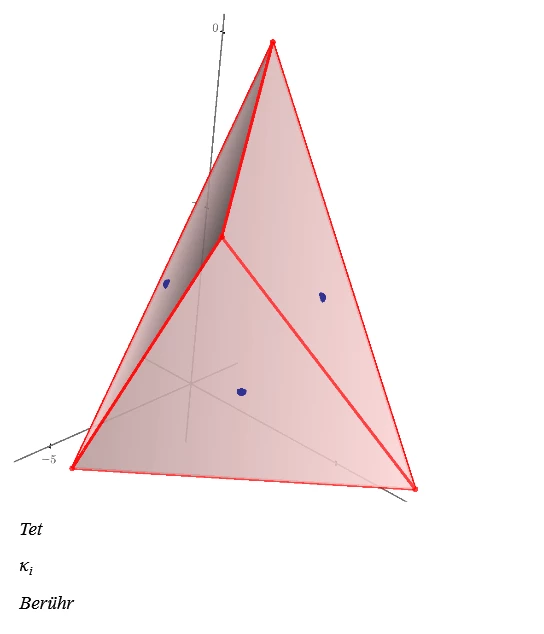

    Converted to Prime 8 the Werner_E's plot. Just after the conversion, the plot shows axis line back side of tetrahedron.


    Translate
    t.t.
      Werner_E
      Werner_E25-Diamond I
      25-Diamond I
      August 27, 2022
      @ttokoro wrote:

      Converted to Prime 8

      Won't help as @lvl107  is using good old MC15

      Translate
