Dear ptc community,



I am trying to plot a solved parameter of nonlinear equations (J) vs x (a variable that can range from 0 to 0.5. I have tried to plot it, but I got only a point rather than a continuous line plot. Can you please help me with it? I have attached my Mathcad  (7.0.0.0) file for your reference.
Thanks in advance.

Kind regards,
Tadele

Best answer by Werner_E

x hast a constant value of 0.001 and J has the constant value 0.00001695 calculated by the solve block.

So when you plot J over G you are asking Prime to plot the single point (0.0001 / 0.00001695) and that is what you get.

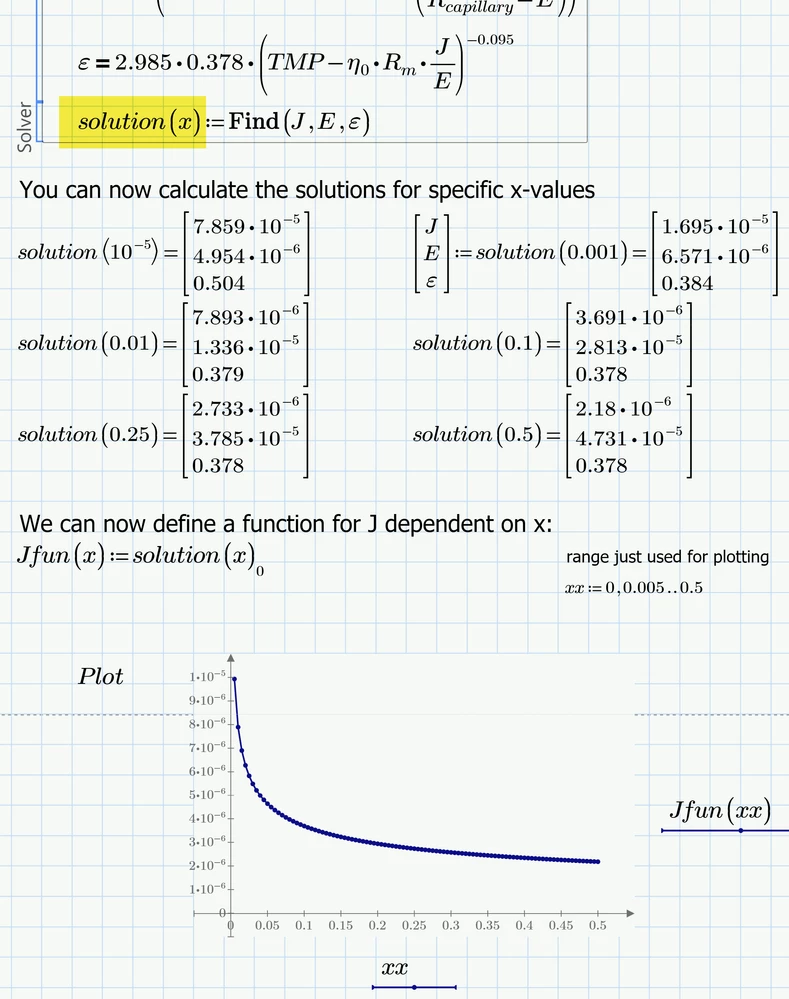

If you want to vary the value of x you have to setup the solve block as a function of x and then define a function for J.


The calculation may take some time as for each x-value (with the range for xx i used that's 101 values) the solve block has to be evaluated.

You may consider setting CTOL to a more sensible larger value - IMHO 10^-10 may be too small.



1 reply

W
Werner_E25-Diamond IAnswer
25-Diamond I
December 5, 2025

x hast a constant value of 0.001 and J has the constant value 0.00001695 calculated by the solve block.

So when you plot J over G you are asking Prime to plot the single point (0.0001 / 0.00001695) and that is what you get.



If you want to vary the value of x you have to setup the solve block as a function of x and then define a function for J.


The calculation may take some time as for each x-value (with the range for xx i used that's 101 values) the solve block has to be evaluated.

You may consider setting CTOL to a more sensible larger value - IMHO 10^-10 may be too small.



    L
    Lenin10-MarbleAuthor
    10-Marble
    December 5, 2025

    Thank you very much, Werner.
    It works perfectly for the plot. I can now also plot epsilon as a function of x, using the way you showed me.

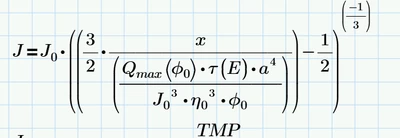

    Just one related question I was trying to replace this equation in the constraint part of the solver (first equation for J)

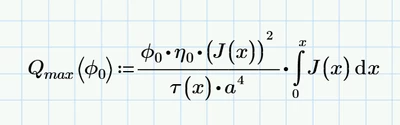

    with the equation below which I can't rewrite in a form of J(x)=...as J(x) is found in both the numerator as a form of J(X)^2 and in the integral J(x)dx form 0 to x. Is there a way to do this which you can help me. I even can't start it. I will help if you/or any other kind person have any idea.


    Kind regards,

    Lenin

    W
    Werner_E25-Diamond I
    25-Diamond I
    December 5, 2025

    Thats a complete change as now (in the solve block) J is not a  constant variable but a function.

    I don't think that Prime can solve integral equations.
