Plotting a picewise function on mathcad 8

  • April 4, 2022
  • 2 replies
  • 3485 views

Hello,

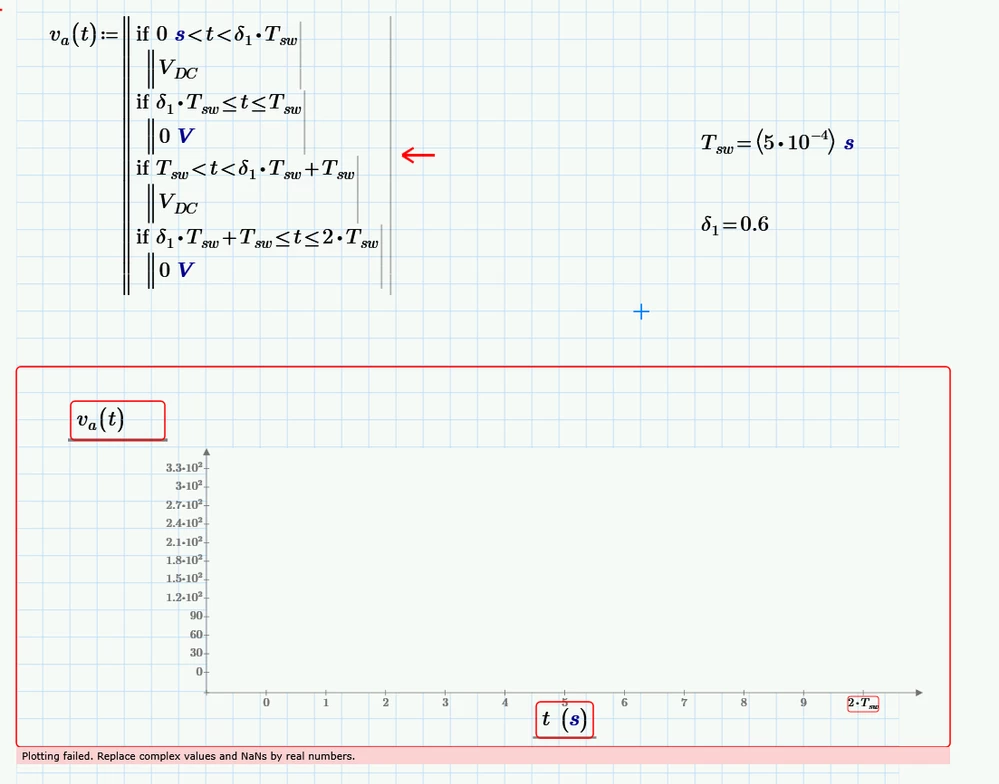

I am getting this error when trying to plot piecewise funtions. I've search trhough the coummity for may solutions but I  can't solve my problem at all.  Could you please help me?



I attatch the mdcx and a pdf of the function.

Thank you.


Best answer by StuartBruff

One cause of the problem is that not all cases are covered (eg, 0 s).  I'd have used an elseif statement rather than evaluating each condition.   In addition, I'd have also used an explicit range variable to handle t.



2022 04 04 a.png



Stuarr



2 replies

S
StuartBruff23-Emerald VAnswer
23-Emerald V
April 4, 2022

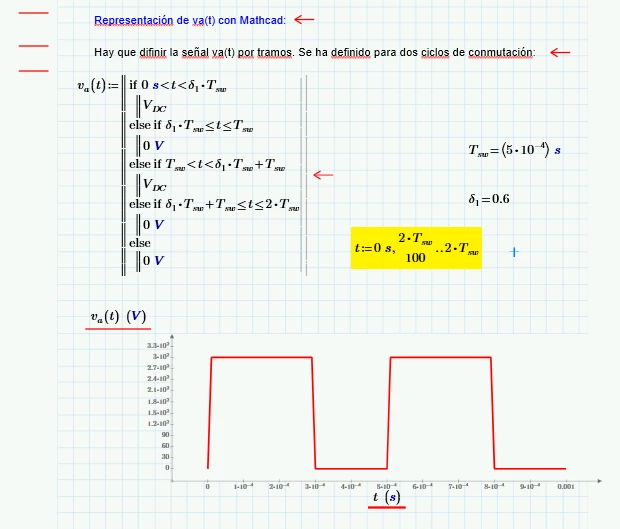

One cause of the problem is that not all cases are covered (eg, 0 s).  I'd have used an elseif statement rather than evaluating each condition.   In addition, I'd have also used an explicit range variable to handle t.



2022 04 04 a.png



Stuarr



    R
    r_solsot091-VisitorAuthor
    1-Visitor
    April 5, 2022

    Exellent. This worked out for me. I was trying something similar, it seams I was missing 2Tsw/100 when defining t.

    Many thanks Stuart

    W
    Werner_E25-Diamond I
    25-Diamond I
    April 4, 2022

    Actually Prime isn't as good in dealing with units as we often would like it to be - especially when it comes to plotting.

    Primes quickplot feature only works unitless.

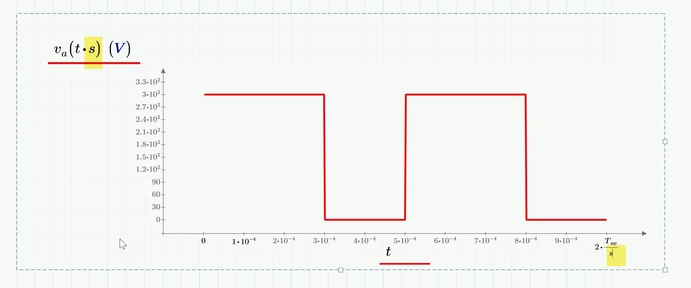

    One way (not preferred) is to make the values unitless:

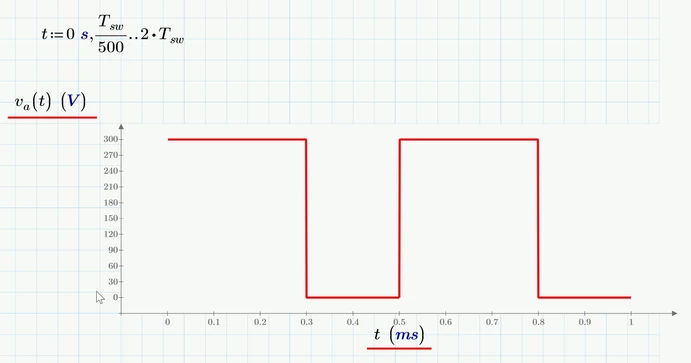

    The preferred way is, as Stuart already had shown, to define a range variable for plotting. You can delete the end values on the axis as Prime will chose them appropriately itself. This also enables you to chose different units like the "ms"  for the abscissa values in the following screenshot






      W
      Werner_E25-Diamond I
      25-Diamond I
      April 4, 2022

      Afterthought

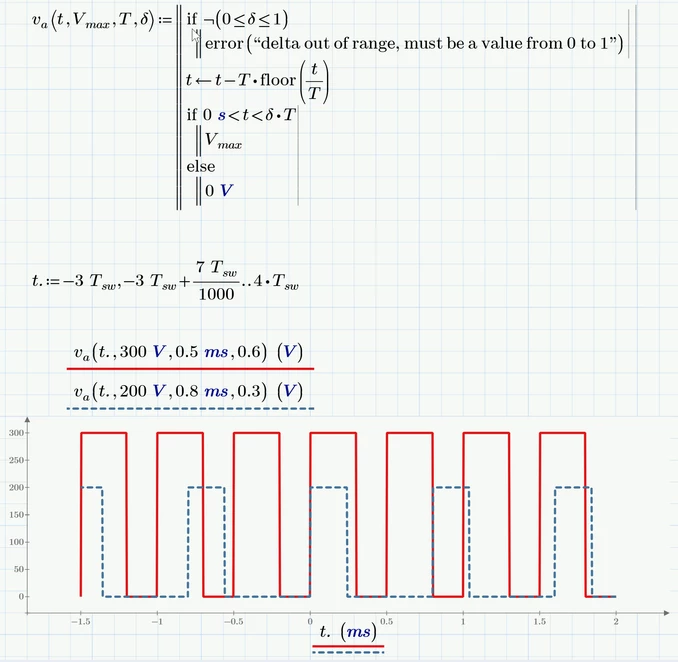

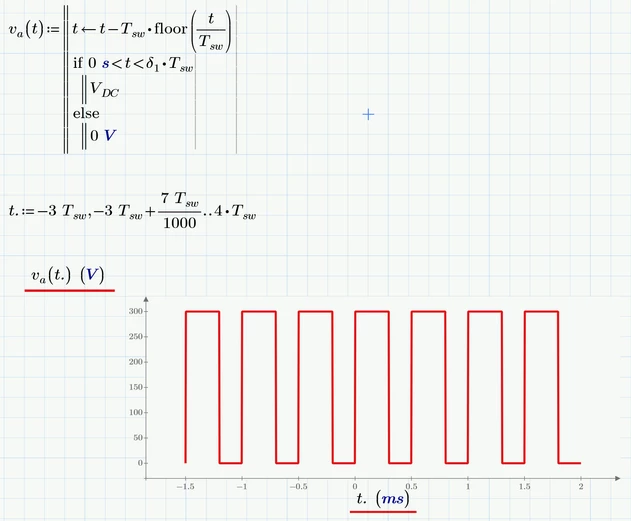

      Here is a simpler way of dealing with the periodicity of the signal




      It might also make sense making delta, V.max and T arguments of the function




        S
        StuartBruff23-Emerald V
        23-Emerald V
        April 5, 2022

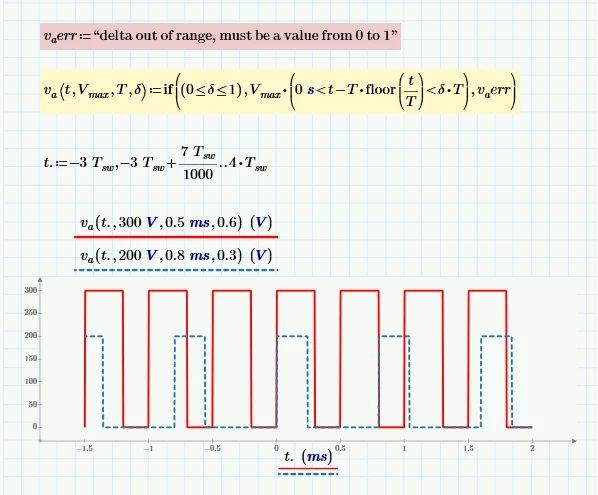

        And if all you have is Express 7, or want to try for the daily obfuscation prize, ...



        2022 04 05 b.png



        Stuart
