Plotting/calculating transfer functions

  • March 26, 2015
  • 1 reply
  • 48368 views

Hi,

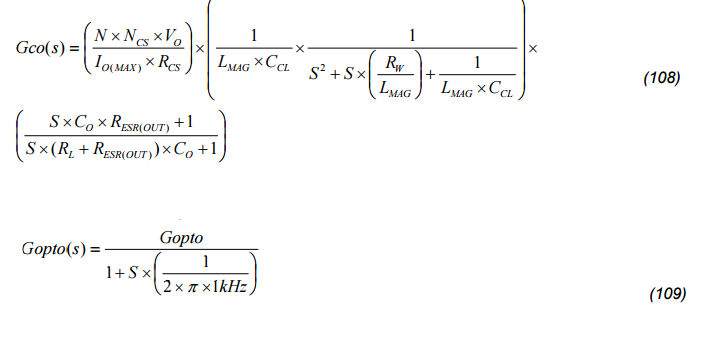

I am fairly new to Mathcad and I am trying to do the following from the data sheet. I need to make both of these plots and haven't got a clue where to start. If anyone can help it would be REALLY appreciated.


plotting needed.PNG

plotting needed2.PNG

1 reply

L
lbowman1-VisitorAuthor
1-Visitor
March 26, 2015

Here is what I have tried so far

A
AndyWesterman12-Amethyst
12-Amethyst
March 26, 2015

Here's a MC 15 file that I have for error amplifier gain.

I tried translating it to Prime, but I only have P2 & it doesn't work...

You can try translation to P3 & see if there is an improvement.

The main problem is that I pass the bode program a function reference & P2 doesn't appear to support that.

It should be possible to work around this, the bode function was mainly to fix the plot at 0°/360° transitions

hope it helps.

regards

Andy

PS: If you get it working, can you let me have a copy?

A
astevenson-21-Visitor
1-Visitor
August 18, 2015

Hi Andy,

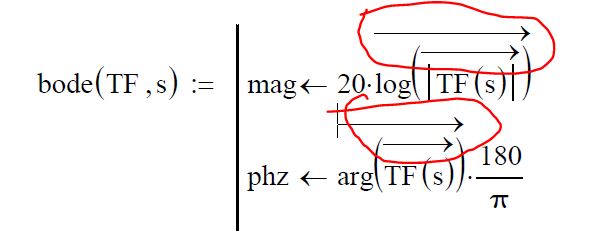

Andy here. In your excellent Amplifier Gain file, it's not clear to me what the nested vectorization inside the bode function accomplishes. When I eliminate the outer vectorization from your bode program, the output does not change. Is there something esoteric about the outer vectorization that this neophyte is missing.
