Plotting failed for Dirac Delta (Unit Impulse) Function. Why?

  • April 19, 2023
  • 1 reply
  • 5454 views

Hello,

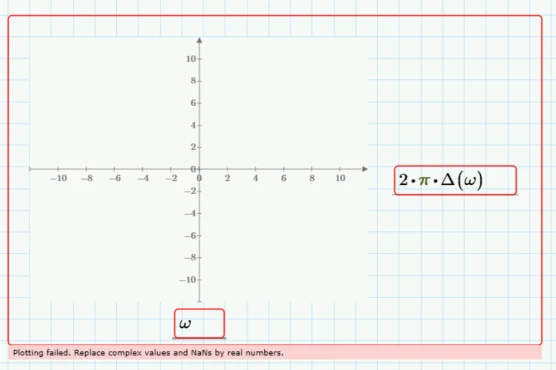

Do I need to define the dirac delta (unit impulse) function separately to be able to use (plot) it?



Mathcad Prime 8 file attached.





Best answer by ttokoro

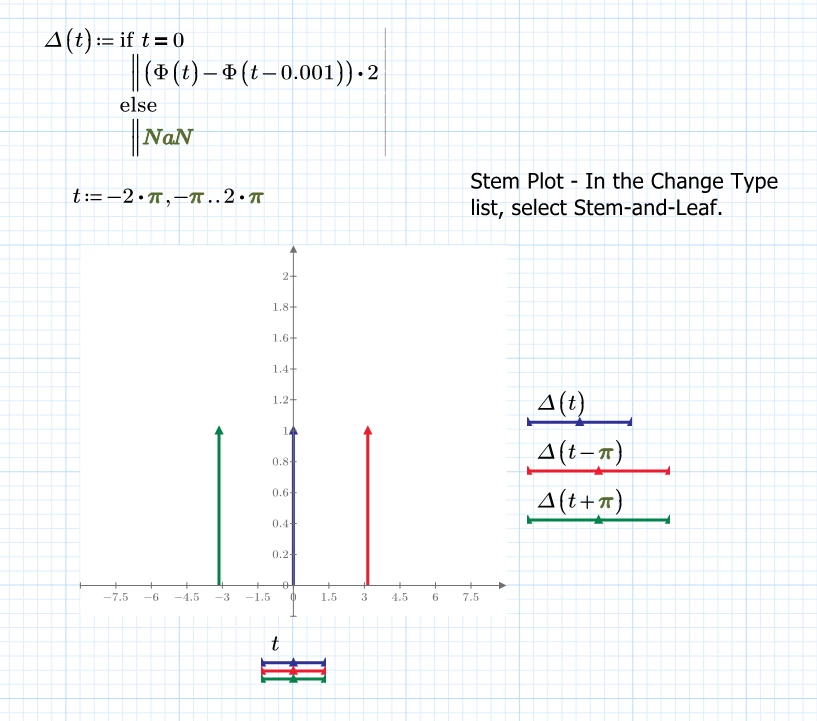

Change plot type as below.


1 reply

-
-MFra-21-Topaz II
21-Topaz II
April 19, 2023

The Dirac impulse has infinite amplitude and infinitesimal width. You can never make a graph of it. You can make some approximations, for example with a rectangular impulse of amplitude 1/ε and width ε so that the area of the impulse is always unitary.  with ε small as desired.

C
Cornel19-TanzaniteAuthor
19-Tanzanite
April 19, 2023

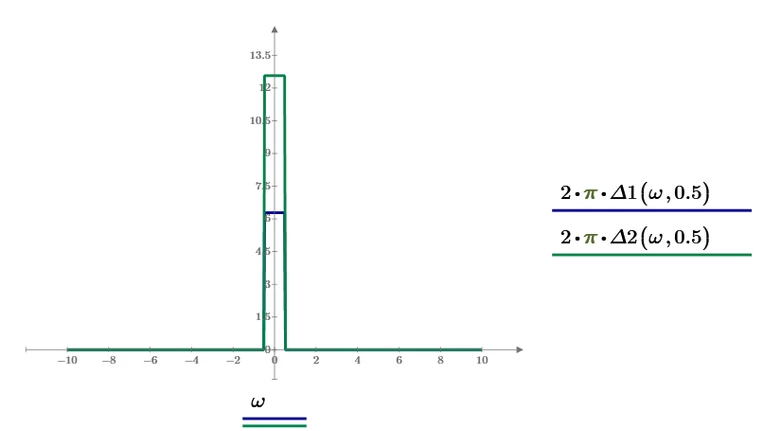

Which is more correct to use between delta1 and delta2 function implementations?
















C
Cornel19-TanzaniteAuthor
19-Tanzanite
April 19, 2023

But then...I do not know if I will can evaluate numerically further with this functions defined above.






Which should have the value of 1, right?
