Plotting failed. Replace complex values and NaN by real numbers.

  • February 22, 2022
  • 1 reply
  • 1771 views

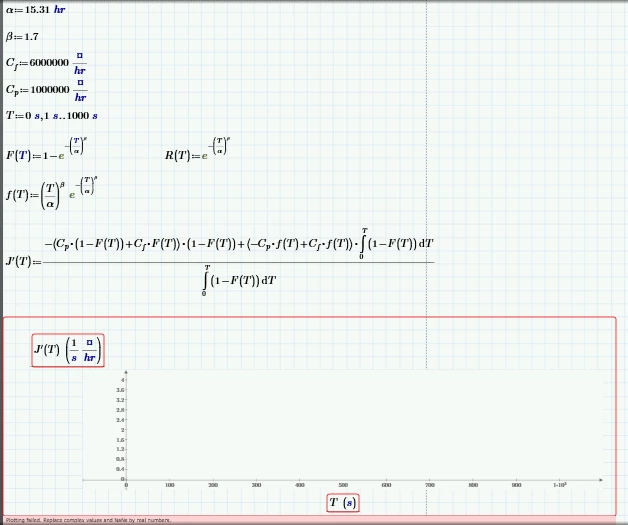

I have an MatchCAD Prime issues. Plotting the equation in MatchCAD Prime 7.0 is not working. There is notification like this "Plotting failed. Replace complex values and NaN by real numbers".

soal no 2.PNG

Best answer by terryhendicott

Hi,

Change the following line to match units.


You get a better graph with the chart component.


Cheers

Terry

1 reply

T
21-Topaz II
terryhendicott21-Topaz IIAnswer
21-Topaz II
February 22, 2022

Hi,

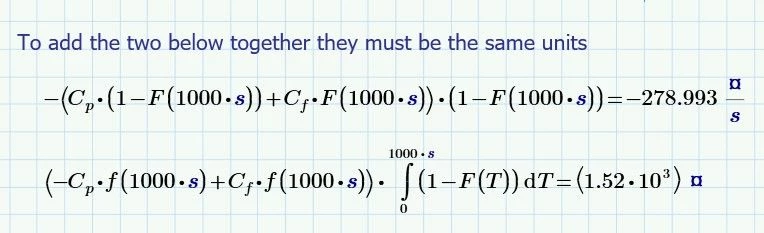

Change the following line to match units.

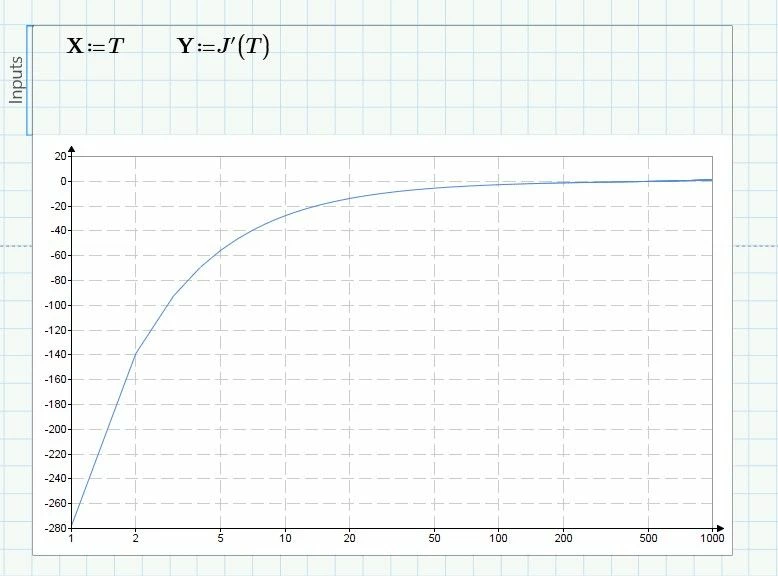

You get a better graph with the chart component.


Cheers

Terry

    I
    IR_102166351-VisitorAuthor
    1-Visitor
    February 22, 2022

    Thank You. Btw, Why do we have to include the letter "s" here?




    T
    21-Topaz II
    terryhendicott21-Topaz II
    21-Topaz II
    February 22, 2022

    Hi,

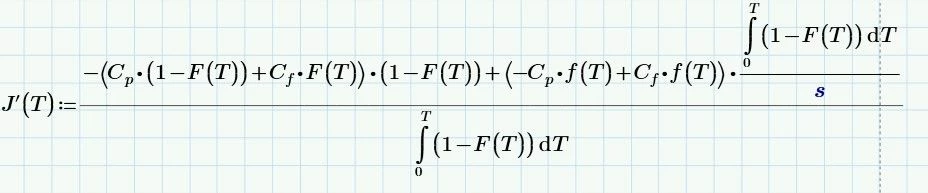

    The "s" is the unit of seconds.  For unit consistency you need to divide the second term by seconds


    Cheers

    Terry
