Plotting failed. Replace complex values and NaN by real numbers.

Hello, Sir

My costumer have the problem of the mathcad, and I don't know how to solve it.

Is there

Fred_KohlheppAnswer
23-Emerald I
November 29, 2019

I agree with Luc and Werner (below) that Prime will run this sheet.

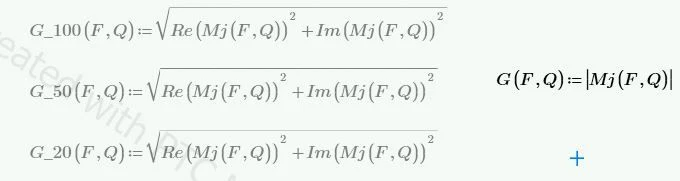

The one you posted had obviously been converted from Mathcad 15 (all the red arrows are a giveaway.)  I have Prime Express, and version 6.0 had no trouble until I got to the definitions of the gain; then I was told that "Im" and "Re" are premium functions.  I was able to sneak around this,


and get the same plot as Werner

View in thread

8 replies

Fred_Kohlhepp23-Emerald I
23-Emerald I
November 29, 2019

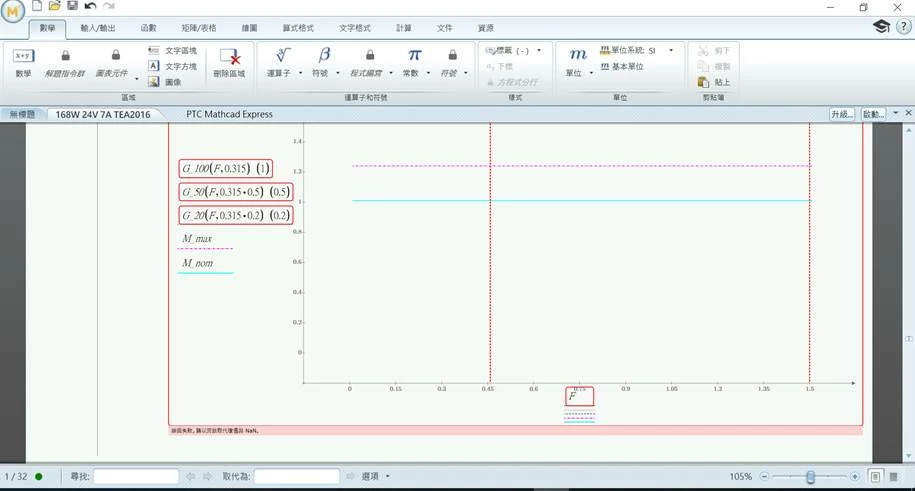

For  whatever reason, the plot has numbers in the units placeholder locations.  Try removing those, leaving only blank placeholders.

Translate
    Haydena14-AlexandriteAuthor
    14-Alexandrite
    November 29, 2019

    Dear Fred

    Thank you for answering.

    And the other question is,

    my customer says that file can carry out with mathcad 15, but it's failed with mathcad prime 5.0

    Could you help me sort this out, please?



    Translate
    LucMeekes23-Emerald IV
    23-Emerald IV
    November 29, 2019

    Mathcad Prime is a completely different beast compared to Mathcad (such as 15).

    If you have a license for (any version of) Mathcad Prime, you are entitled to install Mathcad 15 using that very same license file (First install Prime, then Mathcad 15).

    Once you have that (and you HAVE to have both installed!), you can convert a Mathcad 15 sheet to Prime.



    Note that after conversion the sheet is not guaranteed to work (the same way as it did in Mathcad 15), but problems generally only occur when advanced Mathcad 15 functionality is used...



    Success!
    Luc

    P.S. There's no tool to convert a Prime sheet to Mathcad 15 format.

    Translate
      Werner_E
      Werner_E25-Diamond I
      25-Diamond I
      November 29, 2019

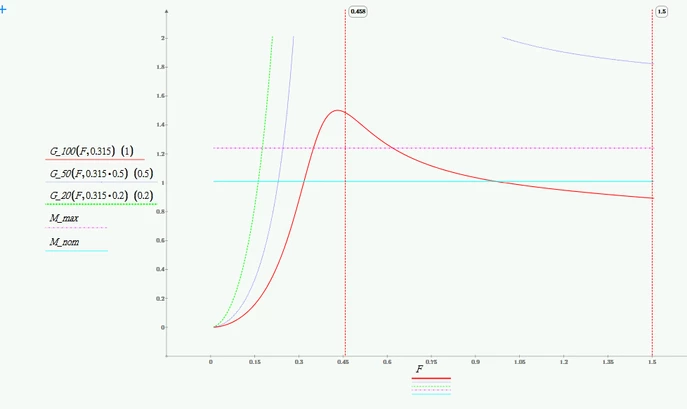

      I see the error when I open the file (last state before saving) but when I let the sheet recalculate I get a plot without any errors. I tried with Prime 6 and Prime 5 and both worked OK.


      Translate
        Haydena14-AlexandriteAuthor
        14-Alexandrite
        December 2, 2019

        I try to recalculate the sheet, but it's still have the error....

        Translate
