Plotting failed. Replace complex values and NaNs by real numbers.

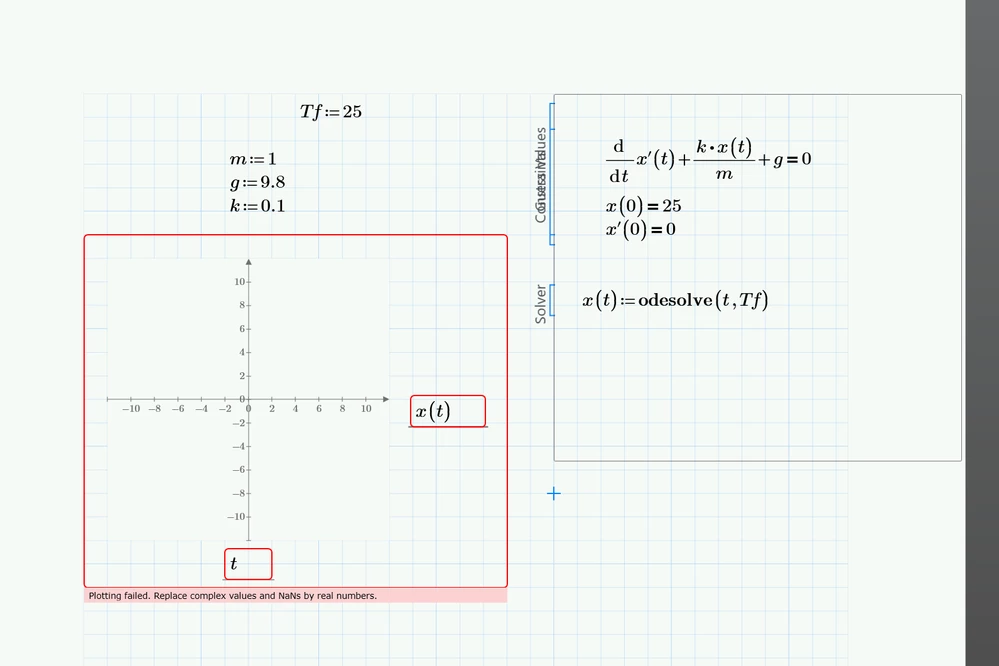

Hi, I'm fairly new to Mathcad. Trying to plot the solution to a differential equation but I can't seem to get it working. I've attached the necessary files.










Werner_E
Werner_EAnswer
25-Diamond I
January 15, 2019

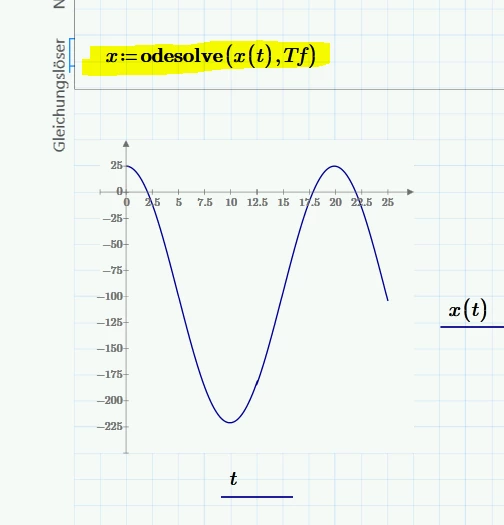

You used a wrong syntax for odesolve!


View in thread

9 replies

Werner_E
Werner_E25-Diamond IAnswer
25-Diamond I
January 15, 2019

You used a wrong syntax for odesolve!


Translate
    christosk921-VisitorAuthor
    1-Visitor
    January 15, 2019

    Hi,



    Sorry to bother you again, whenever I raise x(t) to the 2nd power, so: x(t)^2 the odesolver breaks. It gives me: Unkown error.



    Any idea how to fix this?
    heres the code, I changed x to v.

    Translate
    Werner_E
    Werner_E25-Diamond I
    25-Diamond I
    January 15, 2019

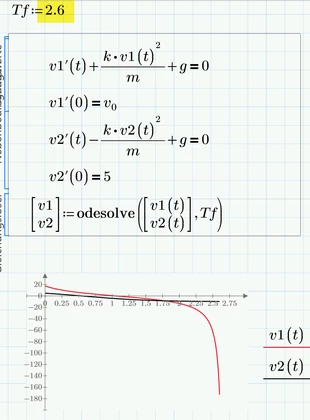

    As v1 and v2 are independent from each other I would rather use a separate solve block for each of them.

    But it should work the way you has done, too.

    The problem is the equation for v1. when t increases, v1(t) decreases dramatically and Primes algorithm would fails because it does not converge,

    You may look for the equation if its correct.

    Only solution so far seems to be to set Tf to a lower value. Tf=2.65 seems to be the largest value possible.
