Hi everyone,

previously I asked how to plot many arrays in one plot and I got my answer. Now I'm trying to plot the results that came out from those arrays .. however it shows some errors ...

my previous question was in this thread >


Solved: Re: Defining the layers - PTC Community



Now, I'm trying to use  the same steps  but it show this error


What I'm trying to do is to plot the results of Rb each array separately.. so I have 15

trace drawn

Rb is the horizontal axis and ztips is the vertical


Thanks in advance

Best answer by YA_10963798

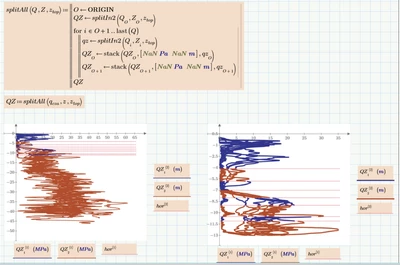

I tried to modify the plot .. I got these two strange results :

This is wrong because it sums up all the 15 vectors together and I need them separatly.

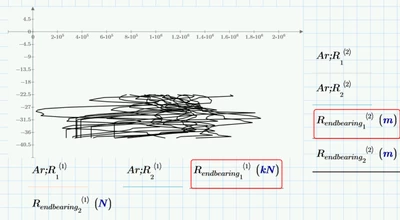

And I got also this crazy plot




It is totally wrong and the R should start from -17 m not -22 m.... in each vector R should be gradually getting bigger not smaller

1 reply

Y
YA_1096379814-AlexandriteAuthorAnswer
14-Alexandrite
December 30, 2024

I tried to modify the plot .. I got these two strange results :

This is wrong because it sums up all the 15 vectors together and I need them separatly.


And I got also this crazy plot




It is totally wrong and the R should start from -17 m not -22 m.... in each vector R should be gradually getting bigger not smaller
