Prime 8.0 How can I plot a circle

  • August 22, 2023
  • 3 replies
  • 9307 views

How can I plot a circle in the X-Y plane, only knowing the radius and location of the circle center?

I have Mathcad Prime 8.0.

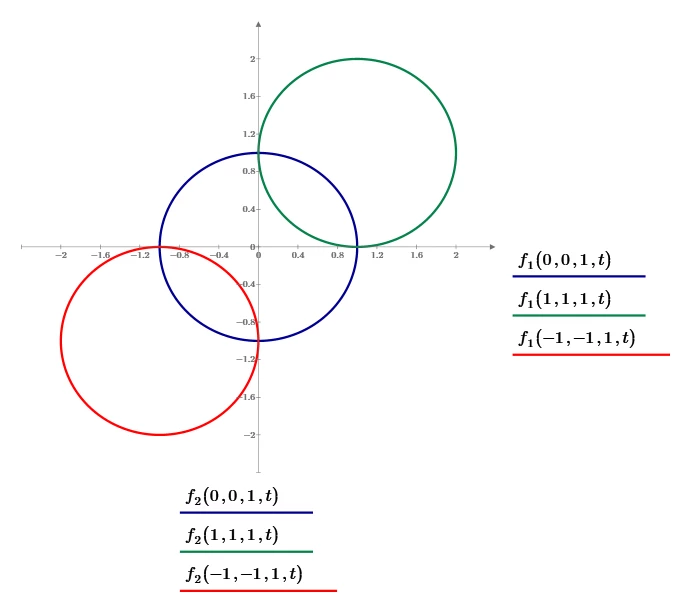

Best answer by Cornel








3 replies

C
Cornel19-TanzaniteAnswer
19-Tanzanite
August 22, 2023








    S
    Snowshoeman13-AquamarineAuthor
    13-Aquamarine
    August 22, 2023

    Thank you!  That was easy.

    S
    Snowshoeman13-AquamarineAuthor
    13-Aquamarine
    August 22, 2023

    One more request.  Is there a way to modify the above where there is a circle intercept at (0,0) ?



    Thanks for your help.

    W
    Werner_E25-Diamond I
    25-Diamond I
    August 22, 2023
    @Snowshoeman wrote:

    One more request.  Is there a way to modify the above where there is a circle intercept at (0,0) ?



    Thanks for your help.

    I am not sure what you mean. If you know the center of the circle and if you demand that (0,0) should be a point of the circles circumference, you sure are able to calculate the circle radius and so can use the very same approach which was shown to you.

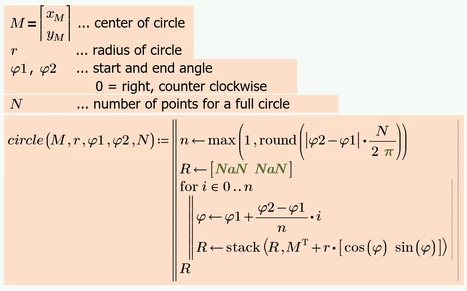

    Here is a circle function I often use when I have to draw a circle.


    You may use it to draw partial circles

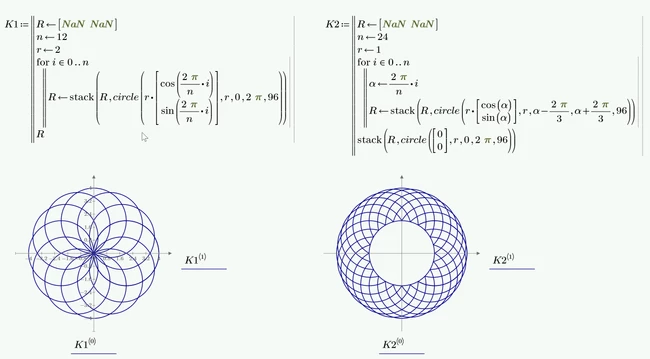

    to draw regular polygons


    or to play around and create mandala like pics




    Prime 9 worksheet attached





    ttokoro
    21-Topaz I
    ttokoro21-Topaz I
    21-Topaz I
    August 25, 2023



    t.t.
    W
    Werner_E25-Diamond I
    25-Diamond I
    August 25, 2023

    Nice, but why only circles parallel to the xy-plane?

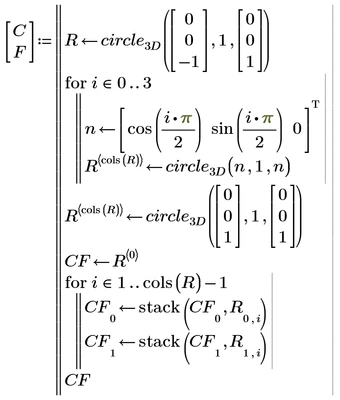

    Werner_E_2-1692978579387.png Werner_E_1-1692977385407.png





      W
      Werner_E25-Diamond I
      25-Diamond I
      August 25, 2023

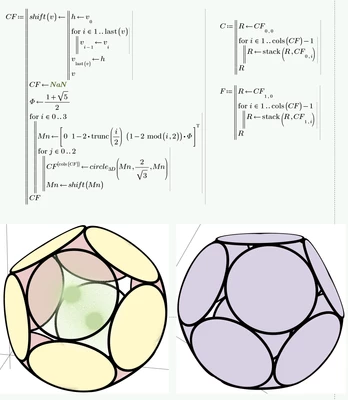

      Playing around with the inscribed circles of the surfaces of a dodecahedron
