Requesting help to plot with units

I am back to use MathCAD. Doing with MathCAD Prime 6. I am taking my own self-faced training.

I have a hard time to get this plotting done. I request someone help me.

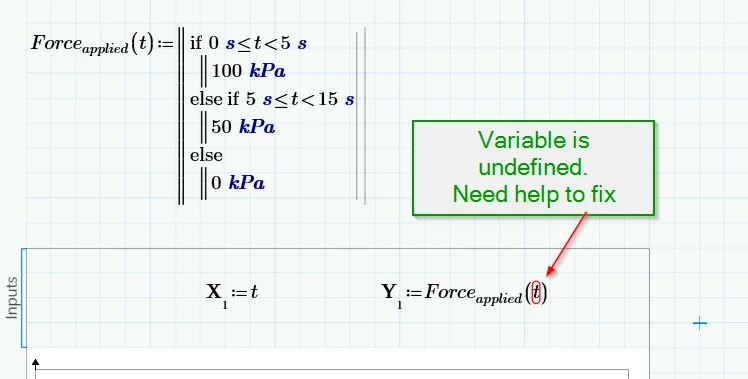

Sample attached. Pl. help. Thanks.



2020-04-20 14_12_34-Window.png



DJFAnswer
16-Pearl
April 20, 2020

You need to define t with a range variable



t:=0s,0.1s...30s

View in thread

4 replies

LucMeekes23-Emerald IV
23-Emerald IV
April 20, 2020

Try it with the proven plotting facility instead of a badly integrated third-party add-on:


See attachment.



Success!
Luc

Translate
    Werner_E
    Werner_E25-Diamond I
    25-Diamond I
    April 20, 2020
    @LucMeekes wrote:

    Try it with the proven plotting facility instead of a badly integrated third-party add-on:

    I would not call the native plotting facility in Prime to be proven, but I sure second that that third-party diagram component is very badly integrated and is more of an annoying foreign object in Prime than a valuable welcome addition.

    Translate
    DJF16-PearlAnswer
    16-Pearl
    April 20, 2020

    You need to define t with a range variable



    t:=0s,0.1s...30s

    Translate
      RWickrama10-MarbleAuthor
      10-Marble
      April 20, 2020

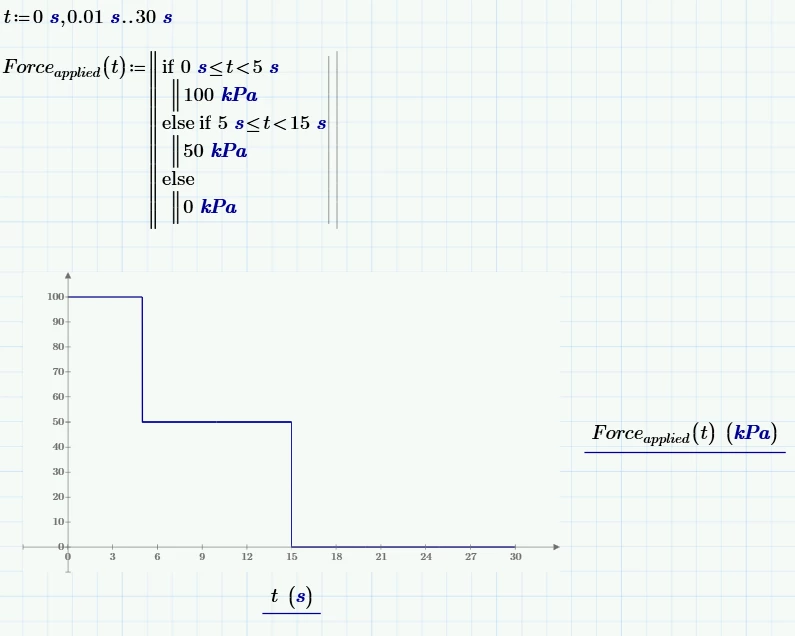

      Great help. Thanks a lot.
