Rotate a quadrilateral in 3-D ?

Hi Everyone,
From the following :

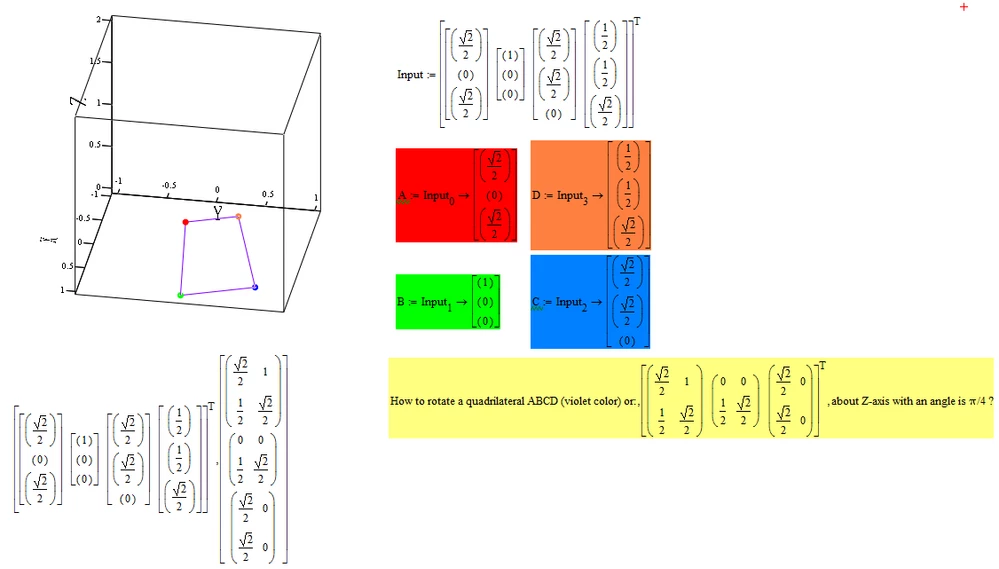

Rotate 3-D (1).PNG

How to Rotate a quadrilateral and Plot its image on the Graph ?
Thanks in advance.
Best Regards.



ttokoro
ttokoroAnswer
21-Topaz I
August 29, 2022

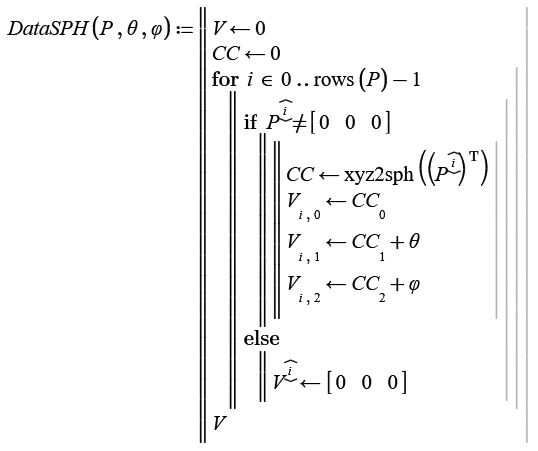

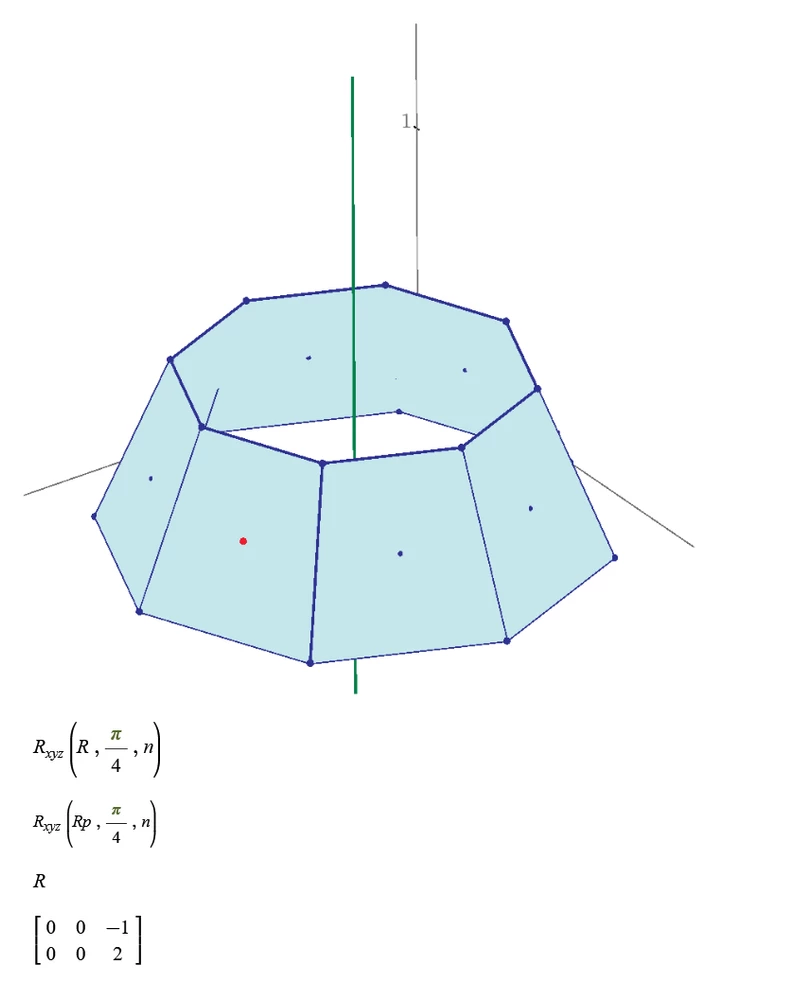

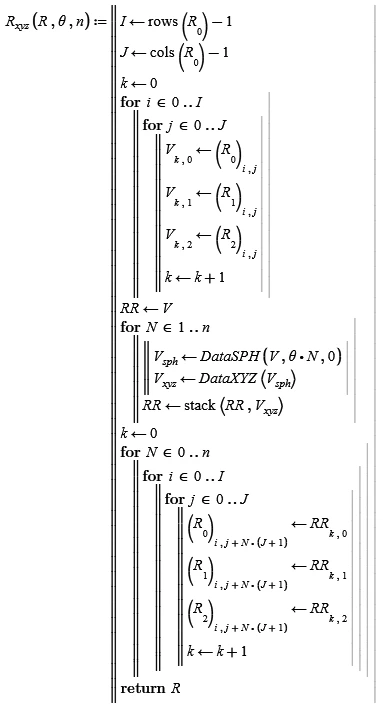

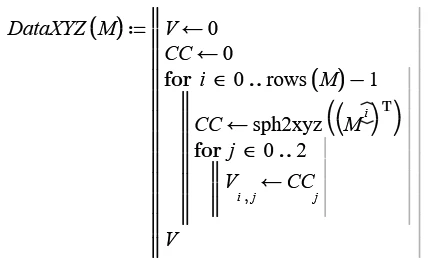

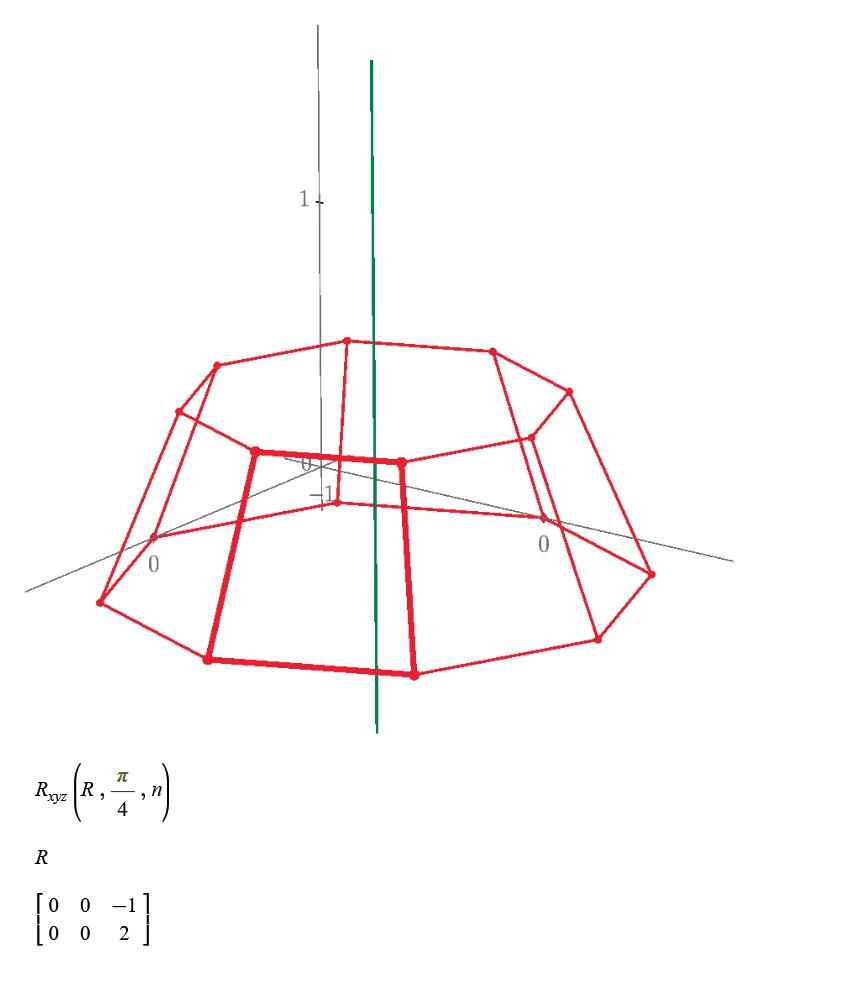

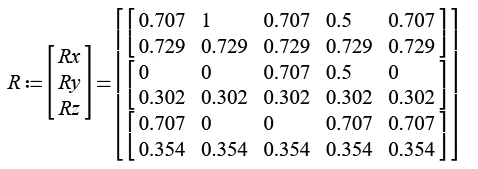

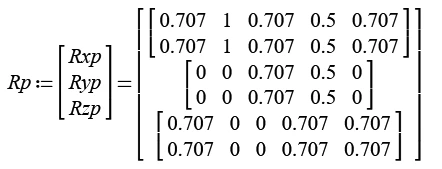

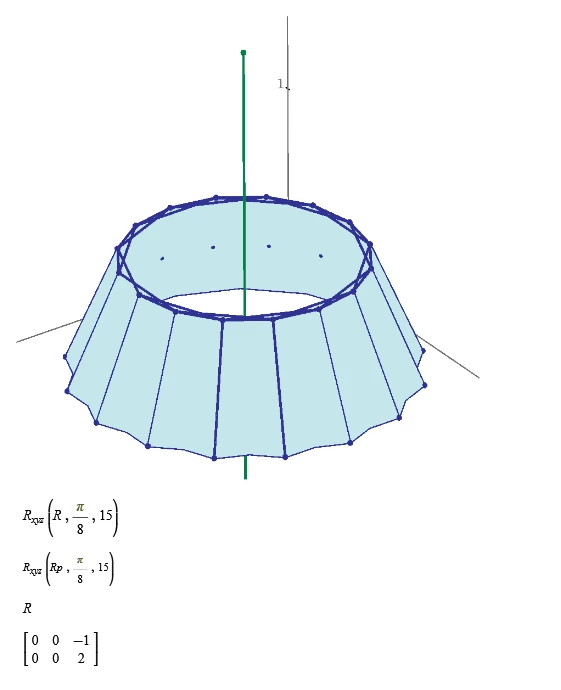

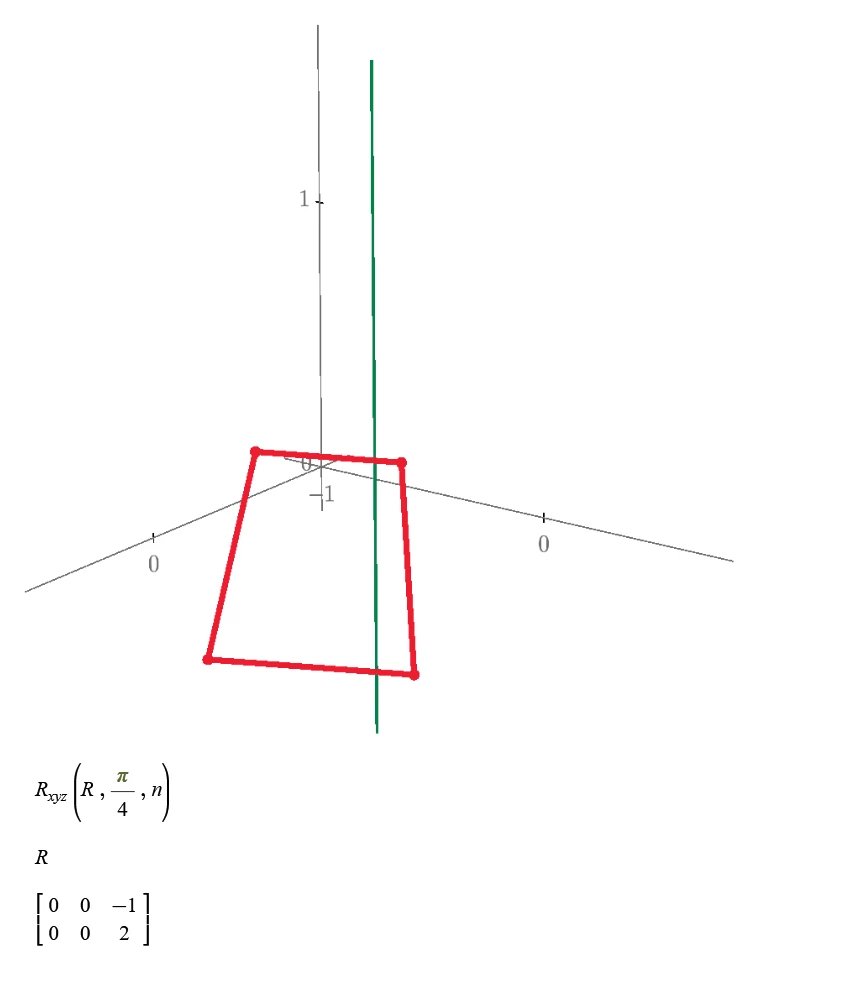

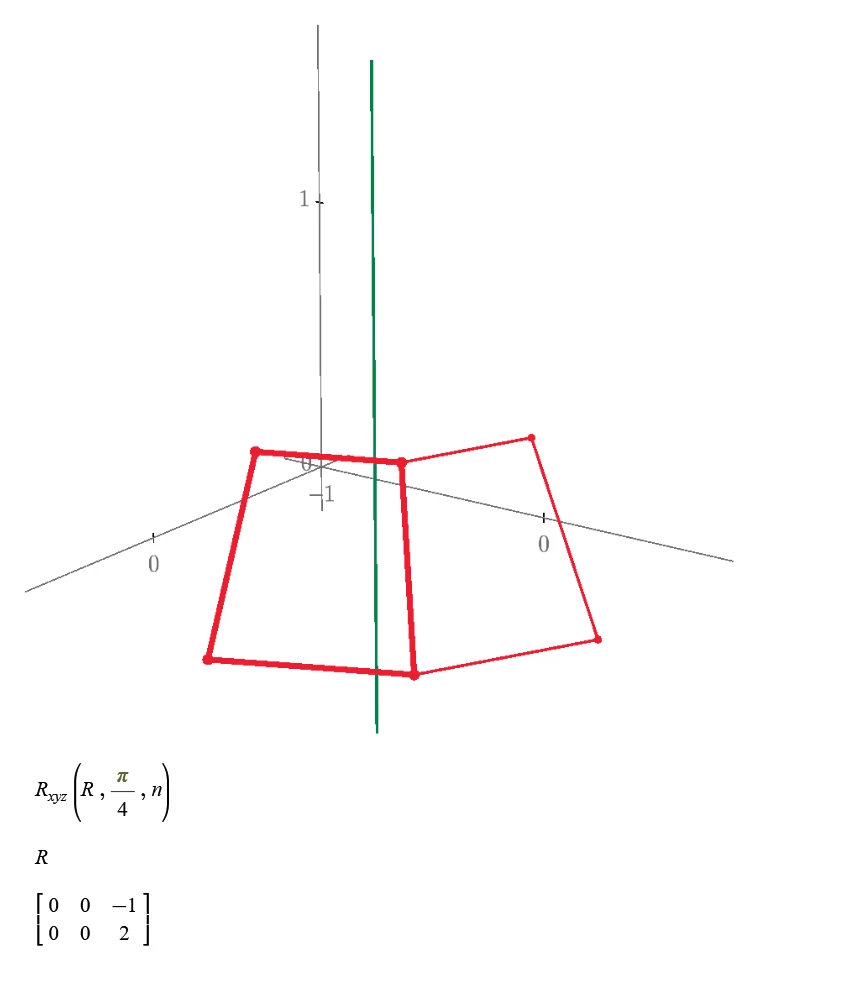

3D data format for MC15 and Prime is changed.  Prime 8 sheet attached.







t.t.
View in thread

16 replies

Werner_E
Werner_E25-Diamond I
25-Diamond I
August 28, 2022

A rotation around the z-axis can be accomplished by a multiplication with


For example


See also

https://en.wikipedia.org/wiki/Rotation_matrix#Basic_rotations

or maybe (?)

https://zh.wikipedia.org/wiki/%E6%97%8B%E8%BD%AC%E7%9F%A9%E9%98%B5#%E6%97%8B%E8%BD%AC

Translate
    terryhendicott21-Topaz II
    21-Topaz II
    August 28, 2022

    Hi,

    Rotations in 3D can also be carried out using Quaternions.

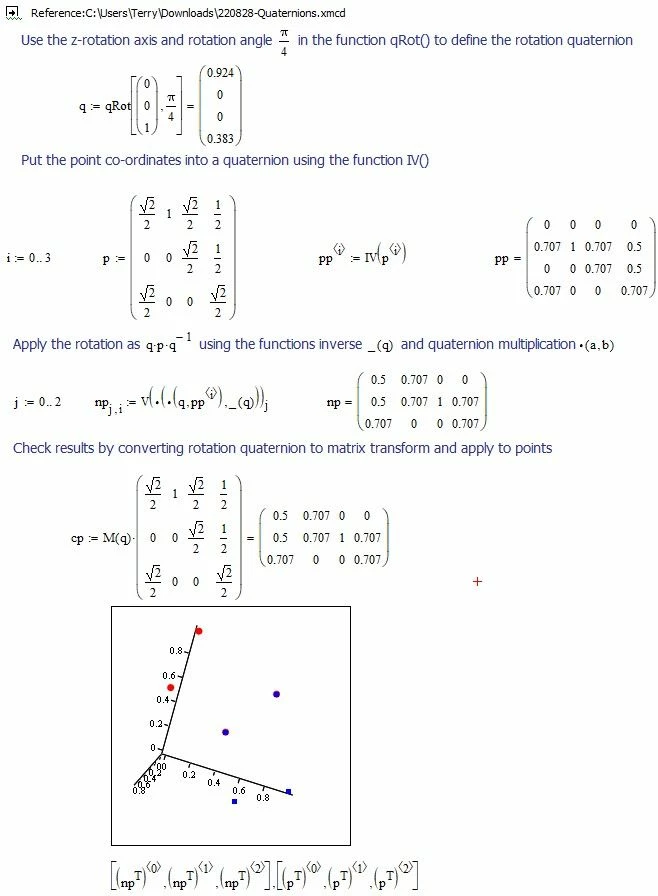

    An excellent worksheet was posted on this forum that details Quaternions, and I include it here.

    How to use the functions in the worksheet to do the rotation of the quadrilateral is also included.




    I also have Prime 8 versions of the sheets if anyone wants them.

    Cheers

    Terry







    Translate
      lvl10720-TurquoiseAuthor
      20-Turquoise
      August 30, 2022

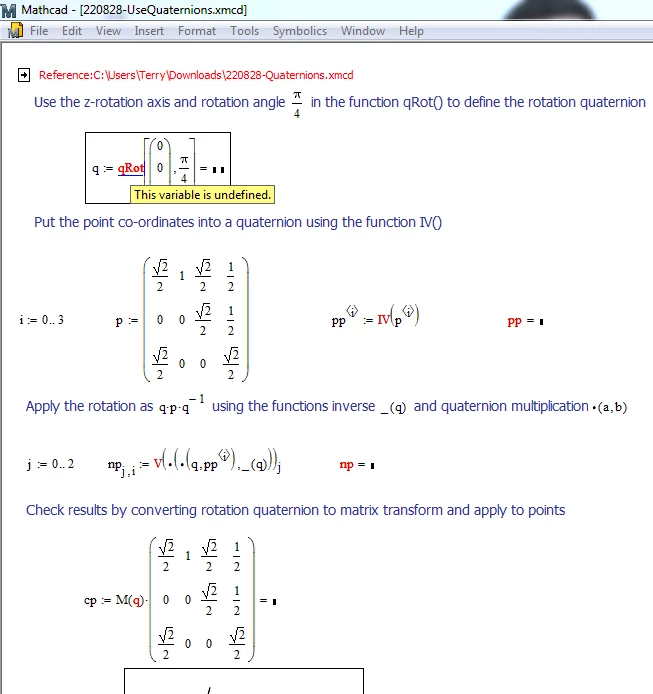

      I greately appreciate your time and help with your *.xmcd attacted. I don't the reason for as the following:

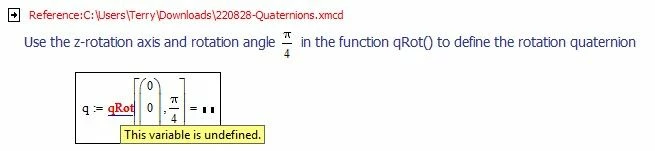

      Rotate 3-D (4).PNG

      "This variable is undefined" was shown.

      Thanks again.

      Loi.

      Translate
      terryhendicott21-Topaz II
      21-Topaz II
      August 30, 2022

      Hi,

      File location for the referenced sheet at the top of the page must be adjusted to suit your system where the file is located.

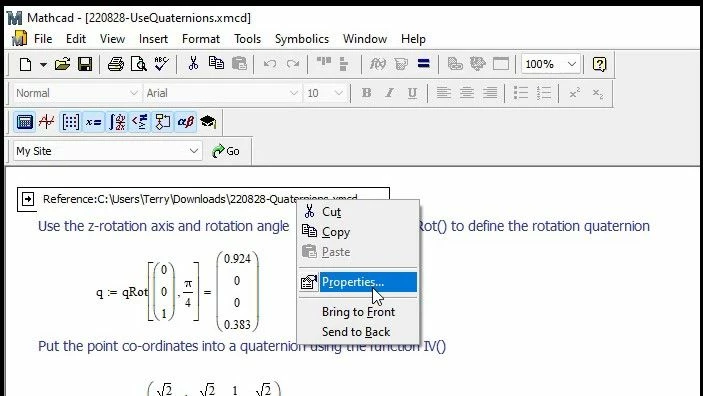

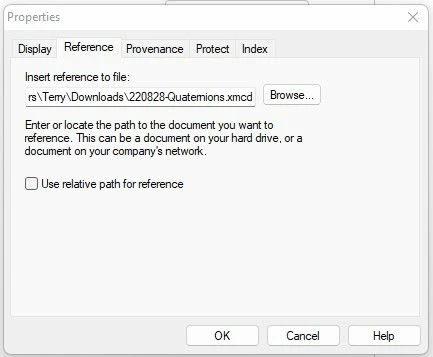

      Right click on the little arrow and you get this pop up menu and select properties


      This pops up a tabbed dialog box go to Reference Tab


      Here you can browse button to the location of the file "220828-Quaternions.xmcd" on your system and OK.

      Cheers

      Terry

      Translate
        ttokoro
        ttokoro21-Topaz I
        21-Topaz I
        August 29, 2022



        Translate
        t.t.
          lvl10720-TurquoiseAuthor
          20-Turquoise
          August 29, 2022

          Thank all of you, Werner, Terry, and Tokoro. 😊😊😊. @ttokoro Brief of explanation, say : Screen-shot of program functions... please. Query still exists, say : how to mirror a quadrilateral about the plane of X-axis_Y-axis ? (Screen-shot of program functions... please.)

          Best, Best Regards.

          Loi.

          Translate
          Werner_E
          Werner_E25-Diamond I
          25-Diamond I
          August 29, 2022
          how to mirror a quadrilateral about the plane of X-axis_Y-axis ?

          To mirror points at the xy-plane you simply change the sign of the z-coordinate for each point!
