Rotate a quadrilateral in 3-D ? (cont.)

Hi Everyone.

From the following:


    With Werner's, Terry's, and Tokoro's suggestion in thread: "Rotate a quadrilateral in 3-D ?"

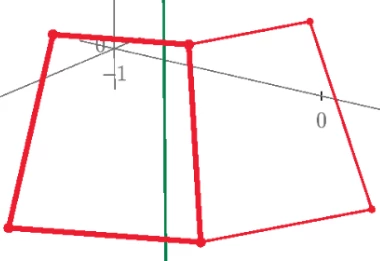

Terry's suggestion with the program function but without a plot of quadrilaterals on the Graph. And Tokoro's suggestion with the figure but without a program function! Even if having the screenshot of his program function but that have not helped much to everyone in forum:




So, now, I guess I should make a new thread, and from the following :

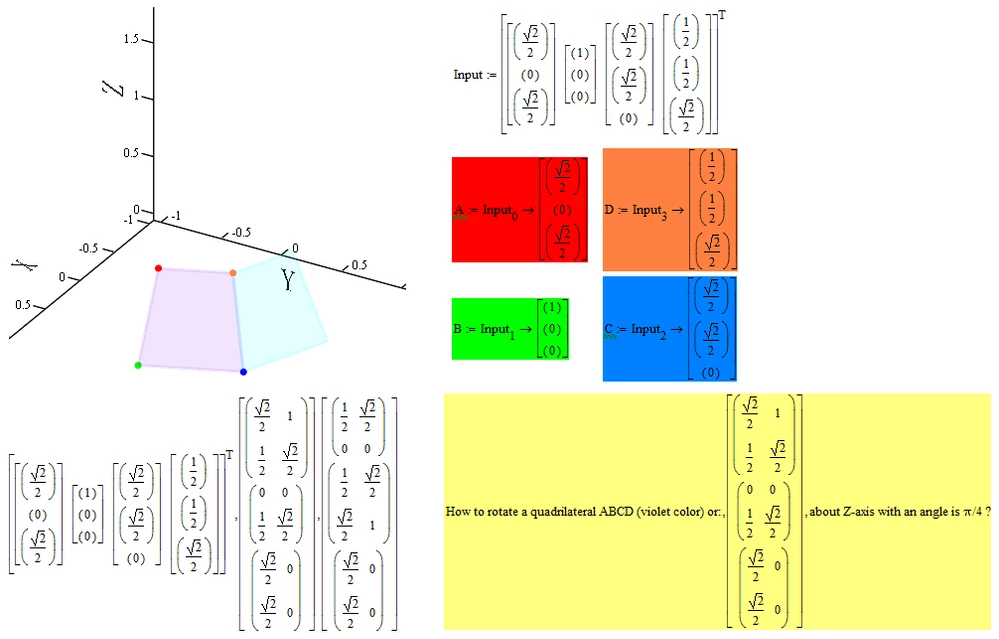

Rotate a quadrilateral (2).PNG

"How to Rotate a quadrilateral and, Plot Its Image and fill different color between two of quadrilateral on the Graph ?"
Thanks in advance for your time and help.
Best Regards.
Loi.





Werner_E
Werner_EAnswer
25-Diamond I
September 2, 2022

The question about how to rotate around the z-axis was already answered in the other thread!

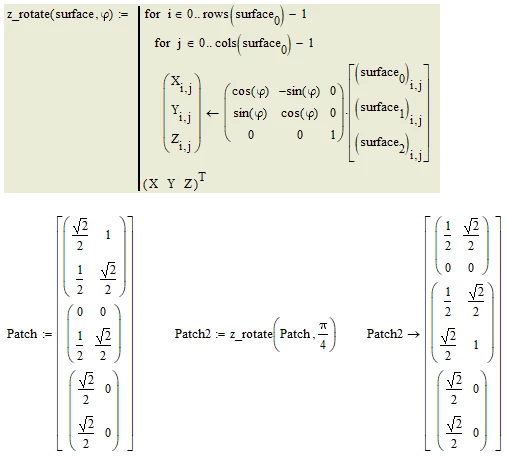

Can it be that you are simply looking for a function like the following because you don't know how to apply the solution given here

https://community.ptc.com/t5/Mathcad/Rotate-a-quadrilateral-in-3-D/m-p/815637/highlight/true#M202315

to the structure you use to plot the quadrilateral?







View in thread

7 replies

terryhendicott21-Topaz II
21-Topaz II
September 2, 2022

Hi,

The question seems to get longer with each answer?


Translate
    lvl10720-TurquoiseAuthor
    20-Turquoise
    September 2, 2022

    Hi, Terry.

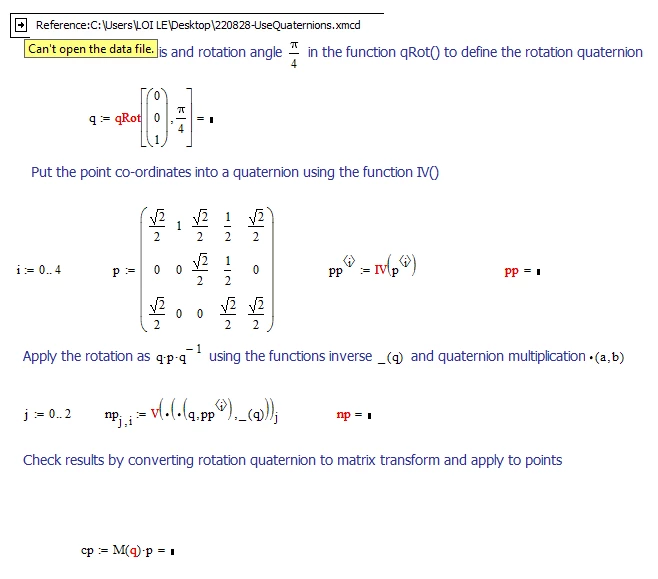

    I follow your instruction like as:

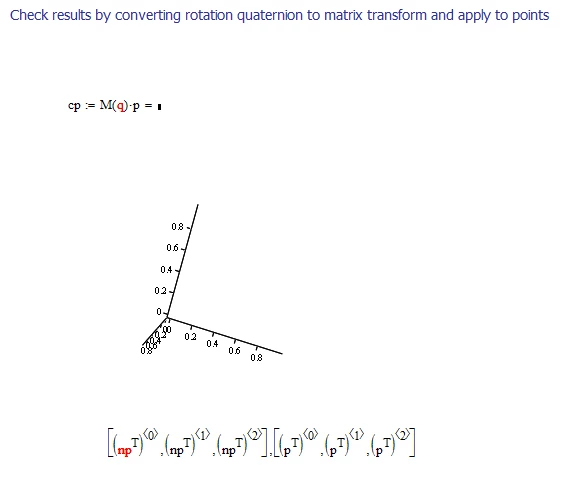

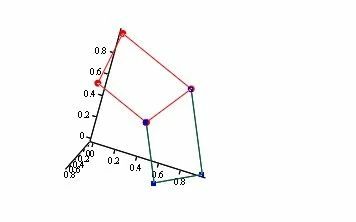

    But I still get like as:



    By the way, "How to 'Fill Surface' 2 quadrilaterals with fill different color for each one. ?"

    Best Regards.

    Translate
    terryhendicott21-Topaz II
    21-Topaz II
    September 2, 2022

    Hi,

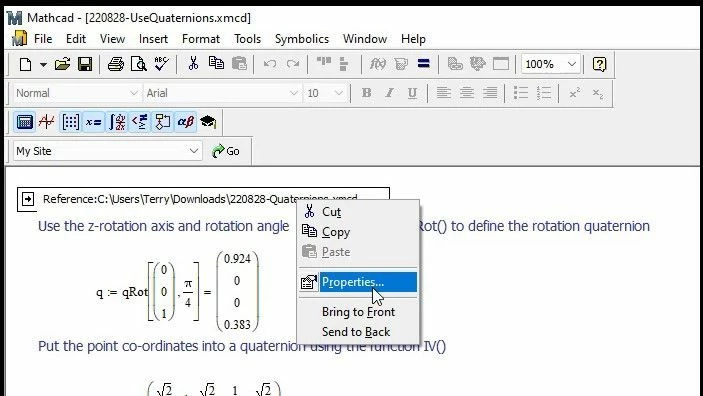

    Try referencing just the file 220828-Quaternions.xmcd not self referencing 220828-UseQuaternions.xmcd.

    You cannot put a reference to the same file as Mathcad will protest.

    Cheers

    Terry

    Translate
    Werner_E
    Werner_E25-Diamond IAnswer
    25-Diamond I
    September 2, 2022

    The question about how to rotate around the z-axis was already answered in the other thread!

    Can it be that you are simply looking for a function like the following because you don't know how to apply the solution given here

    https://community.ptc.com/t5/Mathcad/Rotate-a-quadrilateral-in-3-D/m-p/815637/highlight/true#M202315

    to the structure you use to plot the quadrilateral?







    Translate
      Werner_E
      Werner_E25-Diamond I
      25-Diamond I
      September 3, 2022

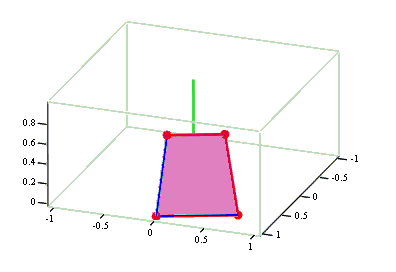

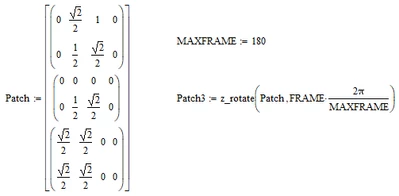

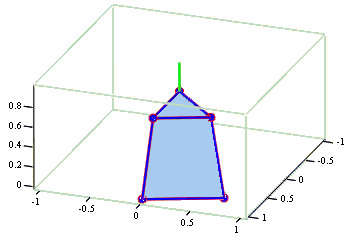

      Of course you can apply the function to any surface in the usual Mathcad structure



      Translate
