Simpel 2D vector plot

11 replies
13871 views
Translate All

I have been searching the forum for a solution to my problem and I havent found one i could use.

What im looking for is a simple way to draw a vector in a graph. Somthing like a=x,y and I would like the results to look somthing like this.

I know i can use other programs than mathcad to get the desired results but a simple way in mathcad to get the desired results would be best.

1_why-Not-xmcd.zip

Other

19-Tanzanite

Here. I can't fnd the original thread, so I'll just repost the file.

1-Visitor

Anton,

Your attached worksheet doesn't show much at all.

I would also post any worksheets in Mathcad 11 format for a wider audience.

Mike

Translate

Author

1-Visitor

Thank you I will post in Mactcad 11 the next time.

The mathcad dokument wasnt realy meant to show anything. I was just meant to show away Mathcad could show a vector. so dont mind the dokument.

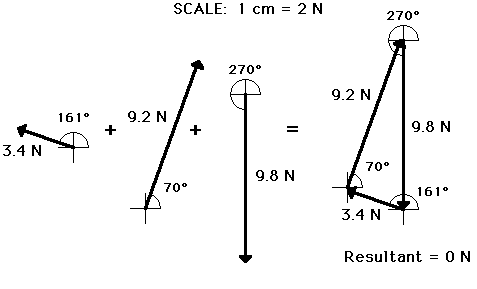

Is it possible to get mathcad to show a vector like in the pic? using a form like a=x,y?

regards

Translate

1-Visitor

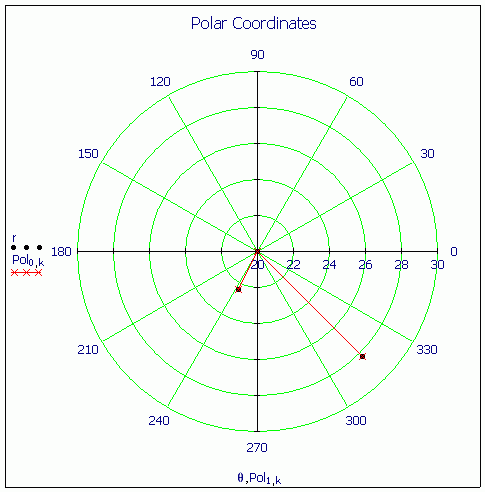

You could use a Polar plot. Would this be suitable?

Mike

Translate

Answer

19-Tanzanite

Here. I can't fnd the original thread, so I'll just repost the file.

Translate

1_Plotting-2D-Vectors---from-Tom-mcd.zip

1-Visitor

Richard Jackson wrote:
Here. I can't fnd the original thread, so I'll just repost the file.

Nice worksheet.

Will he have to manually calculate the change in the X and Y values though to take account for his angles?

Mike

Translate

19-Tanzanite

Yes, but that's just some basic geometry. The routines that actually plot the vectors with arrowheads is the hard part, and that's covered in the worksheet.

Translate

1-Visitor

For all what you want including the literals, better have a scalable graphic package. For just image , use paint.
