solving equation

Hello,

in attached mathcad 15 sheet, please scroll down to three red arrows(pg 4) where i tried to solve the equation in three different ways, but non worked. this problem can be thought of as an eigen value& eigen vector problem. i am trying to solve for the eigen vector corresponding to a certain frequency.

Thank you!

    7 replies

    RichardJ19-Tanzanite
    19-Tanzanite
    Mar 5, 2015 7:45 PM UTC

    Translate
      SFares14-AlexandriteAuthor
      14-Alexandrite
      Mar 6, 2015 1:20 AM UTC

      Hi Richard,

      what is the mistake in my setup ? How can I fix it?

      Thank you!

      Sam Fares

      Translate
      RichardJ19-Tanzanite
      19-Tanzanite
      Mar 6, 2015 2:36 AM UTC

      Maybe I misunderstand what you are trying to do, but the way I read it is that you set lambda="rhs expression", and substitute that into the matrix on the lhs, which yields the matrix on the rhs. The problem is, such a substitution will not result in the matrix on the rhs. Initially I thought all your diagonal terms were wrong, but in fact all terms other than the zeros are wrong. If that's what you are trying to do, anyway . If not, you need to explain in more detail the steps you are taking and why you think the solutions(s) are wrong.

      Translate
      HarveyHensley12-Amethyst
      12-Amethyst
      Mar 6, 2015 5:47 AM UTC

      The third method needs a value for m.1 and the assignment := instead of = for omega.1 as shown.


      Translate
      HarveyHensley12-Amethyst
      12-Amethyst
      Mar 6, 2015 6:13 AM UTC

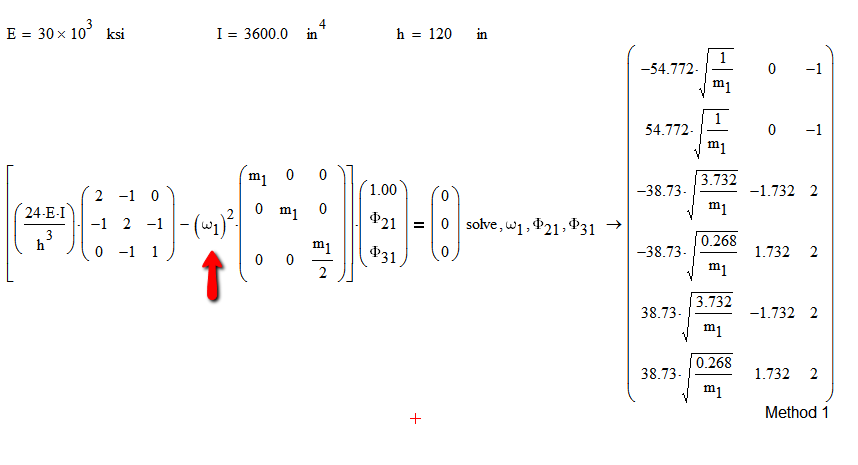

      The first method has three equations and only two unknowns. The m.1's all cancel. Put the omega.1 variable back in and solve for it too.hw6_method_1.png

      It found 6 solutions.

      Translate
      HarveyHensley12-Amethyst
      12-Amethyst
      Mar 6, 2015 6:21 AM UTC

      Method 2 has the same problem as method 1...hw#6_method_2.png

      Translate
      Fred_Kohlhepp23-Emerald I
      23-Emerald I
      Mar 6, 2015 2:14 PM UTC


      I believe Mr. Jackson is mistaken. (This is dangerous ground!)

      I believe some of your problem is unit balance. Symbolics doesn't understand units. To solve that you didn't give E, I, and h any units, you just typed the unit next to the number. The issue with that approach is that the problem does not scale properly, so your solutions for omega are not correct. The attached file fixes that.

      But there's another issue: when solving for the Eigen Vectors, your mass cancels out. I can get Mathcad to give me eigenvalues and eigenvectors, but applying your method 2 results in a quandary.

      Maybe the attached can move you forward, but I'm out of my depth here.

      Good luck!
