Stress-Strain plot using mathcad prime

  • May 21, 2023
  • 1 reply
  • 3427 views

Can anyone help me with a simple programing to help me plot my stress-strain plot. I am really bad at programming, and I hope you could give me some pointers. Already tried watching tutorials and I still do not know how to proceed, Thank you in advance.





Best answer by Werner_E

The problem is the function f.C1 because you used square brackets. Using square brackets creates a matrix which is not what you want.

So use normal parentheses and the sheet works.

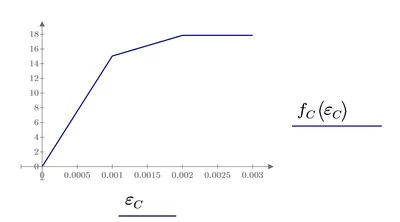

But your range variable epsilon.C consists of only four numbers (0, 0.001, 0.002 and 0.003) and so your plot is just connecting four points.




1 reply

W
Werner_E25-Diamond IAnswer
25-Diamond I
May 21, 2023

The problem is the function f.C1 because you used square brackets. Using square brackets creates a matrix which is not what you want.

So use normal parentheses and the sheet works.


But your range variable epsilon.C consists of only four numbers (0, 0.001, 0.002 and 0.003) and so your plot is just connecting four points.




    T
    Teddy_41811512-AmethystAuthor
    12-Amethyst
    May 22, 2023

    But how do i plot the function with a smoother curve?

    T
    21-Topaz II
    terryhendicott21-Topaz II
    21-Topaz II
    May 22, 2023

    Hi

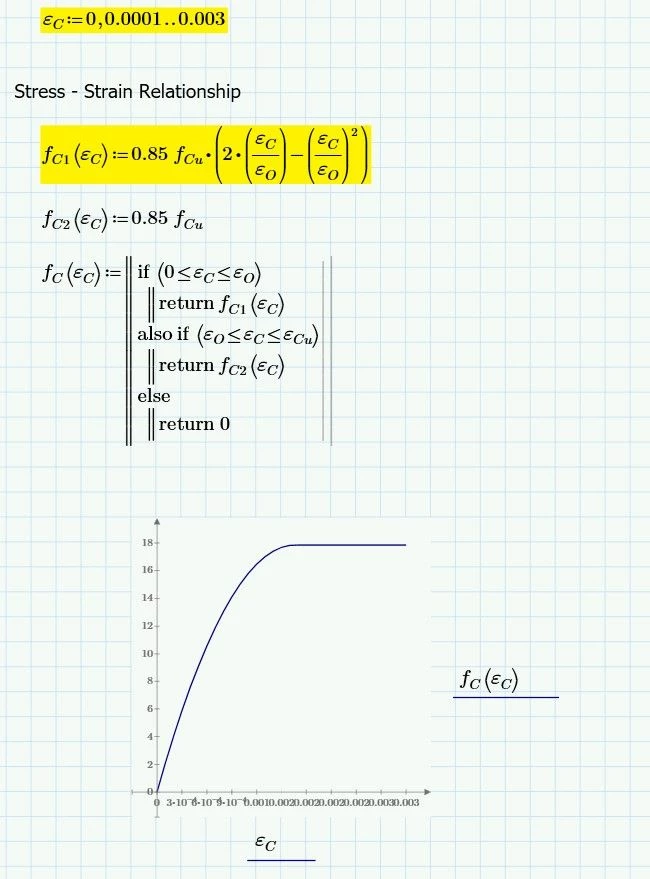

    Change the square brackets, and plot using a mid range of 0.0001 not 0.001Capture.JPG
