Study 15. Otto Cycle or what is behind the simplified formula

  • September 30, 2015
  • 0 replies
  • 2397 views

This study explains how the usual simplified formula to calculate thermal efficiency of an internal combustion engine is appears. Described Internet sites with the "reverse" design challenge – you must not to enter raw data and get a response, but you must enter formulas for calculations and verify their correctness (educational task).

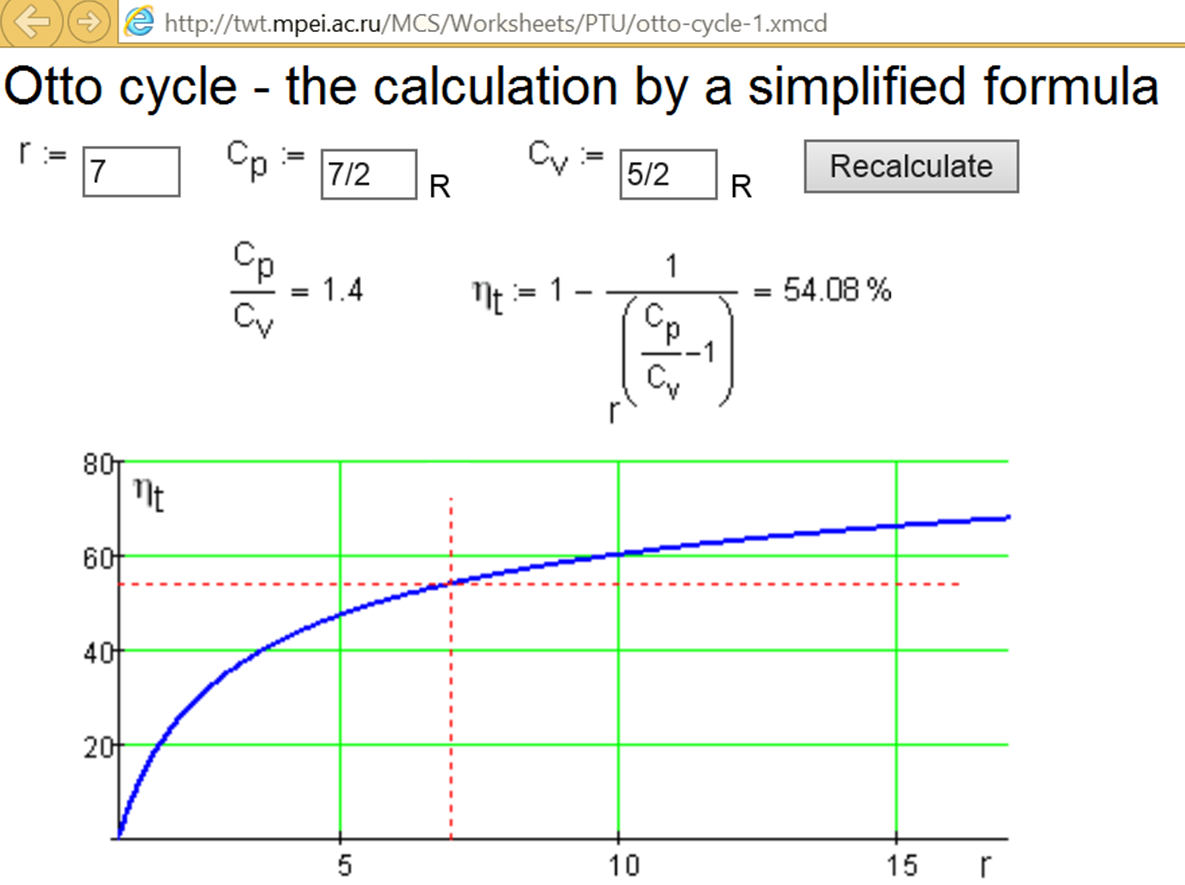

Fig. 15.1. Otto cycle thermal efficiency - http://twt.mpei.ac.ru/MCS/Worksheets/PTU/otto-cycle-1.xmcd

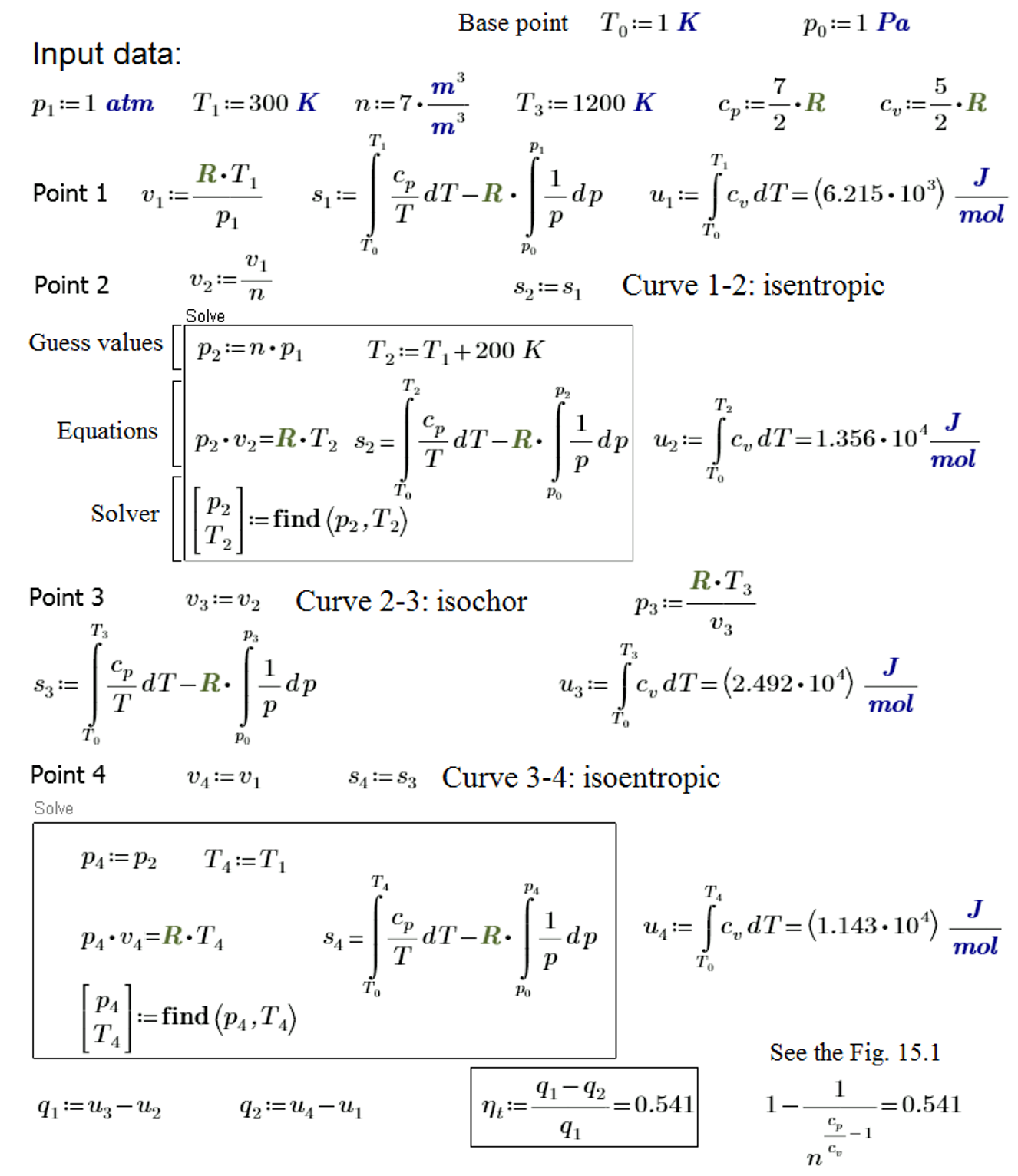

Fig. 15.2. "Pointwise" calculation of Otto cycle thermal efficiency


Fig. 15.3. Ideal gas specific entropy calculation


Fig. 15.4. Ideal gas enthalpy calculation

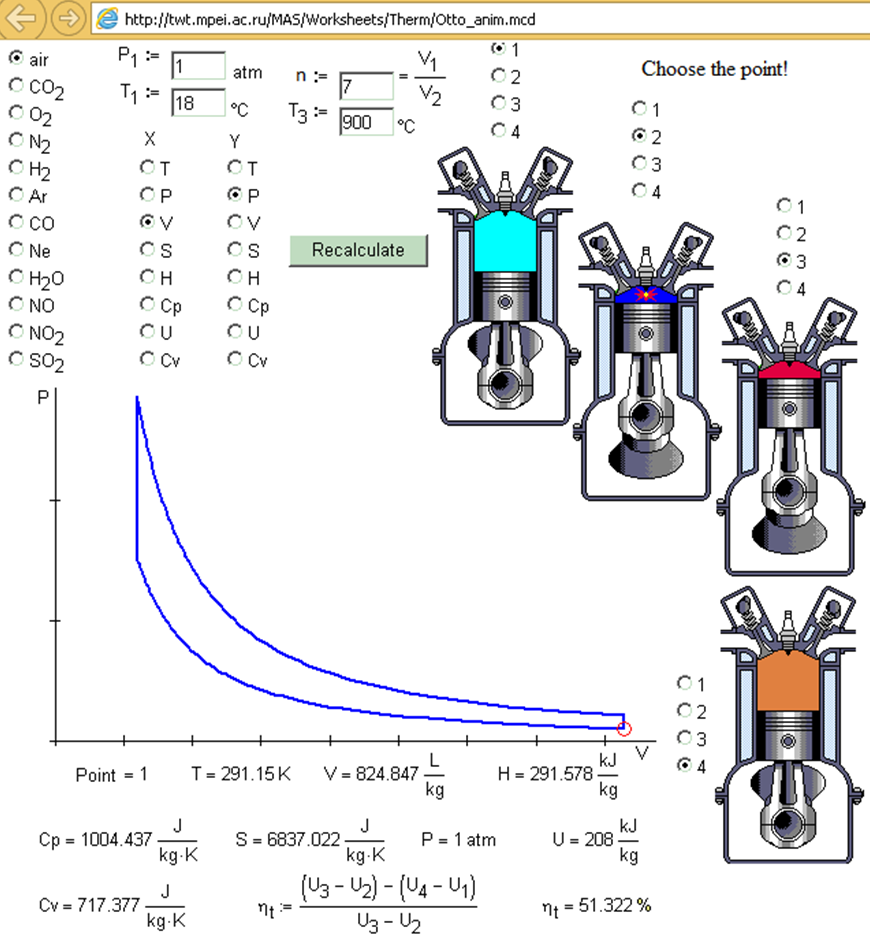

Fig. 15.5. The site with the calculation and graphical display of the Otto cycle - http://twtmas.mpei.ac.ru/mas/Worksheets/Therm/Otto_anim.mcd

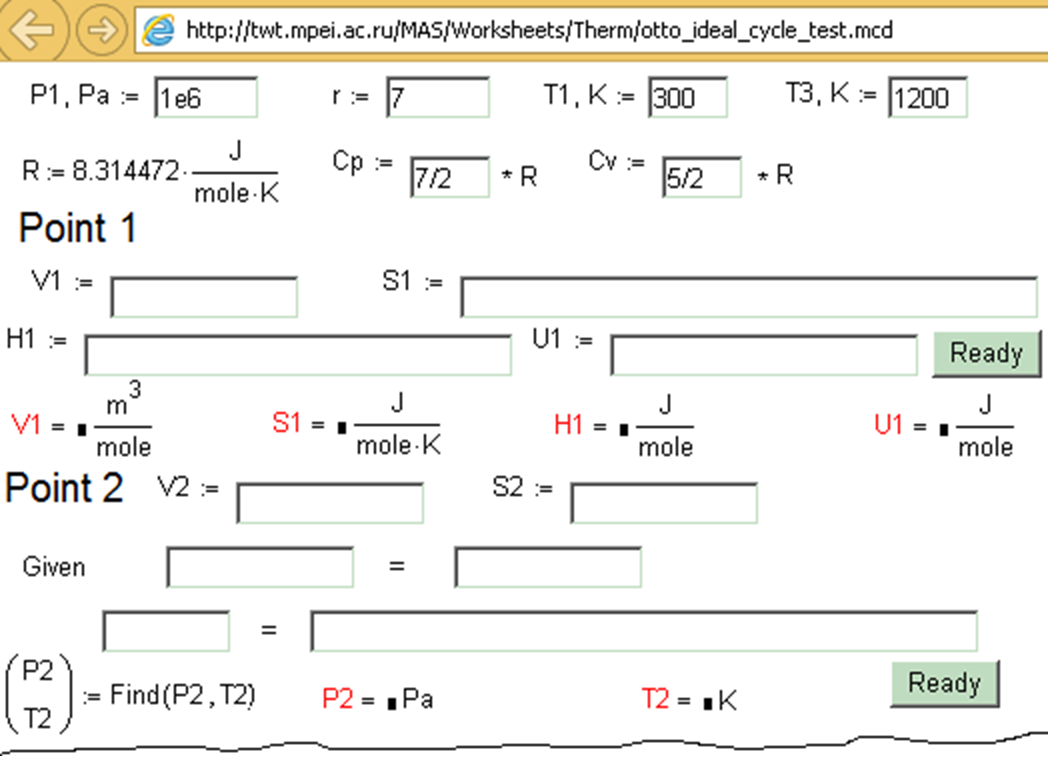

Fig. 15.6. Start of the test on knowledge of the calculation of the Otto cycle - http://twtmas.mpei.ac.ru/mas/Worksheets/Therm/otto_ideal_cycle_test.mcd

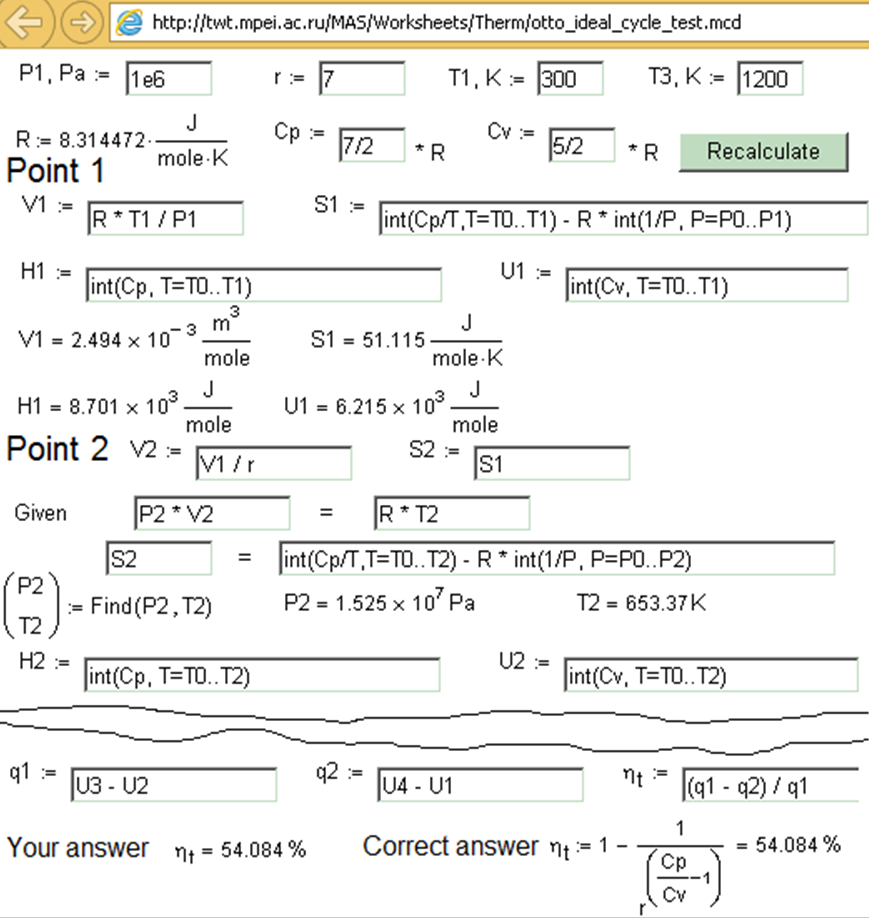

Fig. 15.7. End of the test on knowledge of the calculation of the Otto cycle
