Study 7. Thermal engineers' gift to water chemists

  • September 30, 2015
  • 1 reply
  • 1857 views

This study continues the analysis of problems of optimization techniques using the example of staged evaporation of steam in the boiler drum to reduce the concentration of impurities in the steam from the boiler. The described techniques use mathematical packages and spreadsheets to solve the paradoxical problems of optimization.

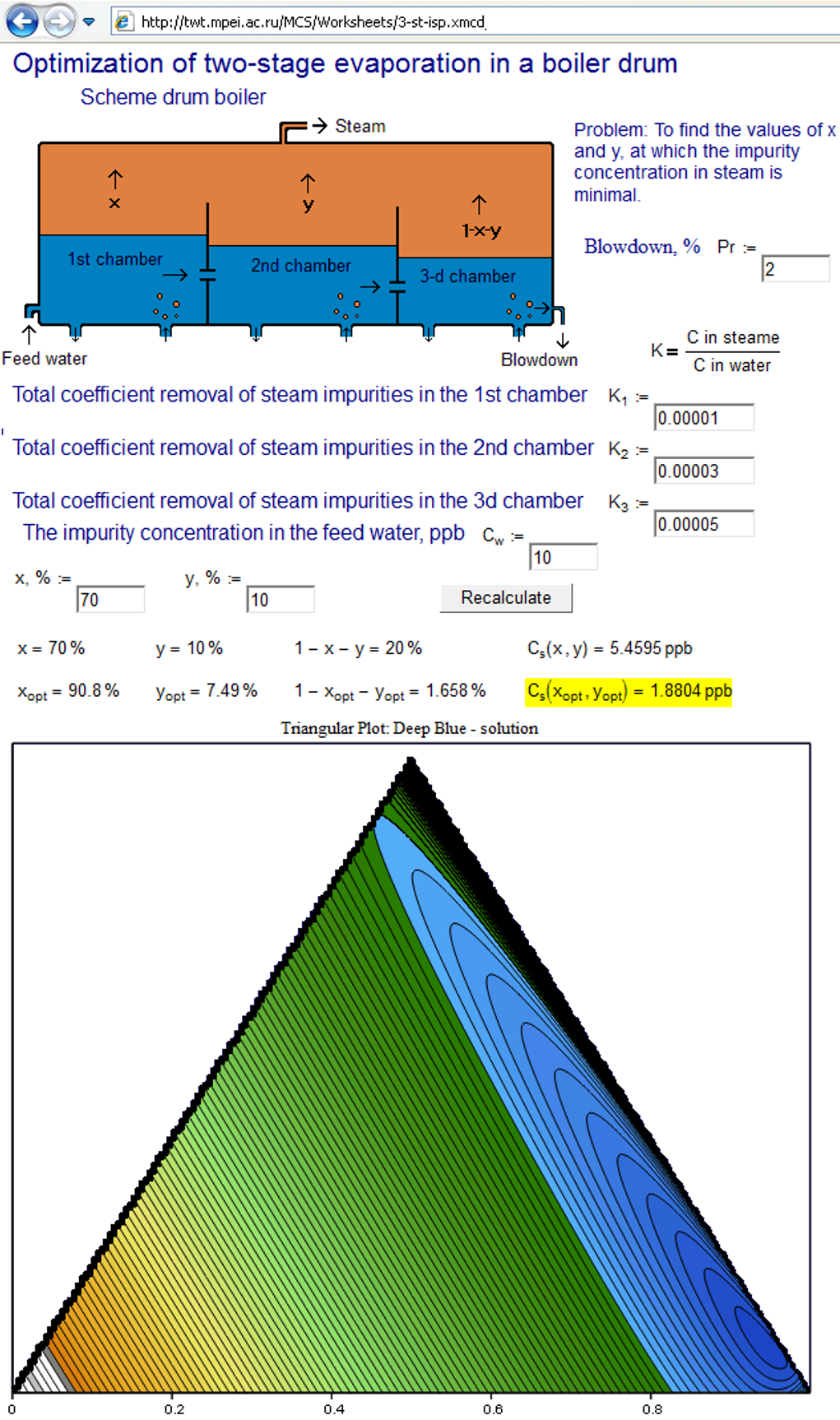

Fig. 7.1 Site for calculating staged evaporation in a drum boiler

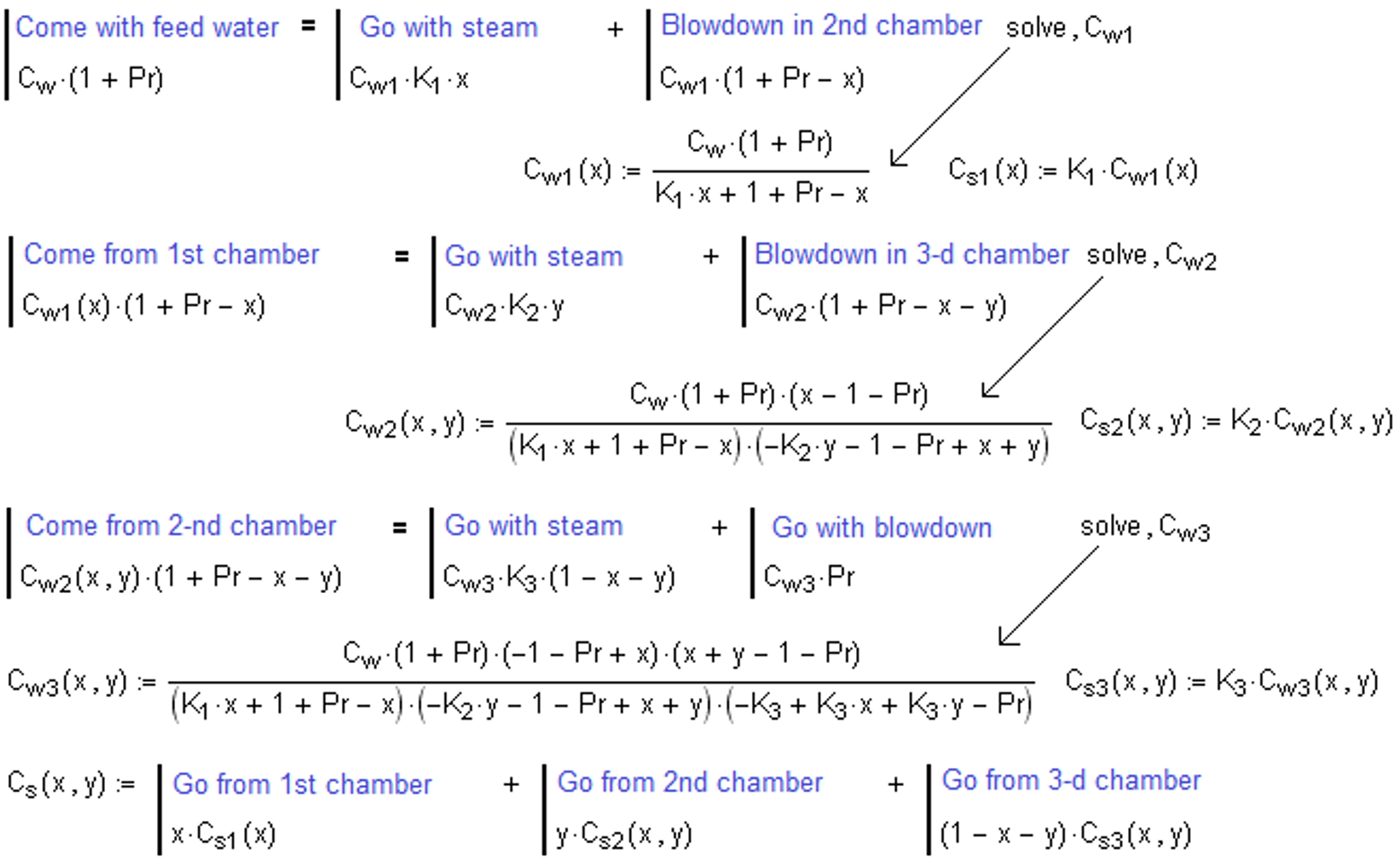

Fig. 7.2 Create user functions using Mathcad symbolic mathematics

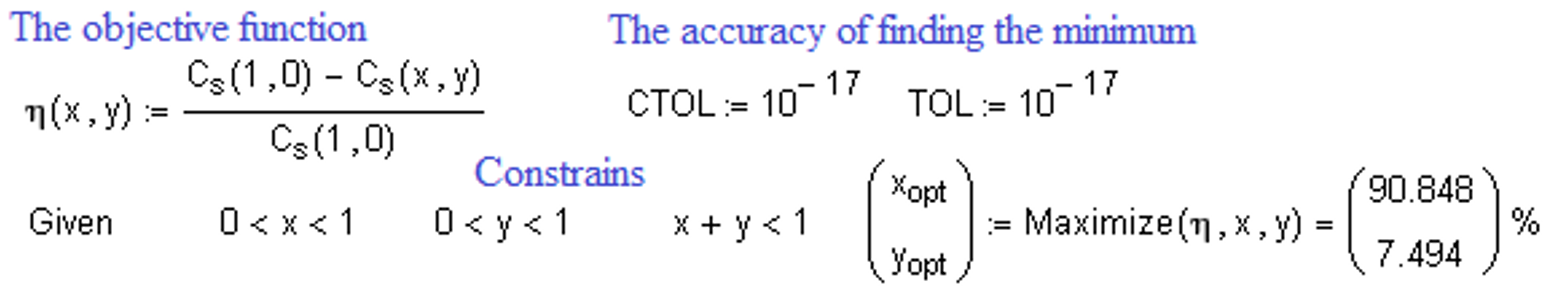

Fig. 7.3 Numerical search of the optimum

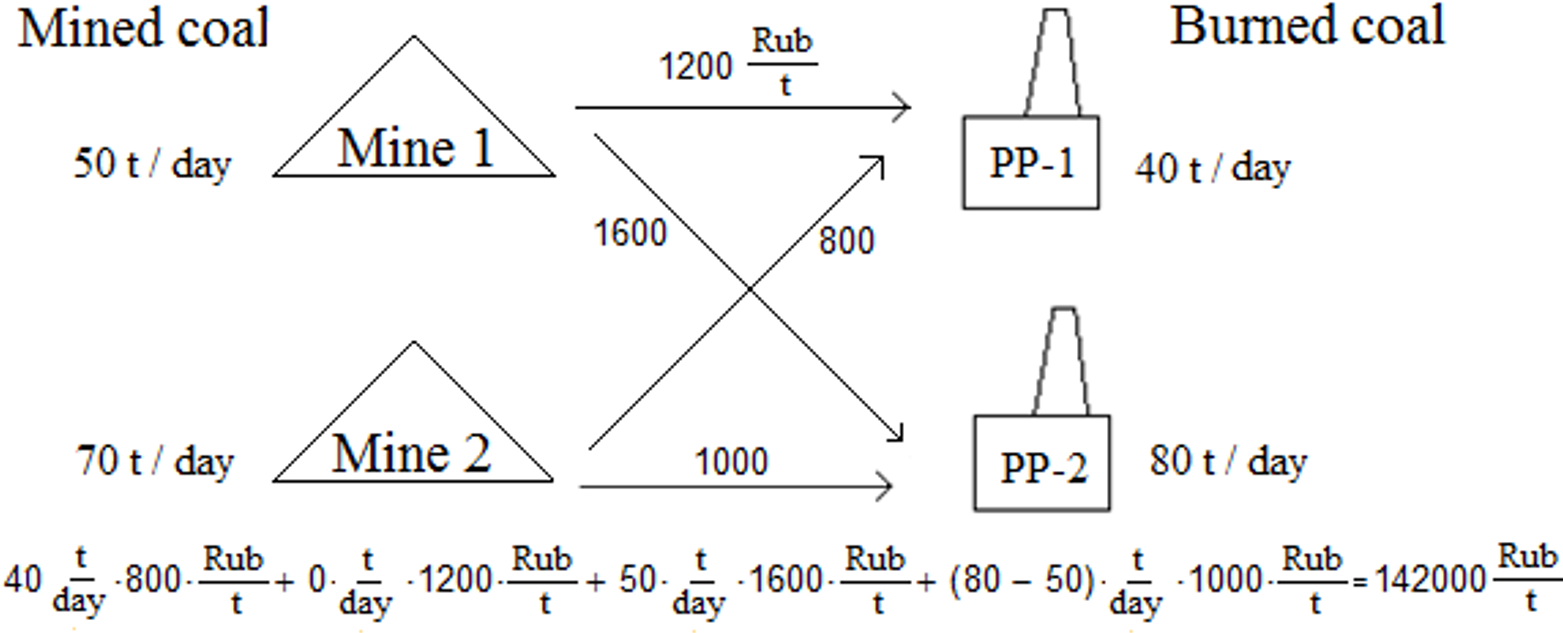

Fig. 7.4. Erroneous manual solution of the transportation problem

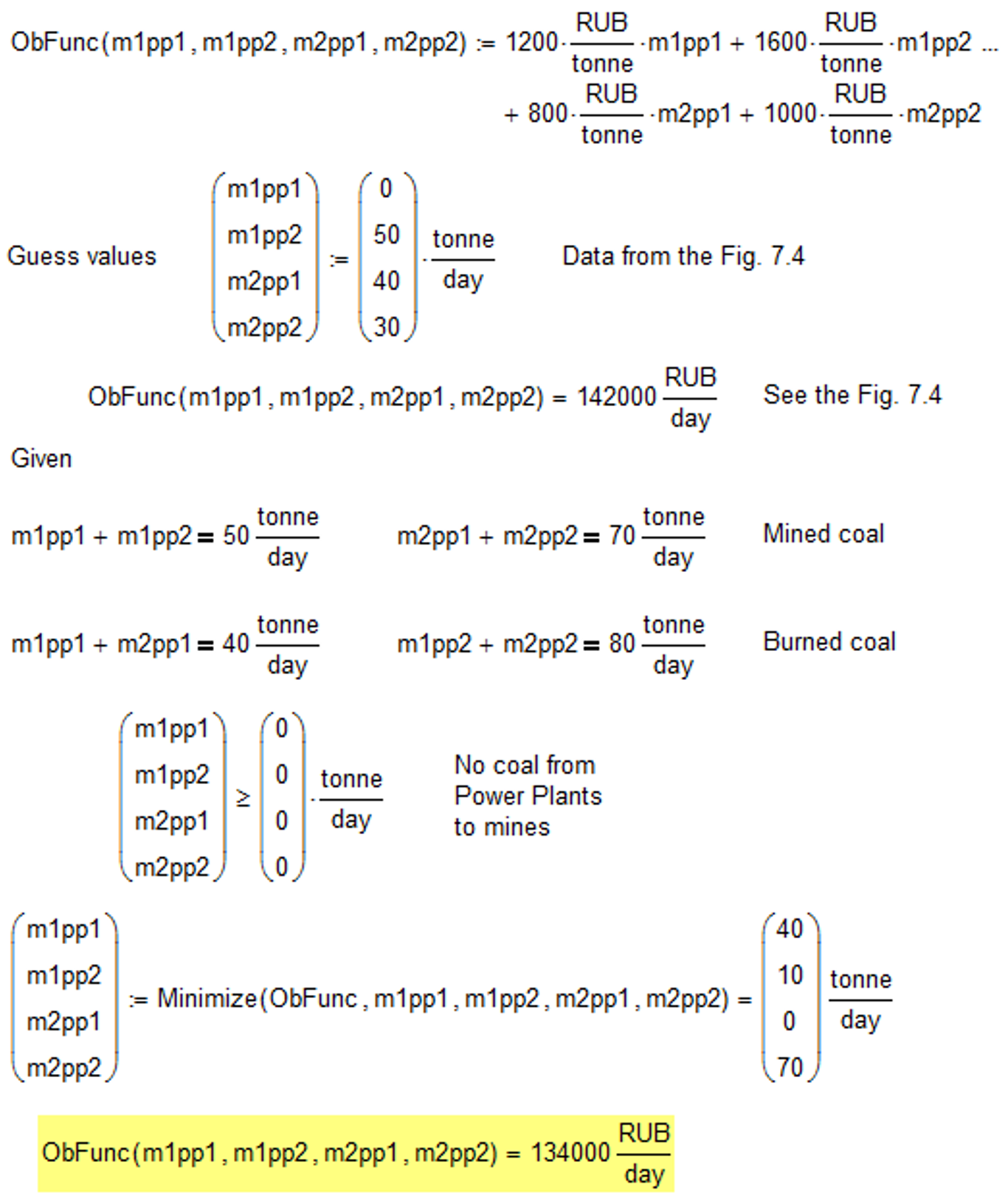

Fig. 7.5. Proper computer solution of the transportation problem

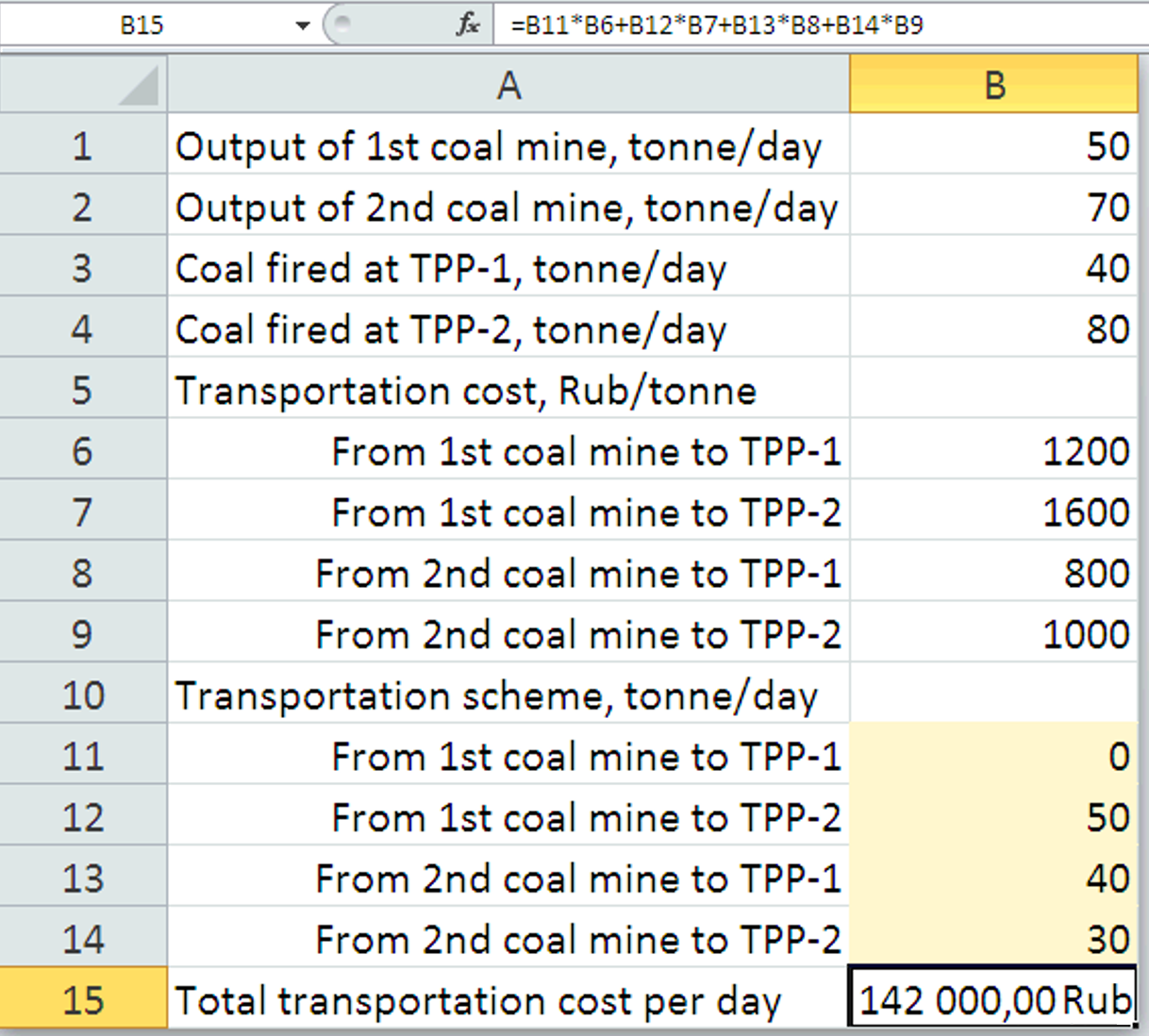

Fig. 7.6. The transportation problem in MS Excel environment

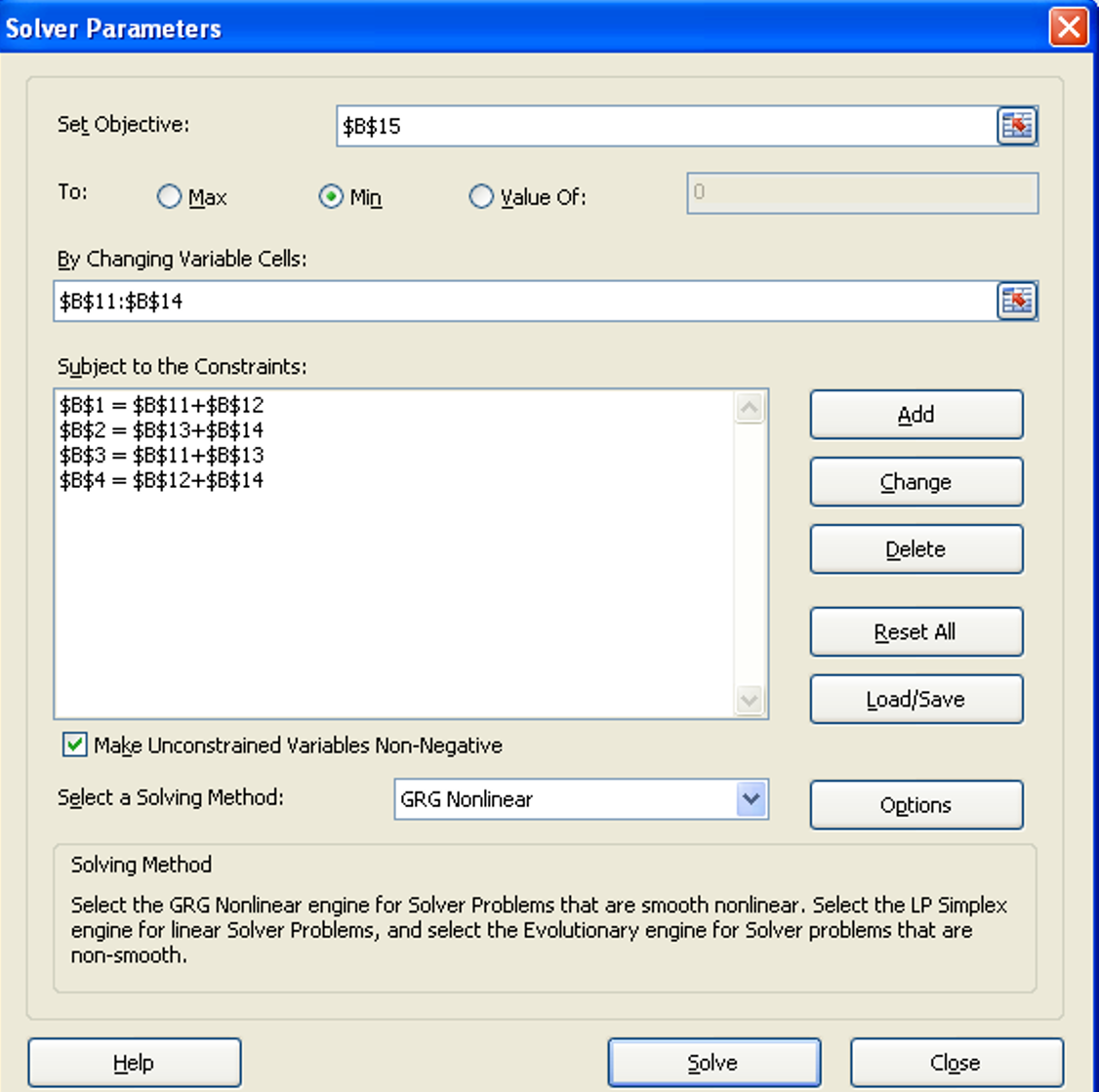

Fig. 7.7. Optimize the transportation problem in MS Excel environment

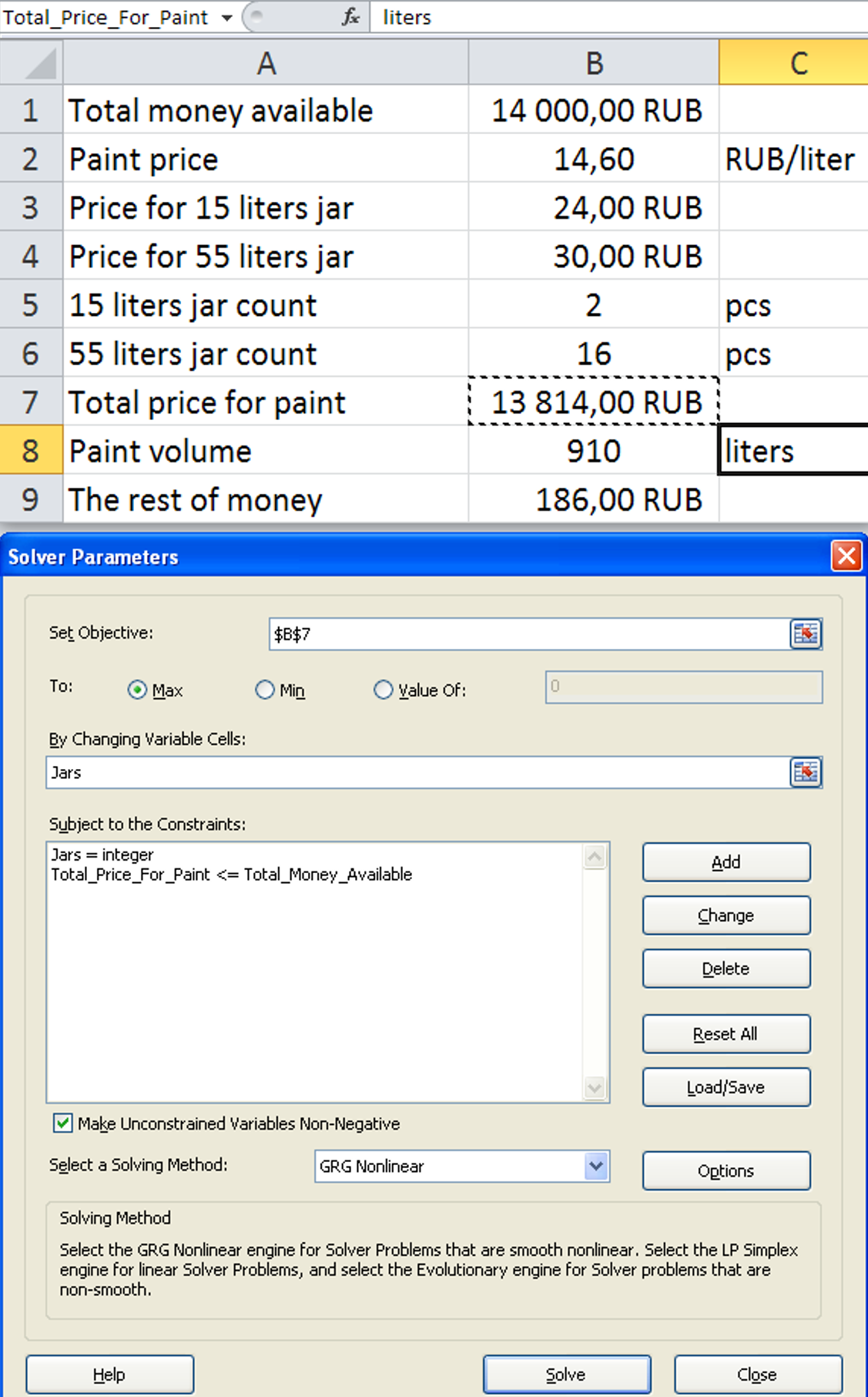

Fig. 7.8. Paint problem solved in MS Excel environment

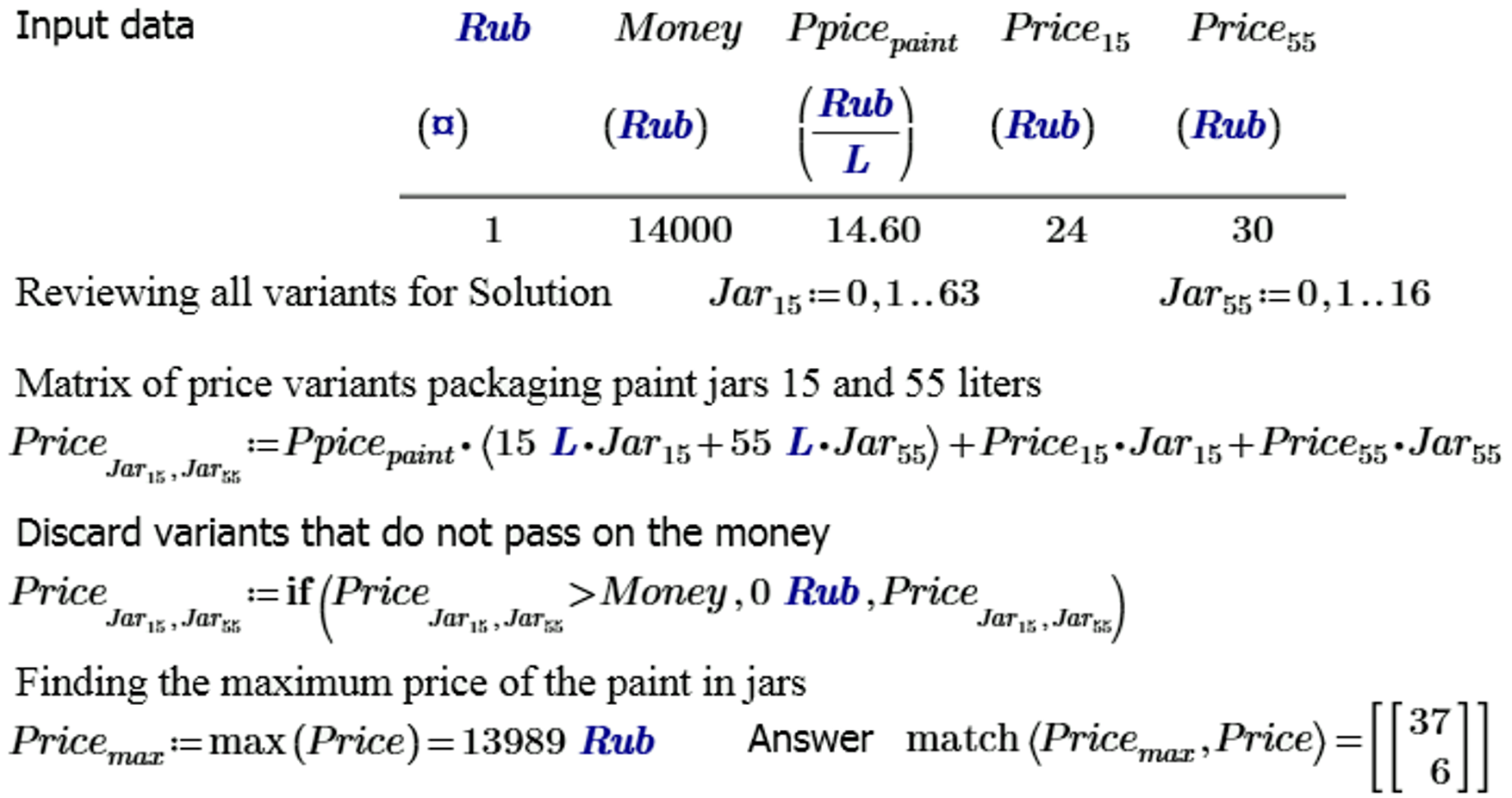

  Fig. 7.9. Paint problem solved in Mathcad Prime environment

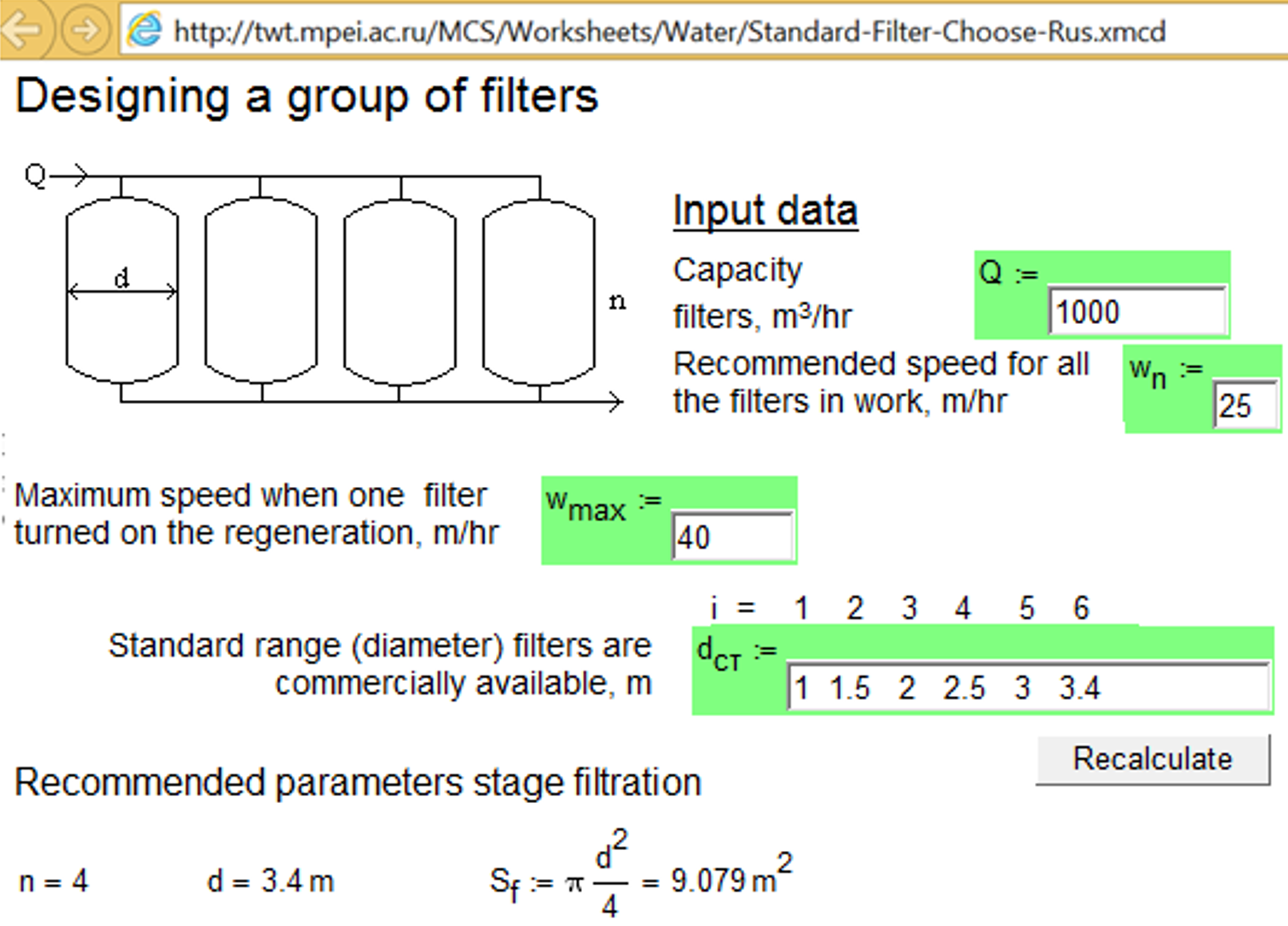

Fig. 7.10. The calculation for the group of filters used for treatment of make-up water of a steam turbine unit
