Question

symbolic math,window function symbol

  • January 11, 2017
  • 1 reply
  • 2702 views

Hi

What is the window function symbol to solve this formula by symbolic math

thank you

1 reply

-
-MFra-21-Topaz II
21-Topaz II
January 12, 2017

Hi bens djel,

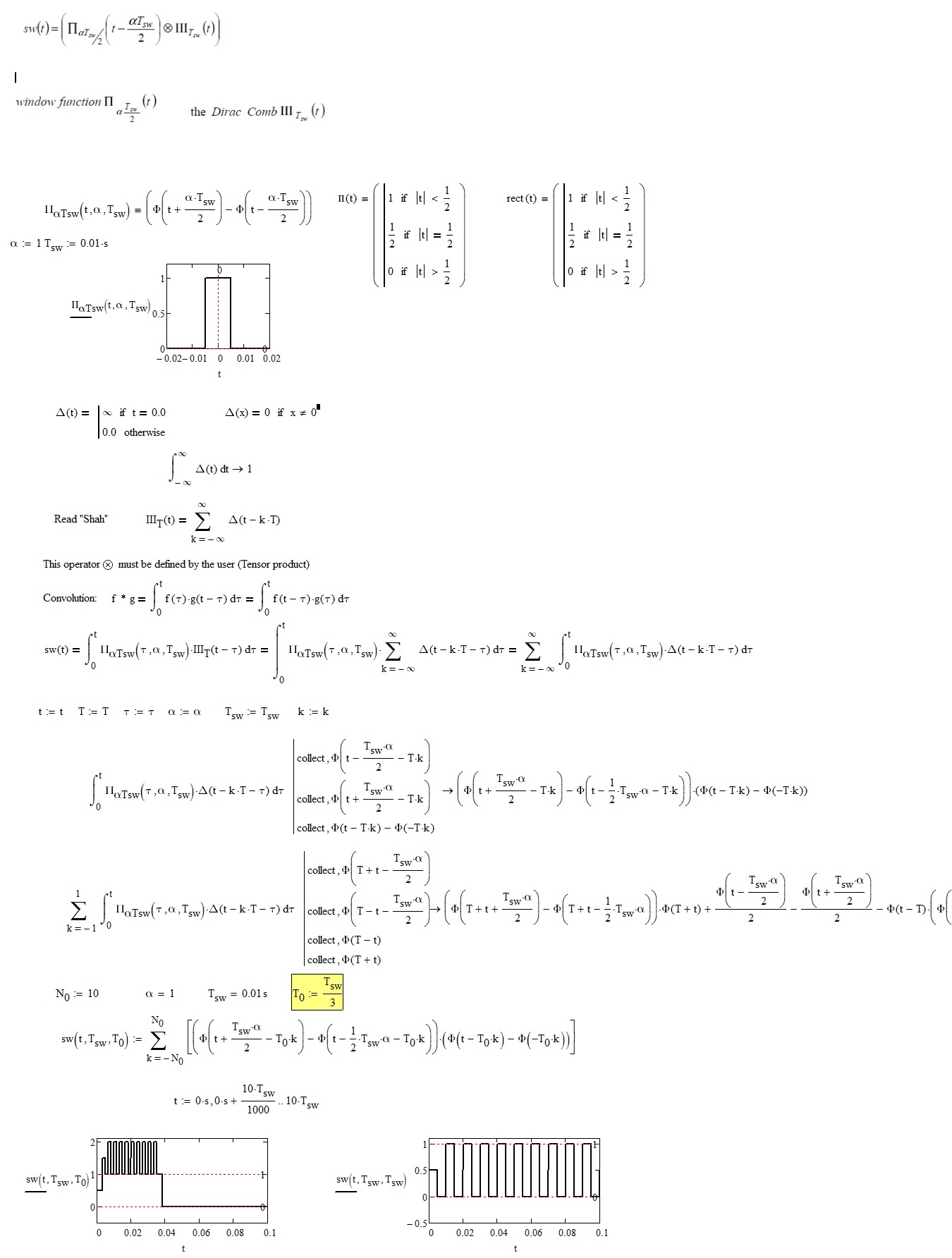

I think that you are looking for what follows:

symbolic math.jpg

B
bdjel1-VisitorAuthor
1-Visitor
January 12, 2017

Thanks, but I cannot repeat what you do, if you may share a Mathcad file will be better, and thank you very much

for the operator is the "CONVOLUTION"  T=10^4,

Tsw time    α=0.7  is      the duty cycle of the converter

-
-MFra-21-Topaz II
21-Topaz II
January 13, 2017

Hi bens djel,

That symbol it is often encountered in physics and is the operator tensor product, while in electronics and telecommunications, the asterisk is used as the convolution operator.

I enclose the worksheet.

Bye
