    Werner_E
    Werner_E25-Diamond I
    25-Diamond I
    August 18, 2020

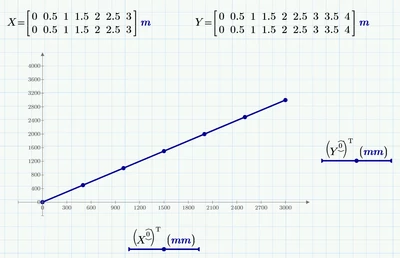

    Sorry, I can't see what exactly you are looking for and how the data (x,y,X,Y) your program delivers would correspond with the graphic you provided.



    If you are looking for a way to add a grid, you may either use the third party 2D chart component which is part of prime since version 5 or you have to code it yourself. Examples for adding grid lines in the Primes native 2D-plot were posted here a few times.
    Here are two links I found after a quick search:

    https://community.ptc.com/t5/PTC-Mathcad/In-MCD-Prime-4-0-is-there-any-way-to-add-gridlines-to-plots/m-p/86492/highlight/true#M34243

    https://community.ptc.com/t5/PTC-Mathcad/Grid-on-a-2D-Plot/m-p/672767/highlight/true#M190679



    Translate
      YornEngtang1-VisitorAuthor
      1-Visitor
      August 18, 2020

      I'm really thank to you for shared me advise.

      I want to arrangement Rebar on Pile cap.




      Translate
      Werner_E
      Werner_E25-Diamond I
      25-Diamond I
      August 18, 2020

      I still have no clue what exactly you want to plot and how the graphic you show correspond with the coordinates (x,y,X,Y) you showed in your sheet.

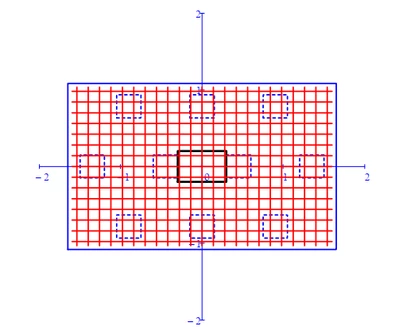

      I see 4 different objects in your graphic:

      1) the big blue rectangle around the whole figure

      2) a smaller black rectangle in the center

      3) a number of smaller squares, painted in dotted blue

      4) a grid in red

      You'll have to exactly specify the positions and dimensions of all these objects and how they relate with the numbers you throw in at the start (B, L, nx, ny).

      You new graphic once again shows very different dimensions in the coordinate system compared to the one you showed in your worksheet - thats confusing.



      BTW - wouldn't you be better off by inserting a graphic made in a CAD program or even a simple paint program rather than letting Prime or Mathcad do a job it wasn't made for?
