Units in contour plot

Hello,



Can I have units in contour plot? I mean, i have stress function for example:

σ=σ(x,y)



x=[m]

y=[m]

σ=[MPa]




2 replies

ValeryOchkov24-Ruby IV
24-Ruby IV
January 22, 2019

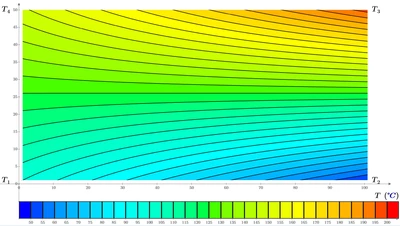

I use units (of Temperature) in a counterplot - see the picture and use the Mathcad Prime file in attach.


Translate
tsilence1-Visitor
1-Visitor
January 22, 2019

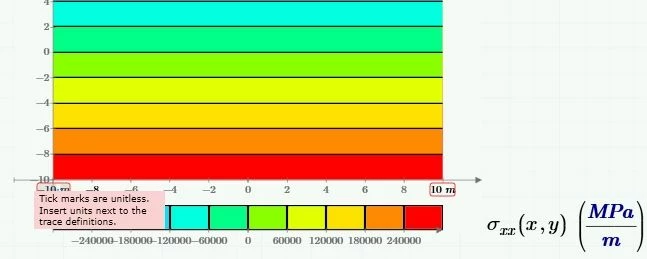

Like Valery was hinting at, there is no way to add units to the tick marks. So you have already included units in the best way possible for a contour chart.



In Valery's example, he creatively uses text boxes to create visible units on each axis!
