Question

Unknown software for pressure diagram charts

  • September 22, 2017
  • 2 replies
  • 2123 views

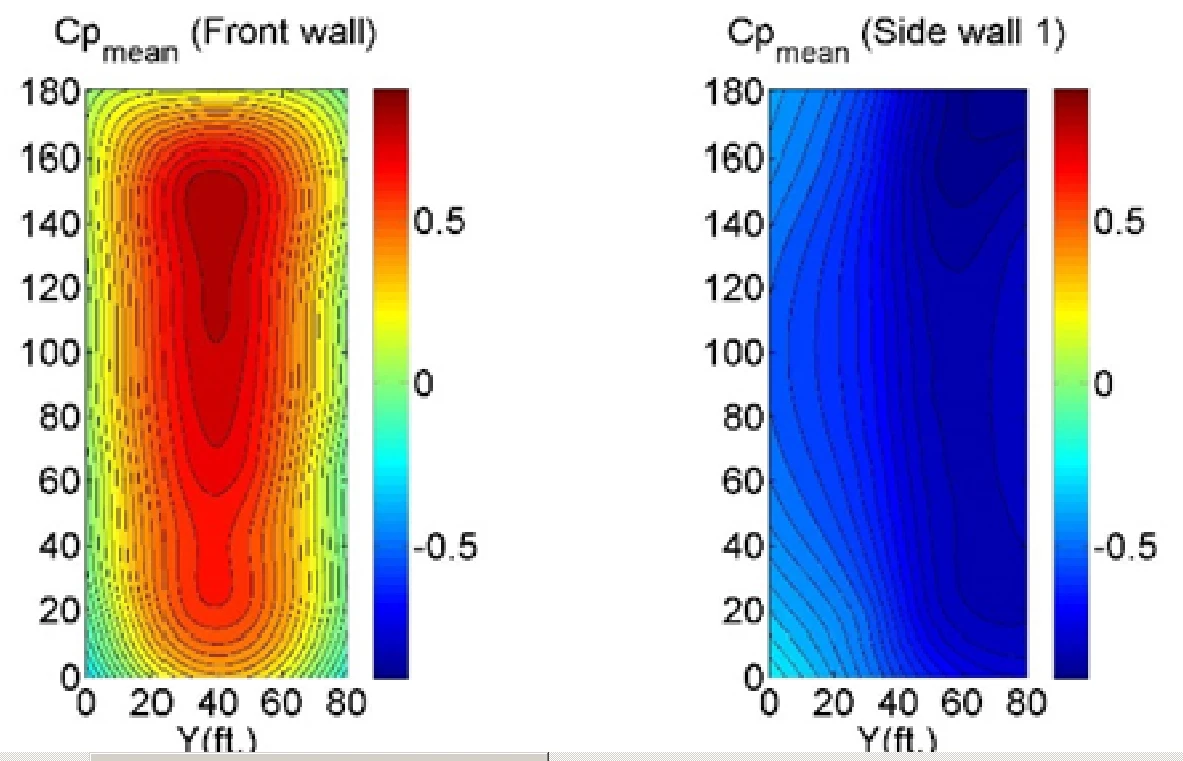

Can anyone recognize which software do these pressure diagram charts are made from? Can Mathcad do anything of this nature? Thanks

2 replies

D
DJF16-Pearl
16-Pearl
September 22, 2017

I don't know what made those exactly.  But GNU R can do them (or any other plot basically), and it's free.

T
terryhendicott21-Topaz II
21-Topaz II
September 23, 2017

You can plot them also in Mathcad 14/15 but you have to construct the legend.

Sample enclosed.

V
ValeryOchkov24-Ruby IV
24-Ruby IV
September 23, 2017

See this on Mathcad 14 calculation server

http://twt.mpei.ac.ru/MCS/Worksheets/TMO/Pde-Temperature.xmcd

I have used two sepatate counter plots.

V
ValeryOchkov24-Ruby IV
24-Ruby IV
September 23, 2017

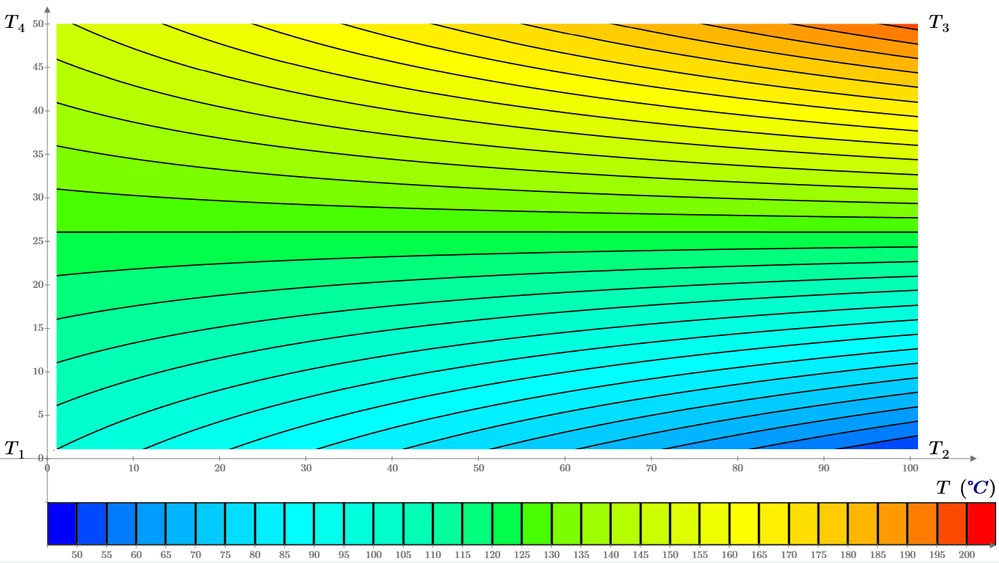

See please the temperature field created in Mathcad Prime

(one Fig. from the book http://www.springer.com/gp/book/9783319266732)
