Using the Finite Element Method on Truss Structures

by Franceso Onorato


About this worksheet:

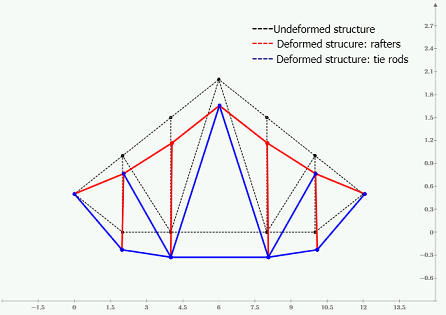

This PTC Mathcad calculation shows how to design a warehouse based on a steel beam structure. Truss design is commonly taught in engineering courses, but based on a hand calculations approach. Instead, this worksheet uses a robust and error-checking method that can be performed automatically and repeatedly.

Download and explore this worksheet yourself! You can download a free lifetime copy of PTC Mathcad Express and get 30 days of full functionality.

1 reply

1-Visitor
Jul 26, 2018 1:04 AM UTC

I'd just like to make a thanks.  It seems the efforts are very good,even though I just have time to see a pdf.
