Variable definition and tolerance display?

Hi Frieds,

I want to define two variables A and B:

A=485.193(h6) mm , where "h6" is the tolerance and "mm" is the units

B=420.000(+0.15/-0.10) mm , where "+0.15/-0.10" is the upper and lower tolerance, and "mm" is the units.

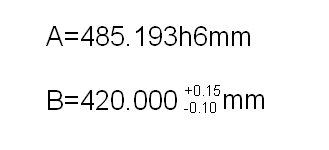

Is there anyone knows how to define variable A and B to make them display as following:


Best regards.

Jeffery

14 replies

MikeArmstrong1-Visitor
1-Visitor
November 1, 2011

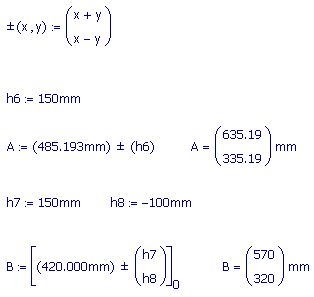

The only way I can think of doing it is like below.


Mike

Translate
AlanStevens19-Tanzanite
19-Tanzanite
November 1, 2011

Another (imperfect!) possibility attached.

Alan

Translate
nas0k1-Visitor
1-Visitor
November 1, 2011

Similarly to Mike's post, please see the attached.

Norm

Translate
    MikeArmstrong1-Visitor
    1-Visitor
    November 1, 2011

    Nice Norm, I like your +/- mod

    Mike

    Translate
    JefferyGu1-VisitorAuthor
    1-Visitor
    November 3, 2011

    Hi Friends,

    Thank all of you for your effort in dealing with this problem.

    Best reagrds.

    Jeffery
