Variable Vector Plot

  • December 19, 2024
  • 2 replies
  • 962 views

How the variable vector can be plotted on 2D xy plot






Best answer by Werner_E
@Arshad_Ali wrote:

How the variable vector can be plotted on 2D xy plot



What exactly do you mean by "plotting the vector"?



If you see A(x) as a vector of a couple of functions (in your case three linear functions) you can do as was shown by Luc.
Using this interpretation the number of rows in A is not mandatory - you could use less or more than three.

You may also use a waterfall plot:




But you may also see A(x) as a coordinate vector of a point in 3D which is dependent on a parameter x.
In this case you would be after plotting a curve in 3D and may be interested in 2D views like top view, etc..
Of course here its mandatory that A consists of exactly three rows.






2 replies

L
LucMeekes23-Emerald IV
23-Emerald IV
December 19, 2024

Like this:


You've defined a function A(x) which results in a vector of three different expressions in x. To plot them you need to separate them, that's what 's done with the indices 0, 1 and 2.



P.S. It's good habit to attach your worksheet file and state which version Prime you are using.



Success!
Luc

    W
    Werner_E25-Diamond IAnswer
    25-Diamond I
    December 19, 2024
    @Arshad_Ali wrote:

    How the variable vector can be plotted on 2D xy plot



    What exactly do you mean by "plotting the vector"?

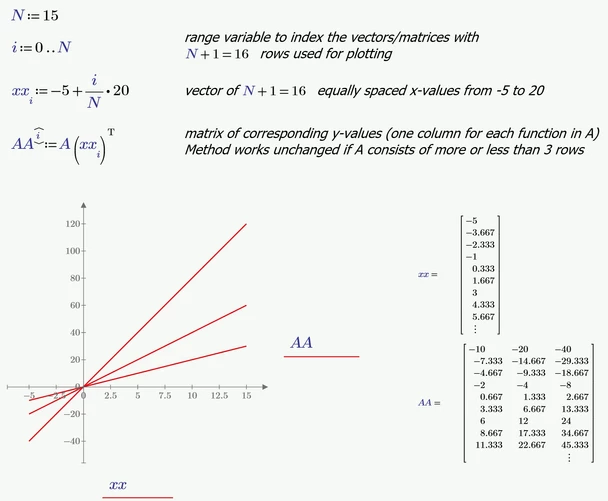

    If you see A(x) as a vector of a couple of functions (in your case three linear functions) you can do as was shown by Luc.
    Using this interpretation the number of rows in A is not mandatory - you could use less or more than three.

    You may also use a waterfall plot:

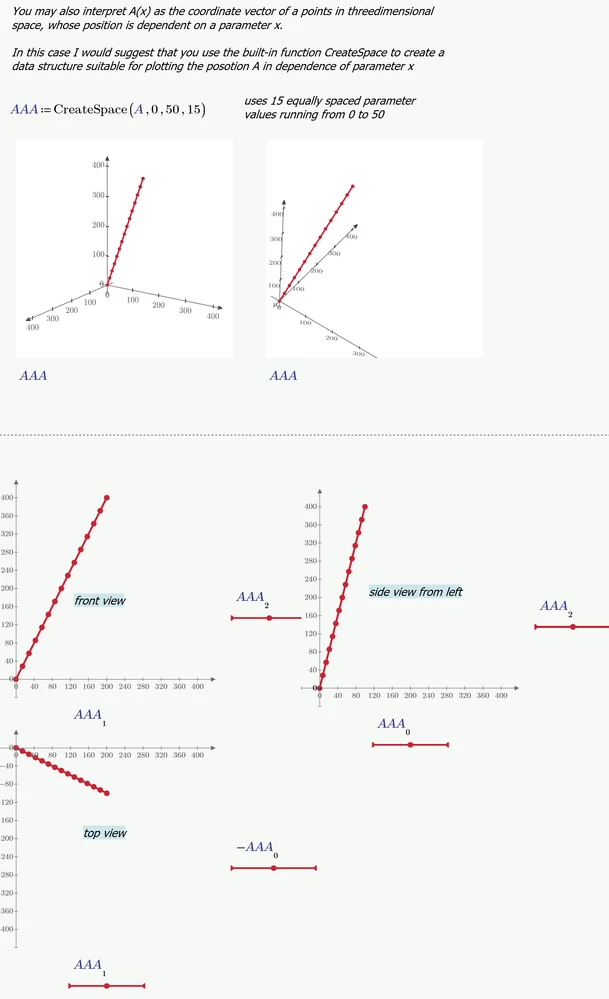

    But you may also see A(x) as a coordinate vector of a point in 3D which is dependent on a parameter x.
    In this case you would be after plotting a curve in 3D and may be interested in 2D views like top view, etc..
    Of course here its mandatory that A consists of exactly three rows.






    A
    Arshad_Ali10-MarbleAuthor
    10-Marble
    December 22, 2024

    Thank you so much for providing the best solution, since I wanted a single plot of variable vector.
