Wilson-Theta Time History Analysis

  • July 28, 2017
  • 1 reply
  • 13946 views

Good Afternoon Community,



Attached is a copy of Mathcad 15 file that I'm working on. I'm trying to convert a Matlab code into Mathcad file, I have done some work on the worksheet, but I ran into problem in converting Matlab programming into Mathcad programming. The Matlab code is at end of the worksheet. Would anybody please help me with the worksheet, my goal is to plot the time history of displacement, velocity and acceleration. Thank you in advance.



Boyer

Best answer by Werner_E

Oh yes, you are right! That was pretty tricky with the brackets 😉

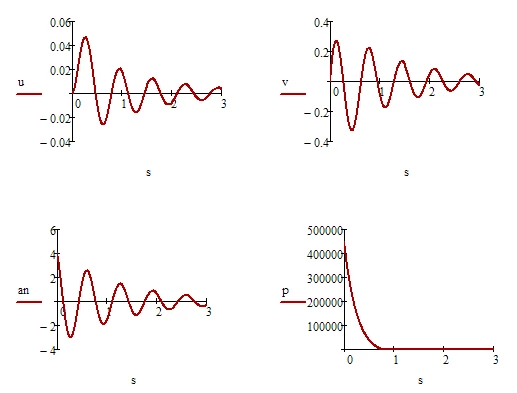

Now Mathcad delivers at least the correct results (unitless as in Matlab).




1 reply

-
-MFra-21-Topaz II
21-Topaz II
July 28, 2017

Hi Boyer,

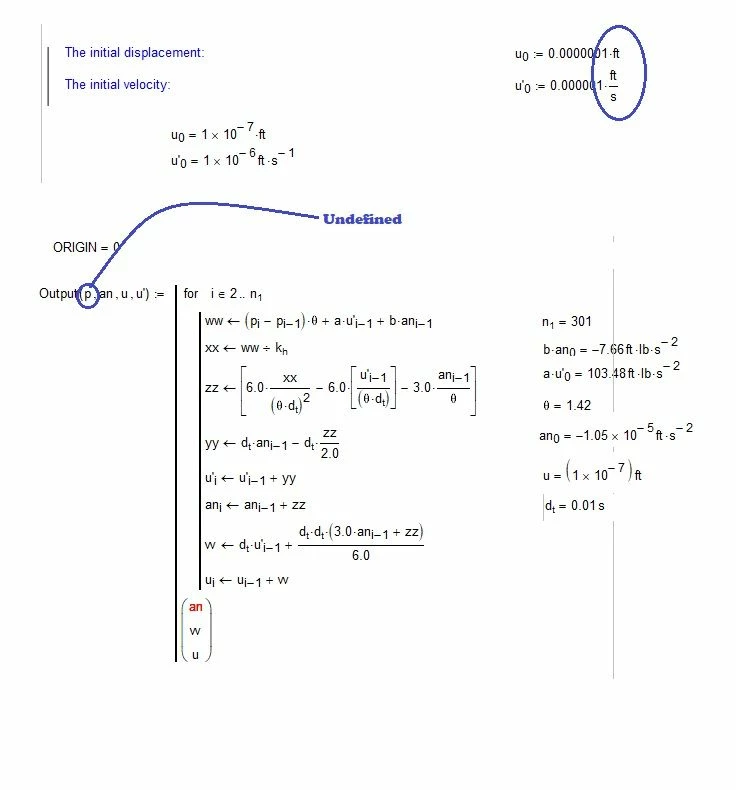

as you see from the following picture, the variable p is undefined. Furthermore are missing some unit of measure.


Regards

FM

O
OLUBUKOLAADEBOY10-MarbleAuthor
10-Marble
July 29, 2017

Good Evening F.M. Navigator,



Thank you for your help. I will look into the worksheet again and get back to you. Thanks again.



Boyer
