Changue 3D Annotation Orientation

Hello every body,

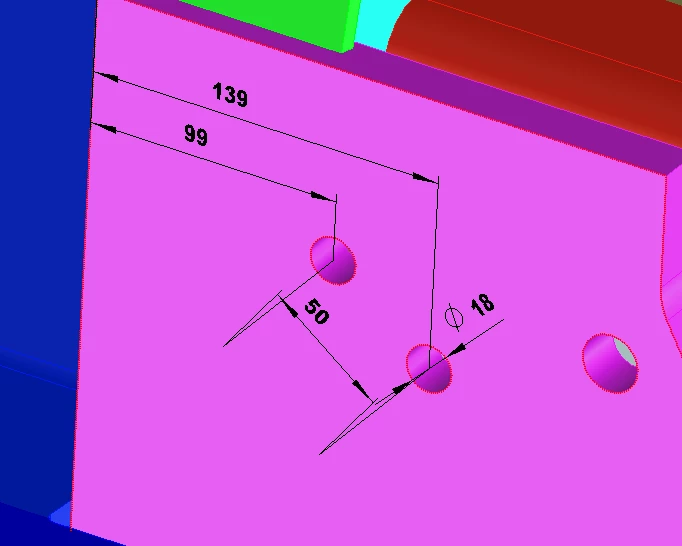

When I create a 3D annotation in V.18 between two center holes, the new 3d annotation is perpendicular at  the base face of the holes (it is automatically). Can I changue this position and put parallel at the base face of the holes?

I try to do with orient 3D annotation command, but it is not possible.



Any solution?



Thanks in advance.



Regards.



ThomasKirkmanAnswer
16-Pearl
April 26, 2018

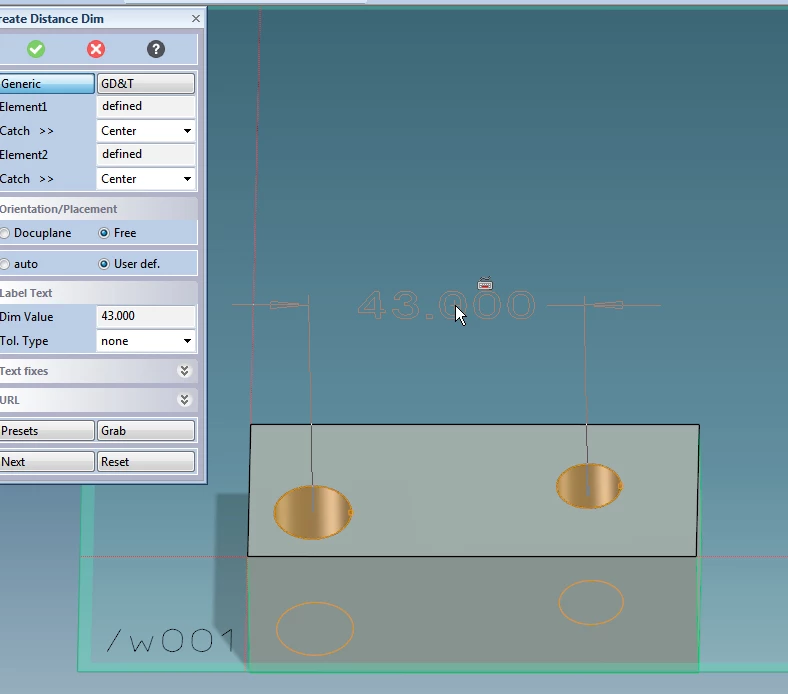

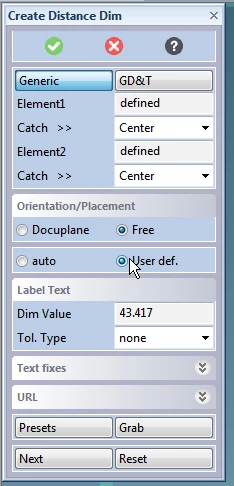

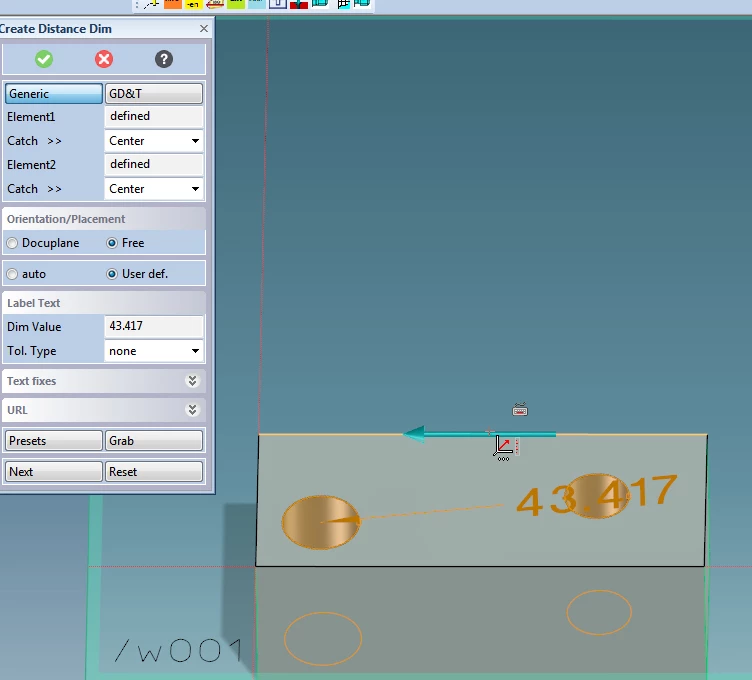

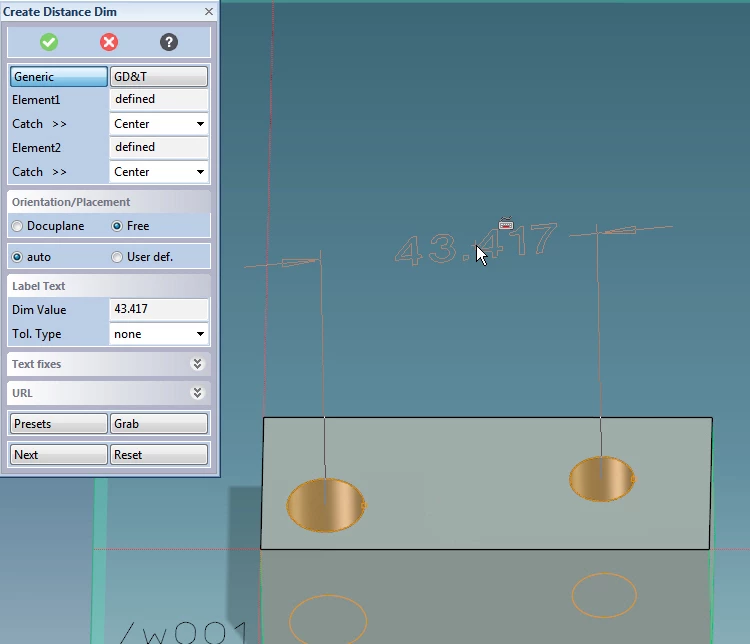

I think i understand the question. You want to pick user def. and use an edge, axis, or other geometry to define the direction.



Tom





View in thread

2 replies

ThomasKirkman16-PearlAnswer
16-Pearl
April 26, 2018

I think i understand the question. You want to pick user def. and use an edge, axis, or other geometry to define the direction.



Tom





Translate
    Ed138-GravelAuthor
    8-Gravel
    April 27, 2018

    Perfect Tom!!!



    Thank you very much.



    I have to activate first the 3D Documentation Module, here I find your answer (user def.pick).



    Good support.



    Best Regards.
