Faster way to open drawing of a part or assembly

Hi SV_7256125,

Thank you for your question.
I’d like to recommend to bring more details and context to your initial inquiry.

It also helps to have screenshot(s) to better understand what you are trying to do in your process.

This will increase your chances to receive meaningful help from other Community members.

Regards,

Community Moderation Team

---

@SEEBO wrote:

Hello,

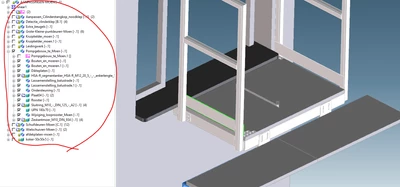

I am using creo elements/direct modeling version 20.6. I have noticed that it's still not possible to open a drawing straight from the model tree. Would it be possible to write a script or custom command to do this? Because now you have to go to the masterdata first and find the drawing there.



Other solutions for this problem are also welcome.



Kind regards.

Siebe

---

a script or custom command could indeed streamline your workflow in Creo Elements/Direct Modeling. While I couldn’t find a specific script for this exact task, you can create a custom command using the LISP programming language, which is supported by Creo Elements/Direct Modeling.

Here’s a basic outline of how you might approach this:

Create a LISP Script: Write a LISP script that searches for the drawing associated with the selected model and opens it.
Load the Script: Load the script into Creo Elements/Direct Modeling.
Assign the Command: Assign the custom command to a toolbar button or a menu item for easy access.
Example LISP Script
Here’s a simple example to get you started. This script assumes you have a function to find and open the drawing based on the selected model:

(defun open-drawing-from-model ()
(let* ((model (sd-inq-curr-part))
(drawing (find-drawing-for-model model)))
(if drawing
(sd-call-cmds (sd-display-drawing drawing))
(format t "No drawing found for the selected model."))))

(defun find-drawing-for-model (model)
;; Implement your logic to find the drawing associated with the model
;; This is a placeholder function
(some-function-to-find-drawing model))

(sd-defdialog 'open-drawing-dialog
:dialog-title "Open Drawing from Model"
:variables '((model :value-type :part))
:ok-action '(open-drawing-from-model))

(sd-create-menu-item "Open Drawing from Model" 'open-drawing-dialog)

Steps to Implement
Write the Script: Save the script as a .lsp file.
Load the Script: In Creo Elements/Direct Modeling, go to File > Load > LISP File and load your script.
Assign the Command: You can add the command to a toolbar or menu for easy access.
Additional Resources
For more detailed information on scripting and custom commands in Creo Elements/Direct Modeling, you can refer to the PTC Help Center and the Creo Elements/Direct Modeling Documentation
