How to Add Custom Frames in Drawing file?

Forum|Forum|7 years ago
December 25, 2018
2 replies
4203 views

Hi,

Can anybody help me out for adding custom frames in CED Annotation file?

I tried the method suggested by PTC Tech Support but did not work in my case.

I tried below method of changing the am_customize file as below

;(docu-register-frame
;   :UI-name "Custom-A3"
;   :Wm-name ""
;   :file "C:\Custom_Frames\Custom_A3.mi"
;   :default :every time)     ;; T/NIL/:every time

But this did not work.

Still the same standard Letter sizes and A0.....A4 sizes are showing.

Please help....

Annotation

Best answer by jvadalia-2

Wrong syntax i wrote.
;(docu-register-frame
; :UI-name "Custom-A3"
; :Wm-name ""
; :file "C:\Custom_Frames\Custom_A3.mi"
; :default :every time) ;; T/NIL/:every time

Right syntax solved the issue aa below.
"
docu-register-frame
:UI-name "Custom-A3"
:Wm-name ""
:file "C:/Custom_Frames/Custom_A3.mi"
:default :every time) ;; T/NIL/:every time
"
We have to copy the above syntax for all the frames to configure in am_customize file.

T

ThomasKirkman

16-Pearl

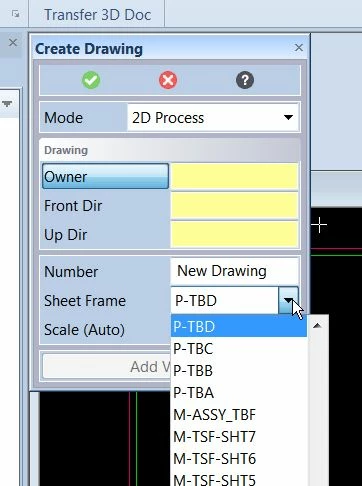

Did the frame show up in the drop down list when starting a new drawing?

When you said this did not work, what results did you get?

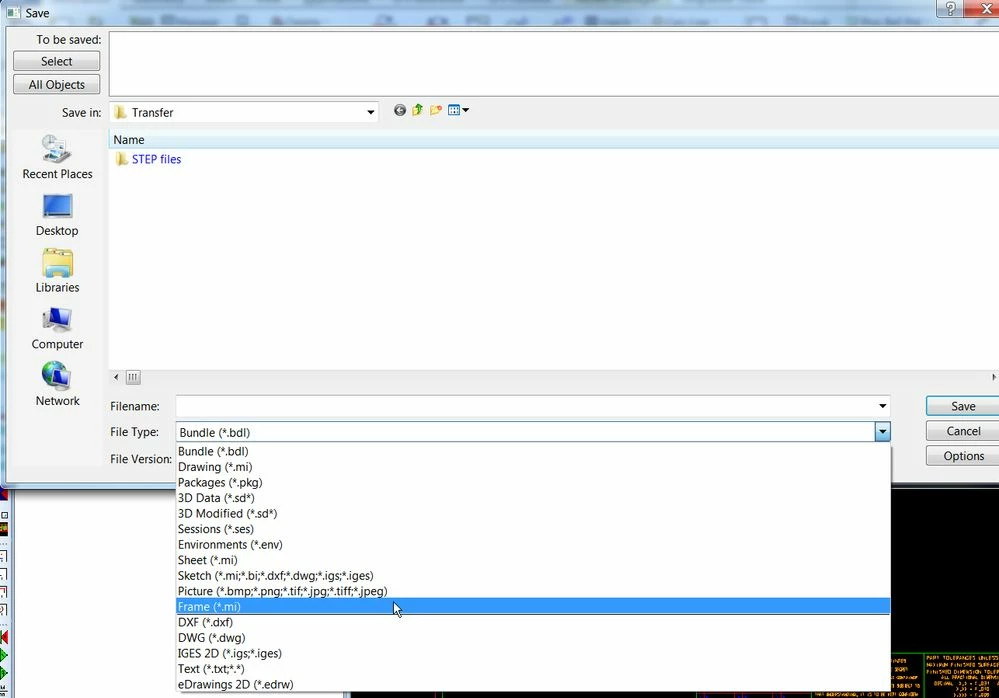

How did you create the frame? Did you save it as a frame?

J

jvadalia-2

Author

13-Aquamarine

Hi,

Issue is resolved.

Now its working.

Actually It was a syntax error in am_customize file.

Thanks All.

J

jvadalia-2

AuthorAnswer

13-Aquamarine

Wrong syntax i wrote.
;(docu-register-frame
; :UI-name "Custom-A3"
; :Wm-name ""
; :file "C:\Custom_Frames\Custom_A3.mi"
; :default :every time) ;; T/NIL/:every time

Right syntax solved the issue aa below.
"
docu-register-frame
:UI-name "Custom-A3"
:Wm-name ""
:file "C:/Custom_Frames/Custom_A3.mi"
:default :every time) ;; T/NIL/:every time
"
We have to copy the above syntax for all the frames to configure in am_customize file.
