Project Cross-Section Construction Lines. Where did it go?

  • February 27, 2013
  • 1 reply
  • 3253 views

There is no longer a command in 18.1 to project cross-section construction lines to a workplane. The only option is to project cross-section geometry to a workplane. Am I missing something or is it really gone?


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

F
FriedhelmK17-Peridot
17-Peridot
February 28, 2013

Hi Daniel,

in v17 or earlier you had the choice between geometry or construction lines and then make the cross-section.

In 18.1 i didn't yet find a button to make the choice.

The commands to switch are

GEOMETRY_MODE :REAL

GEOMETRY_MODE :CONSTRUCTION

If you push the button cross-section followed by GEOMETRY_MODE :CONSTRUCTION in the command line ENTER

the cross-section will be made of construction lines on the workplane.

If you need this often, you can create a button.

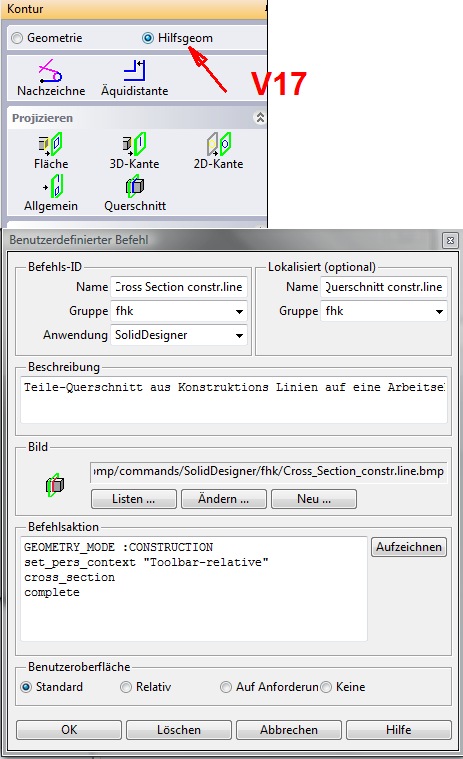

The exemple create the cross-section made of construction lines from the preselected part.cross-section.jpg

    D
    DanAdler13-AquamarineAuthor
    13-Aquamarine
    February 28, 2013

    Thank you. That is a good work around. I will submit an enhancement request to get this command back by default.

    F
    FriedhelmK17-Peridot
    17-Peridot
    February 28, 2013

    Hi Daniel,

    i had a look for other commands.

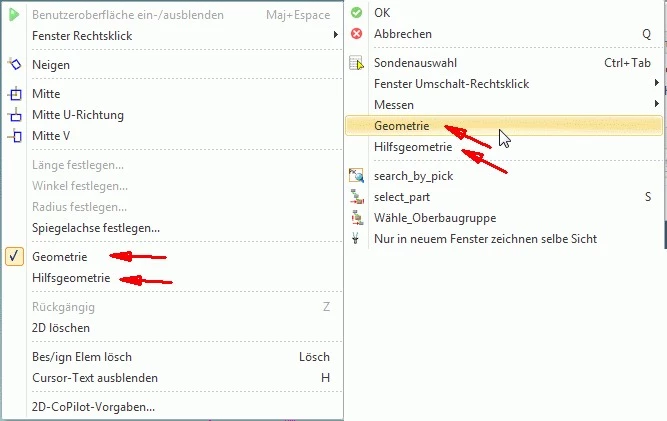

    If you draw a rectangle or a circle you can make a right klick and this opens an command dependent menu where you can make the choice between geometry or construction lines.

    So i created two new buttons one with

    GEOMETRY_MODE :REAL the other with

    GEOMETRY_MODE :CONSTRUCTION.

    Those buttons i placed in the right klick window menu.

    Now i have the same behavior for all commands.

    Command, right klick in the window, make choice and execution.
