2D Figure Call-out overlay

  • July 10, 2020
  • 1 reply
  • 1822 views

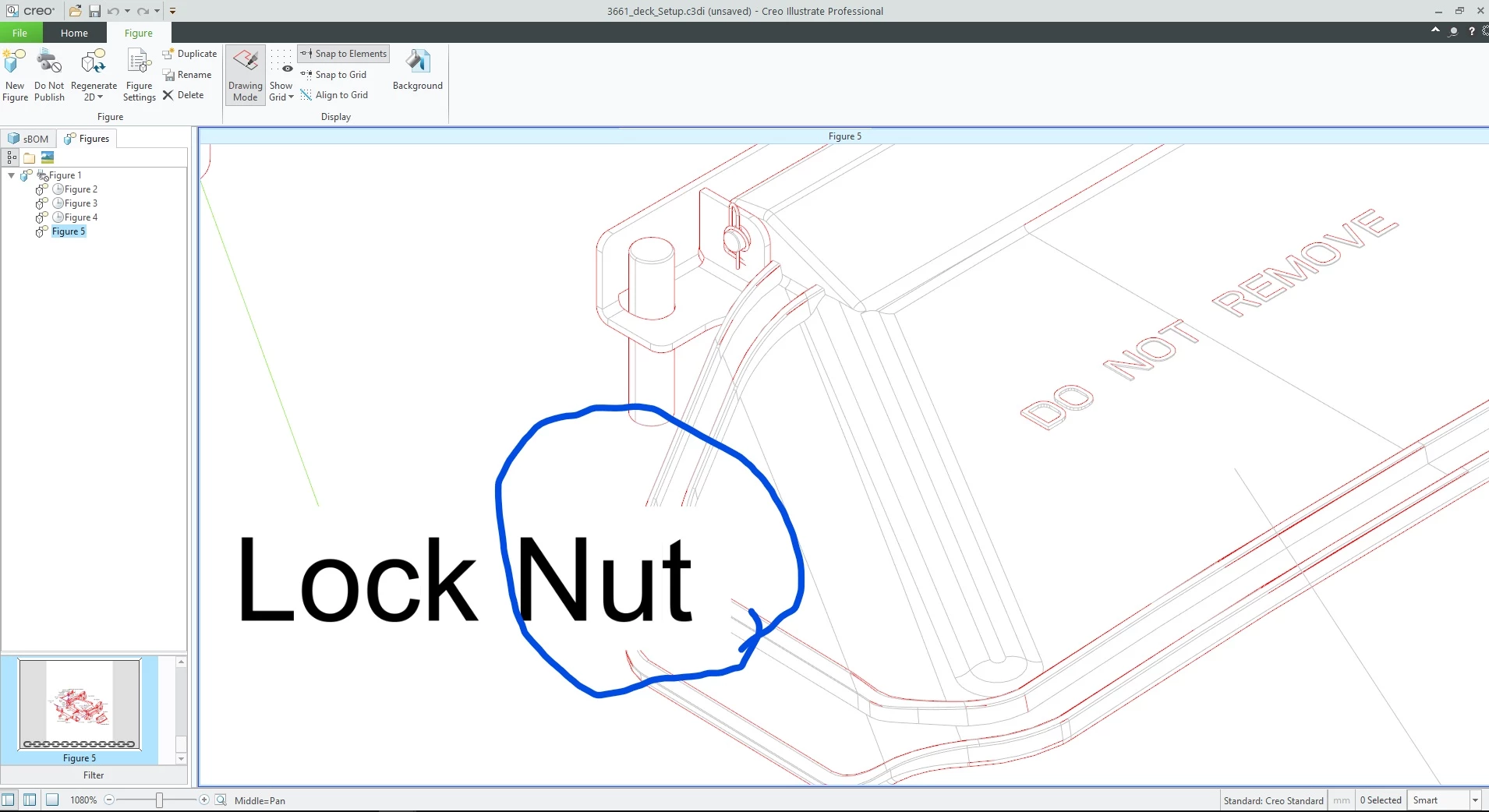

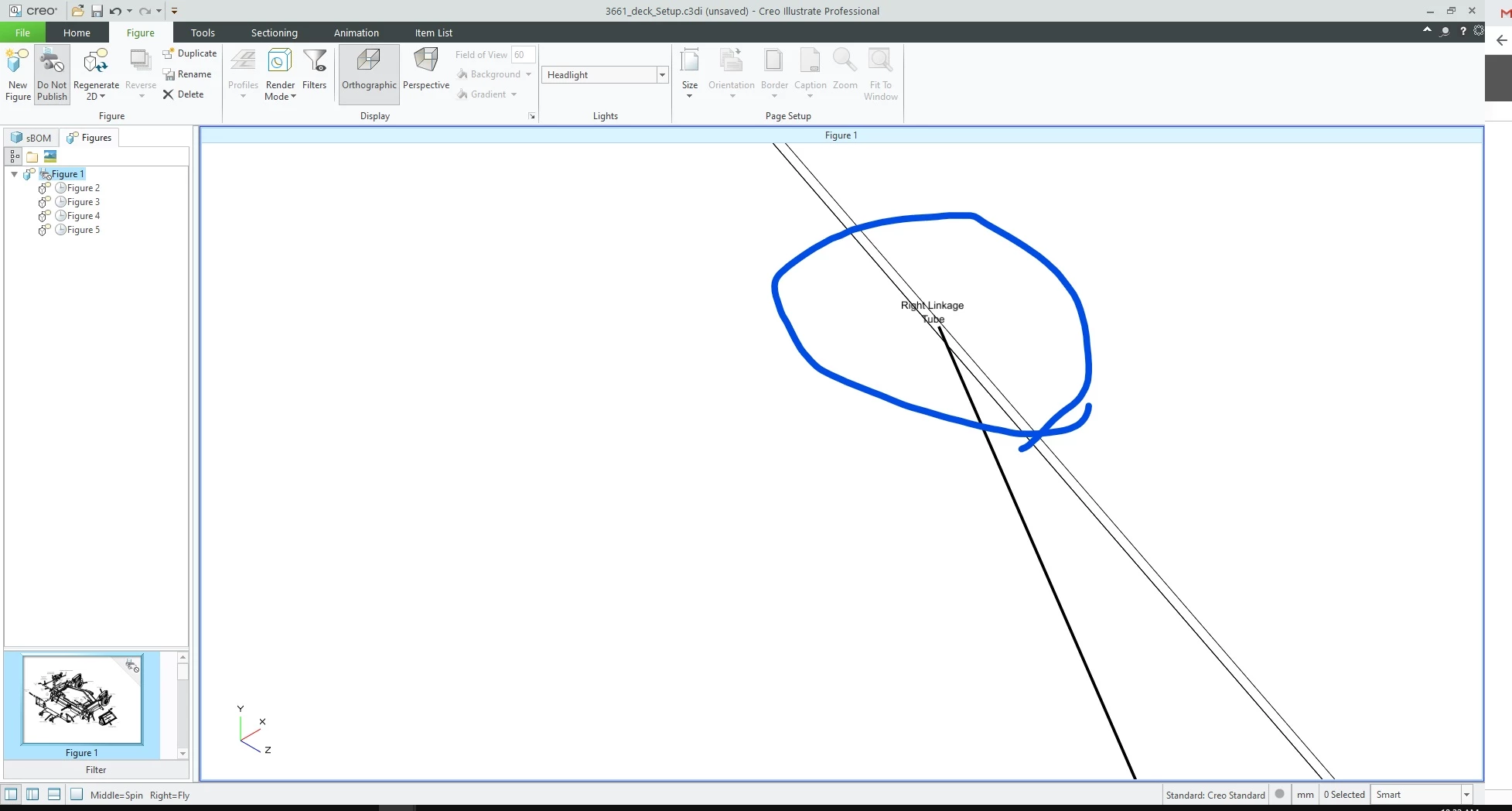

Hi everyone, Im coming across an issue where the call-out has an non transparent box around it in the 2D figure. Is there a way to change this so I can see the lines behind it? in the 3D model on the call-out itself I choose to have no shape and the wording goes across it just fine. Screenshots of both the 2D and 3D included



Thanks in advance!

Best answer by agarland

The opaque box behind the callout label is there by design and can't be turned off.

It's there to keep the text visible even when the label is placed over parts.



I would suggest submitting an idea to the Creo Ideas site if there is an enhancement to this behaviour you would like to see:

https://community.ptc.com/t5/Addtl-Creo-Ideas-Creo-View/idb-p/creogeneralideas



We monitor the site for ideas related to Creo Illustrate.

1 reply

A
agarland16-PearlAnswer
16-Pearl
July 14, 2020

The opaque box behind the callout label is there by design and can't be turned off.

It's there to keep the text visible even when the label is placed over parts.



I would suggest submitting an idea to the Creo Ideas site if there is an enhancement to this behaviour you would like to see:

https://community.ptc.com/t5/Addtl-Creo-Ideas-Creo-View/idb-p/creogeneralideas



We monitor the site for ideas related to Creo Illustrate.
