Question

3 D symbols in Illustrate

  • December 6, 2013
  • 2 replies
  • 2287 views

Hi,

I have 2 questions about 3D symbols in Creo Illustrate

1. How can I add a 3D symbol to Illustrate? Should this symbol be of the .ol file type? If yes, with what software can I create an .ol file?

2. Where are the sybol library files located? In the manual it is said that the path is \ users\<user_name\AppData\Roaming\PTC\Illustrate\SymbolsLibrary sha but on my laptop such a directory is not visible.

Regards,

Raymund

2 replies

M
mbalko1-Visitor
1-Visitor
December 6, 2013

Hi there,

I can only answer question two: the folder they mean is a hidden folder.

For making it visible you should open the data-explorer.

  1. Choose "Extras" => "Folderotions".
  2. In "View" scroll down to "hidden folders" and choose "view hidden folders"

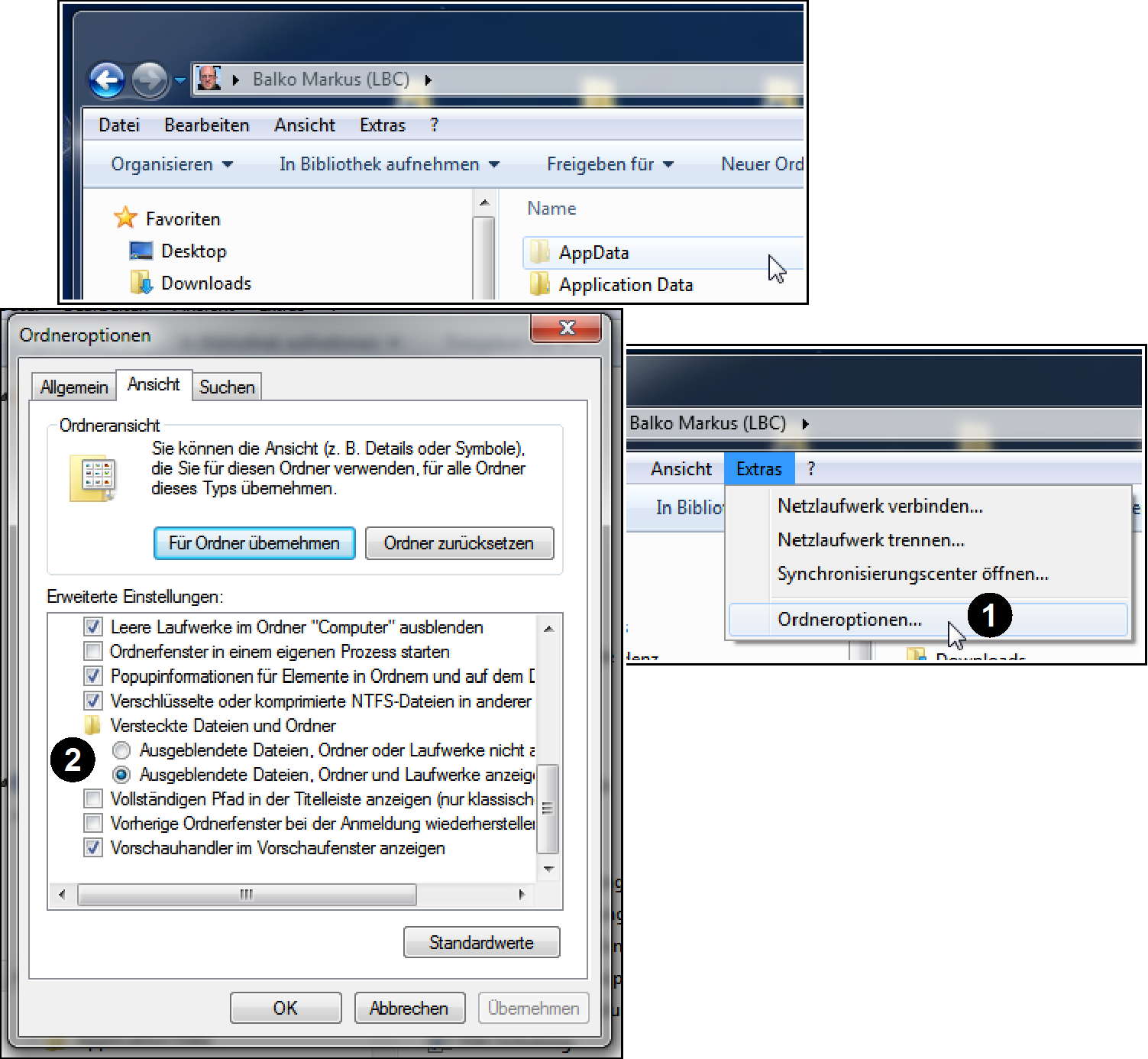

Now it should work. Sorry for having the screenshot only in german. I cannot grant that the names are correctly translated.


A
agarland16-Pearl
16-Pearl
December 6, 2013

Hi,

For your first question, yes they need to be in .ol format.

See this previous question on the forum for a little more detail on how to create an .ol:

http://communities.ptc.com/thread/38440

Regards

Adrian
