Add jog to a explode line

  • October 4, 2016
  • 1 reply
  • 2552 views

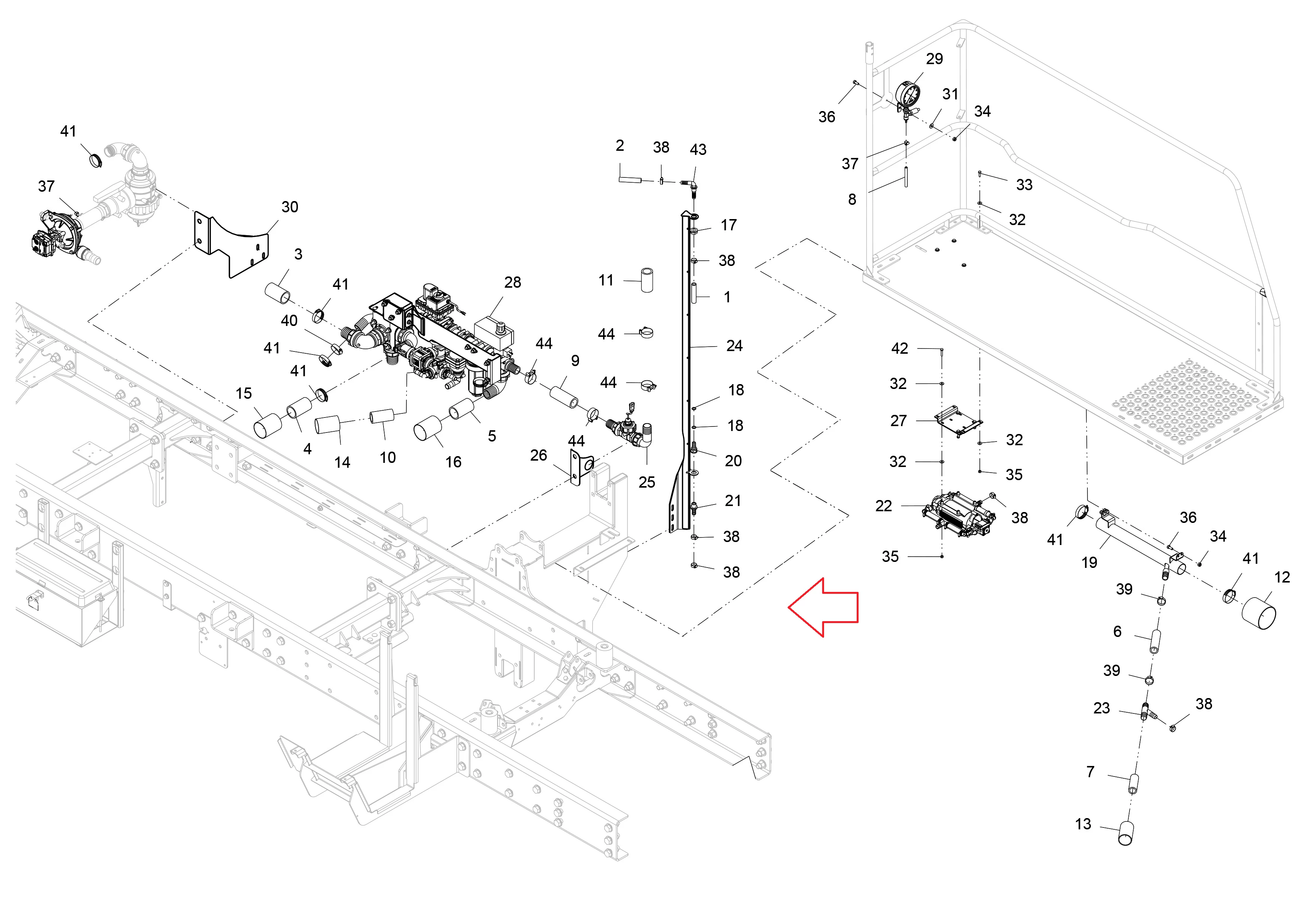

how to add jogs on a explode line like creo parametric can do?

look the attached file

    1 reply

    S
    23-Emerald III
    StephenW23-Emerald III
    23-Emerald III
    October 4, 2016

    Which software are you asking about?

    S
    23-Emerald III
    StephenW23-Emerald III
    23-Emerald III
    October 4, 2016

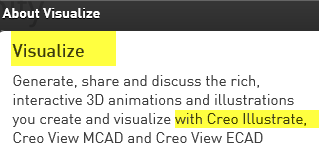

    Ahh, I see the category...Illustrate.

    Toby Metcalf‌ can move this to Visualize‌ to get the right eyes on it.

      T
      Tmetcalf5-Regular Member
      5-Regular Member
      October 4, 2016

      Thanks Stephen - it has been moved
