Add multiple guides to a Creo Illustrate 6.0 annotation

Ciao a tutti,

come faccio ad aggiungere una seconda linea guida a un'annotazione (Nota con linea guida)?

Grazie ,

Matteo

16-Pearl

Hi Matteo,

If the item list is not important this can be achieved using the "User Defined" callout type.

First create a user defined callout on each part, then select the items in the item list and in the Item list ribbon select the "Group" option.

This create a single callout with multiple leaders, then you simply double click the callout to edit the label text and type in the required text.

This does result in a single label with multiple leaders but the item list will reflect the grouped items so this may not be the result you need.

Hope this helps

Author

16-Pearl

Hello,

thanks for the reply but

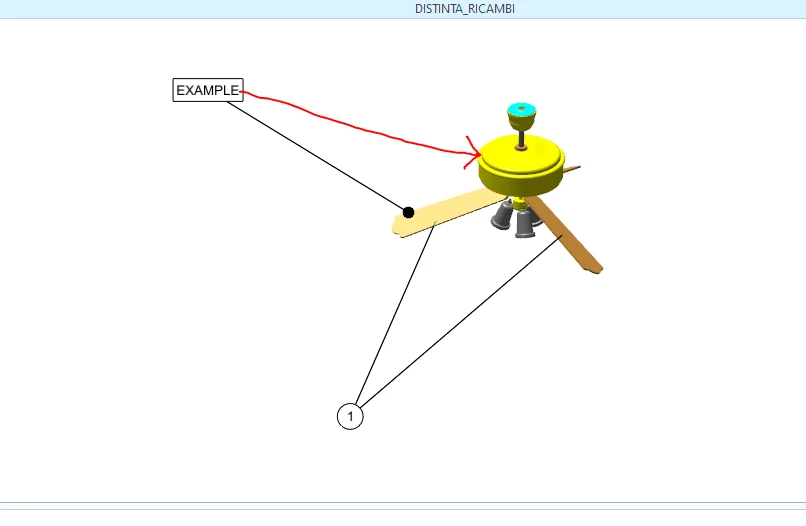

what I want to do is add a second guideline to a note with text (see example image)

Thank you,

Matteo.

16-Pearl

Unfortunately this is not possible for notes at the moment.

It may be worth logging this as an idea here:

As I can see many usecases for wanting to be able to do this.
