Allow symmetry between more than just vertices

  • June 25, 2012
  • 1 reply
  • 874 views

I'd like to use the symmetry constraint for more than just vertices; I'd like to use lines as well.

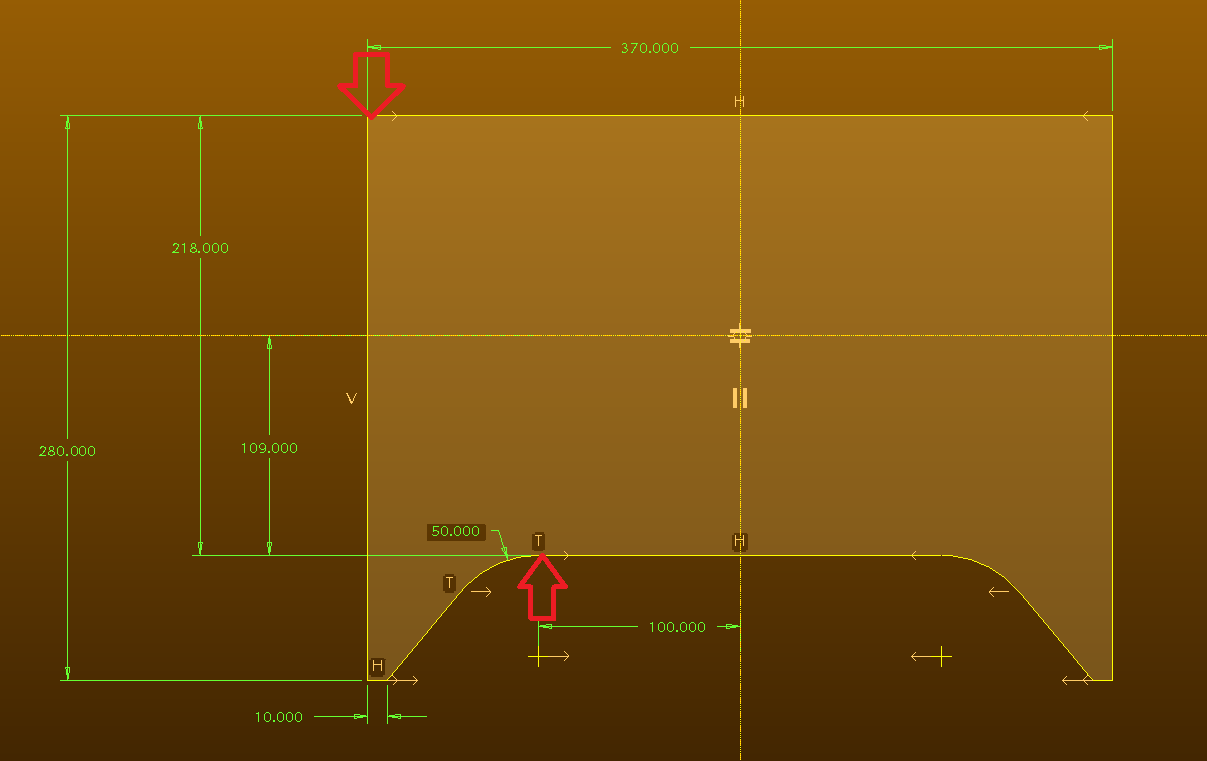

The two vertices in the attached image are not the same length, therefore I cannot choose the vertices I've pointed out in red. But if I could choose the LINES themselves, I could use the vertical symmetry I'm looking for that would replace the 109 dimension.




    1 reply

    B
    BrianMartin13-Aquamarine
    13-Aquamarine
    June 25, 2012

    If you dropped a center point on each yellow line, you could then use symmetry and remove the dimension. Obviously that's just a workaround but until this idea winds it's way through the system, at least it helps!
