Change the rotate point in Creo illustrate

  • August 24, 2023
  • 3 replies
  • 4978 views

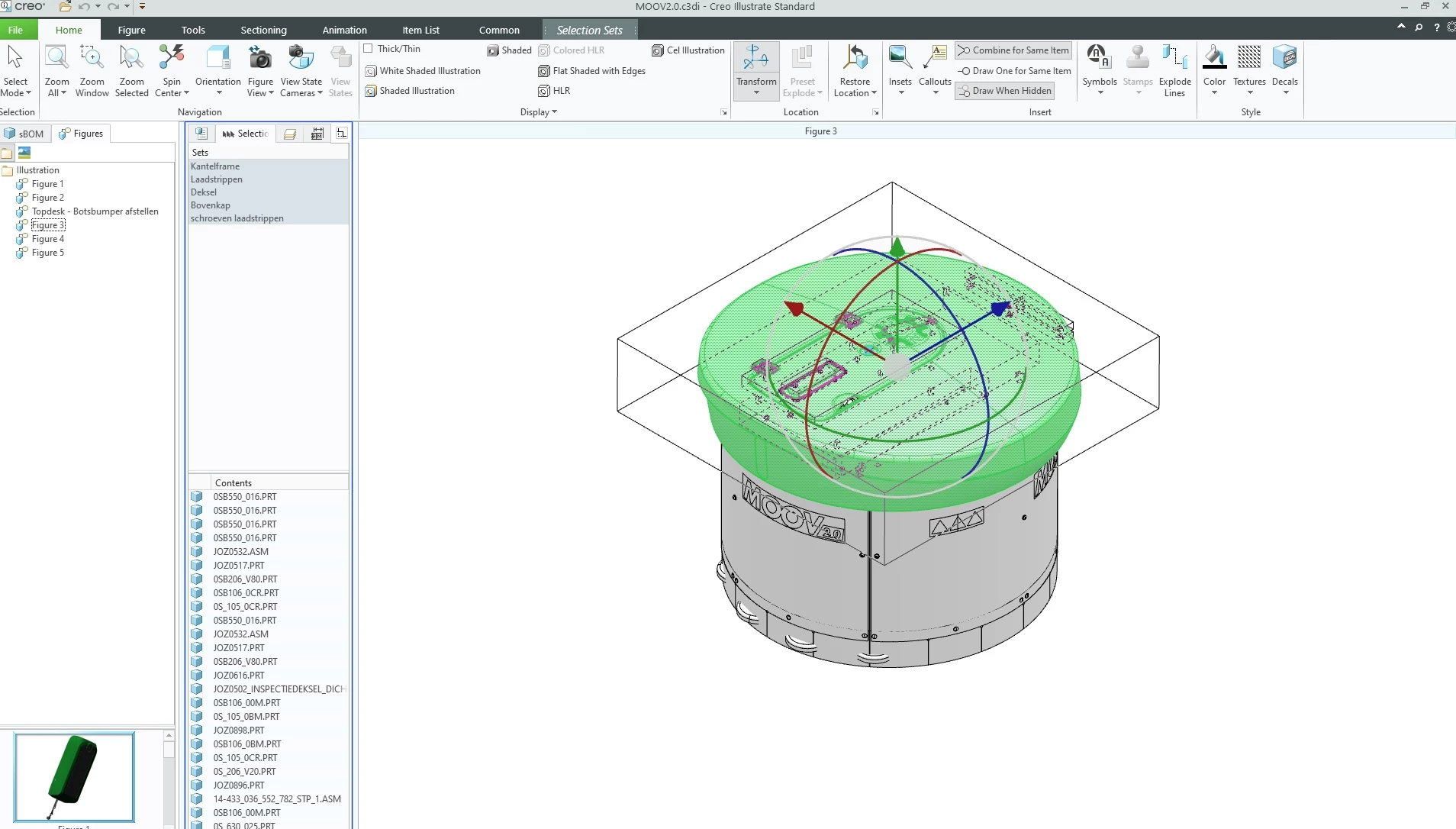

Can anyone help me with this: In Creo 10 Illustrate, I want to move the anchor point to rotate. See a screenshot below; This contains a group of opbjects that should rotate not from the center point but from a another point so that the hinge effect is more visible.

I may be overlooking something on how to move the anchor point in this version of Creo.







Best answer by Ramon_Bohne

Hello DS,



for what I know, you can change the rotation point by choosing a coordinate system of another part or geometric points (video 1).

Or you create a construction element (point, coordinate system, ...?) and then select this as the rotation point (video 2).


I hope the example videos help!?



Best regards

Ramon

3 replies

M
MartinHanak24-Ruby III
24-Ruby III
August 24, 2023

Hi,

https://community.ptc.com/t5/Creo-View-Illustrate-Schematics/Improve-rotation-in-Creo-Illustrate/idc-p/765063 request indicates that the Creo Illustrate does not have the required functionality.

Please ask PTC Support to know it for sure.

A
agarland16-Pearl
16-Pearl
August 24, 2023

The option to set the rotate axis has not moved.

You will find it in the RMB menu under Location (note that Transform needs to be active):

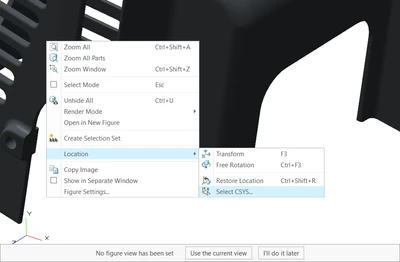

Set rotation point.png



















This allows you to pick a part, edge, axis etc to use as the csys (rotation point).

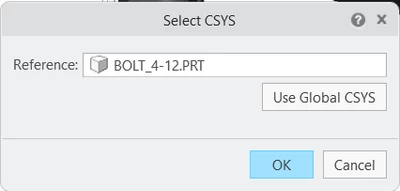

Pick csys.png















Hope this helps.

R
Ramon_Bohne14-AlexandriteAnswer
14-Alexandrite
August 25, 2023

Hello DS,



for what I know, you can change the rotation point by choosing a coordinate system of another part or geometric points (video 1).

Or you create a construction element (point, coordinate system, ...?) and then select this as the rotation point (video 2).


I hope the example videos help!?



Best regards

Ramon
