Creo Schematics wire jumps/bumps for non connected intersection

  • June 5, 2023
  • 1 reply
  • 1434 views

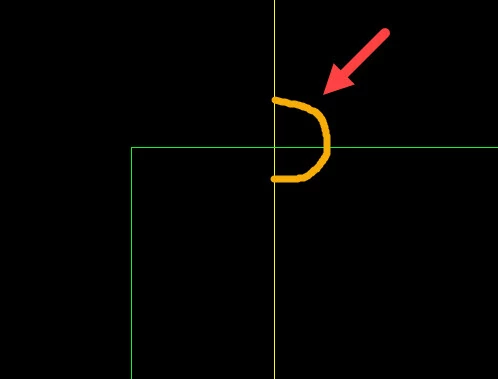

New Creo Schematics user. I'm trying to add a jump or bump to show cables that are not connected.

Anyone know a procedure on how to go about doing it?



Thank you

Best answer by KC_10522311

Hi ASA,

There is a button called "add crossover" in the diagramming ribbon.




1 reply

K
KC_105223117-BedrockAnswer
7-Bedrock
June 21, 2023

Hi ASA,

There is a button called "add crossover" in the diagramming ribbon.
