Illustrate - Save view status

  • November 30, 2019
  • 1 reply
  • 3657 views

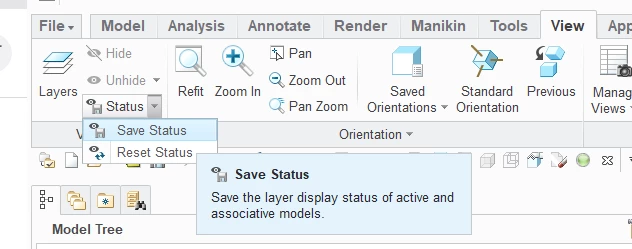

Is it possible to save view status on illiustrate like on Creo?

(See attachment)

Thanks



1 reply

16-Pearl
December 2, 2019

Hi,



What status are you trying to save?

In illustrate you can save a figure view for each figure, this saves the camera view for that figure.





hdasilva14-AlexandriteAuthor
14-Alexandrite
December 2, 2019

Hello agarland,



The "save view status" on Creo Parametric, allow users to hide componentes on the assembly, and they stay allways hidden even if you click on "unhide all". This is very helpfull when we have skeletons or reference parts that we need but don't want to see.

I am having problems when I import a pvz to illustrate, because I work with very large assemblys and the parts that were hidden in Creo Parametric start showing up, and I cannot find a way to hide and save them.



Thanks

16-Pearl
December 2, 2019

If these are parts that don't need to be in the sBOM then I would suggest going to structure edit and remove them from the sBOM altogether.

If you do still need them in the sBOM then you could try unloading them from the sBOM, this would stop them becoming visible again when you hit Unhide All.  You could even create a selection set with all the hidden parts to make it easy to control their visibility in the future.



Adrian
