Question

Measurements on a item

  • April 12, 2016
  • 2 replies
  • 1076 views

I am a product specialist for Milking Robots and Forage machines. When I want to measure up a item in diameter or length I keep stuggeling with this.



2 replies

24-Ruby III
April 13, 2016

Hi,

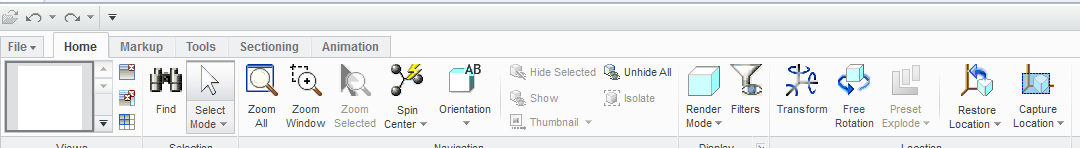

in my Creo View Express 3.1 measure tools are available on Markup tab.

To measure distance, you have to select 1-st reference, press CTRL key and select 2-nd reference.

To measure diameter, you have to select cylindrical surface and then its circular edge.

MH

18-Opal
April 14, 2016

Hi Fred,

Did Martin's reply answer your question or do you still require assistance?

If it did, please remember to mark it as the Correct Answer.

Thanks,

Amit
