S1000D CGM profile

  • August 15, 2014
  • 2 replies
  • 3169 views

Iā€™m trying to create technical illustration using IsoDraw 7.1. The delivery profile is specific.

The export format to be used for ASD is CGM according to ASD 1000D profile defined in S1000D issue

  1. 2.3. This profile is based upon WebCGM 2.

Is it possible to setup the preferences so that all of the CGM exports and compliant with this profile?

2 replies

V
24-Ruby III
VladimirN24-Ruby III
24-Ruby III
August 18, 2014

Hi Lloyd,

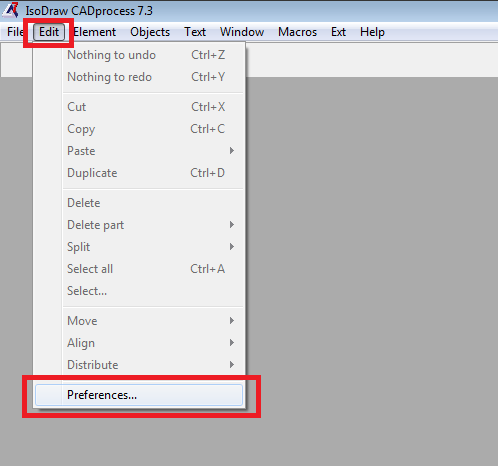

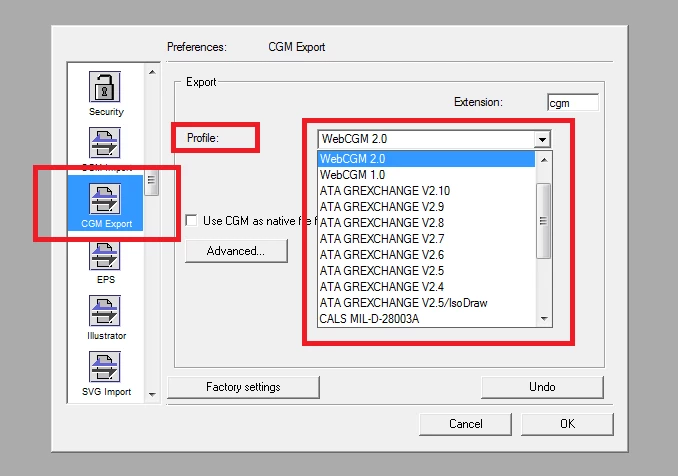

Please select in main program menu: "Edit" -> "Preferences" -> "CGM export" -> "Profile" -> "WebCGM 2.0" (for me In Arbortext IsoDraw 7.3 "WebCGM 2.0" format set up by default):



P
ptc-41810401-VisitorAuthor
1-Visitor
August 18, 2014

Thank you for that information. How do I make sure the S1000D 2.3 is selected before export?

T
thendricks12-Amethyst
12-Amethyst
August 18, 2014

Two approaches. Both have their drawbacks.

1) Change the preference file. The two flaws with this is that you would then need to push the preference file to each machine that will need to do this (#2 has same concern). The second is that a user, if playing around with preferences, could override this.

2) Make a macro for the export. In our case we need various export formats and I've learned that it's best to train our people to use a single macro versus manually exporting. The setting of the export specifics can then be handled in the macro immediately before the export (also done by the macro). Main flaw here is that, like the preferences, you need to push it out to the users. Second item is that you need to also have your users break the habit of manually saving and to instead trust your macro (I got luck as I put this in place very shortly after starting IsoDraw).
