July 8, 2013
Question

Thicken Sketch

  • July 8, 2013
  • 3 replies
  • 2015 views

I would like to sketch a Dashed line, and after that...Thicken the sketch and extrude.





This is only possible by using the crappy Thicken featuren in Sketch mode.
OR 1 linepiece at a time and Thicken the extrude.



Multiple Lines in extrude modus are not accepted.




    3 replies

    D
    dgschaefer21-Topaz II
    21-Topaz II
    December 5, 2013

    I'm a bit confused as to what you are tying to do.

    Are you trying to use the thicken feature on a surface to create solid geometry?

    Are you using the Thicken command inside a sketch in sheetmetal mode?

    Are you trying to extrude a feature with entities that are uniformly offset from another sketch or curve?

    All of these are possible now, you just need to find the right tools. 😄

    T
    TomD.inPDX17-Peridot
    17-Peridot
    December 5, 2013

    I'm voting for this only because there are several features that should be allowed to create multiple features from a single sketch.  Let Creo manage this internally by not making the user repeat the same thing over and over.

    The instance for this idea is a very common practice where you have knockouts.  This should be simple and intelligent including web, radii, and/or segment length variables built in.

    E
    emolenaar1-VisitorAuthor
    1-Visitor
    March 6, 2014

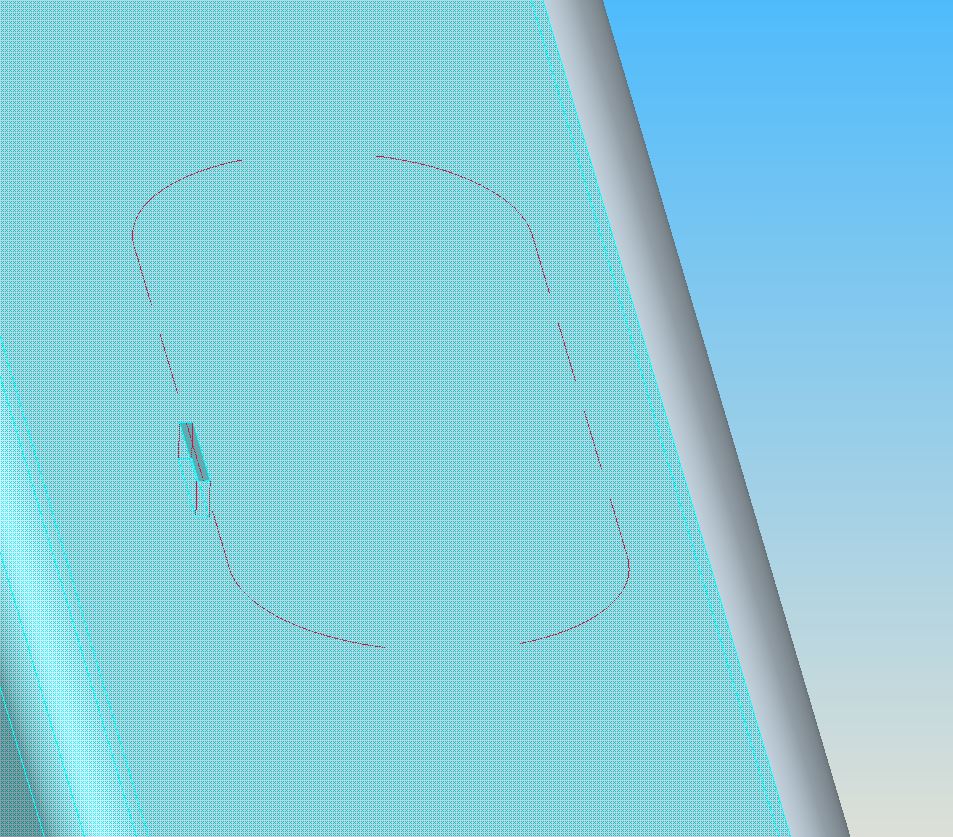

    I want to make 1 sketch;
    And Thicken-Cut-Extrude it in a Sheetmetal part


    To create 'Break-Out Holes" and stuff Sheetmetal parts

    BUT The sketchers NEEDS 1 Line or 1 Loop.
    Multiple lines extrude in 1 feature is not possible (as far as i know).
