Wheel Rolling along a curve

  • July 28, 2010
  • 0 replies
  • 1258 views

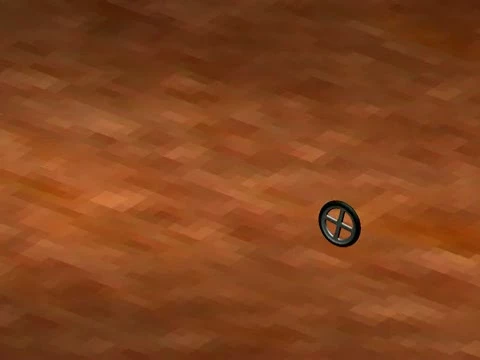

I made a mechanism after a question by someone on the PTC forum. Further i applied some details and made an animation.



There was..

1) cam follower to move along the curve.

2) a motor on the axis of the wheel to keep it rotating.

3) another motor for swinging the wheel left/right while turning.
