Question

bill of material in drawing frame

  • October 14, 2014
  • 0 replies
  • 836 views

Hello,

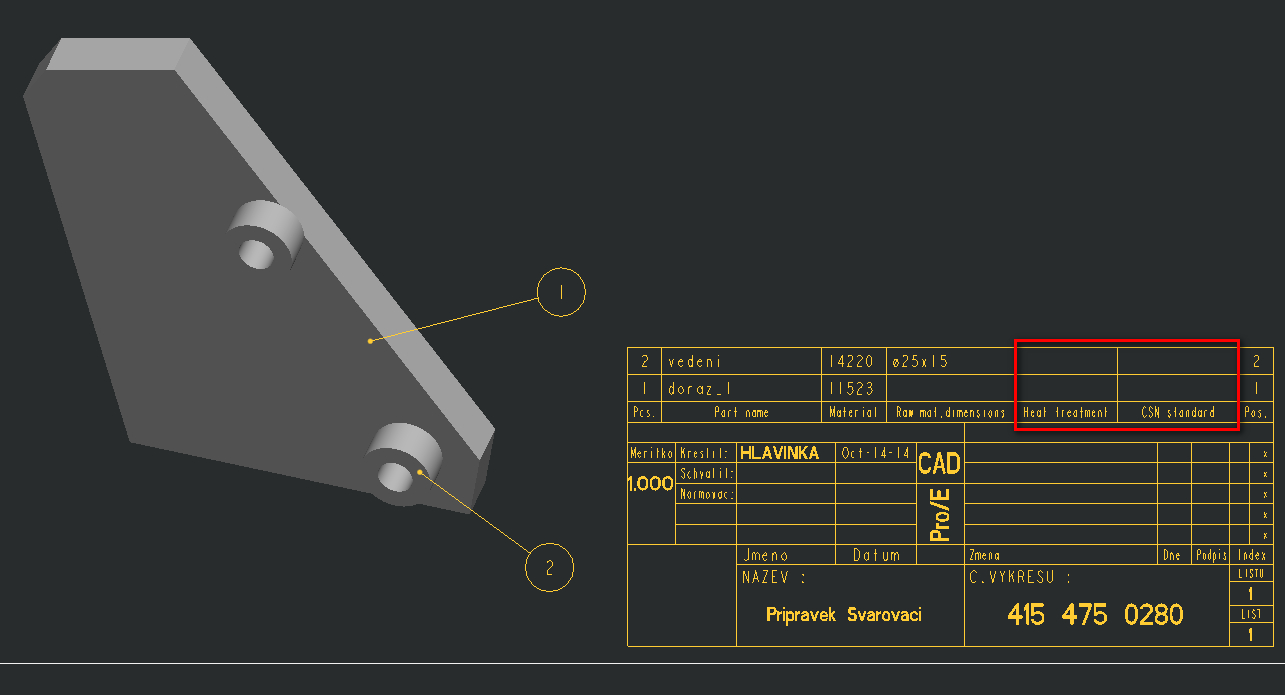

I would need an advice how to resolve a problem with missing values in bill of material as shown on the pic below:


The bill of material is made by repeat region by following way:

from the left: - rpt.qty

- asm.mbr.ptc_common_name

- asm.mbr.ptc_material.PTC_MATERIAL_NAME

- asm.mbr:ptc_material.PTC_MATERIAL_DESCRIPTION

- in this collumn i would need to have information regarding heat treatment (for ex. 46-48HRC)

- in this collumn i would need to have information regarding ČSN or DIN standard for parts like screws,nuts,...

- rpt.index

those two underlined informations needs to be added.

Thank for help in advance

T.Hlavinka
