Draft feature in 2 concentric holes of different dia.

  • September 9, 2014
  • 2 replies
  • 2605 views

Hello friends!

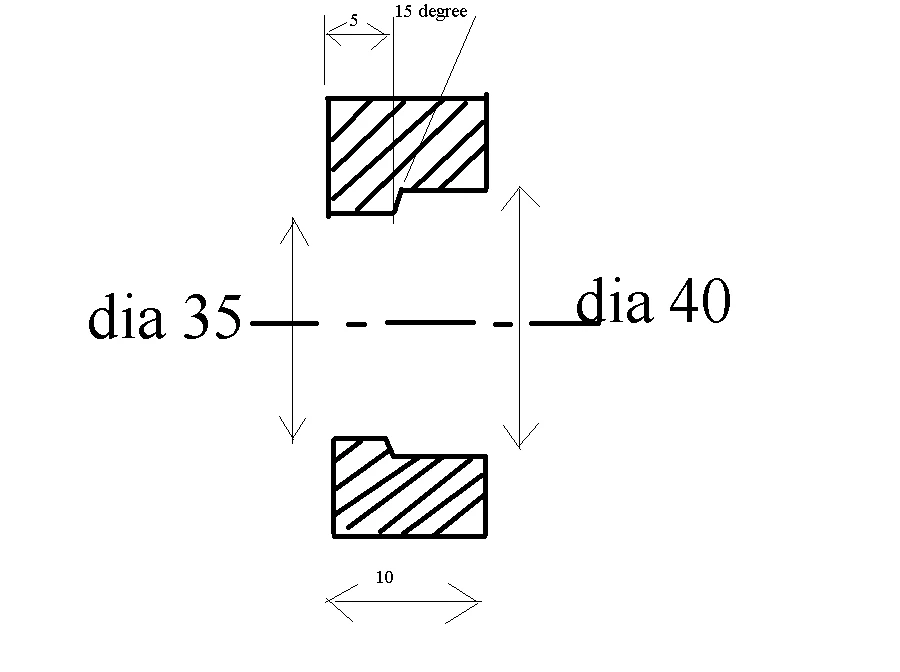

I have some trouble in draft feature. First, I made two concentric holes as diameter mentioned in the figure. Then I wanted to make draft feature in the common surface shared by those 2 holes. But I couldn't fix it up.

Please anyone can help me?

    2 replies

    A
    AnoopKrishna1-Visitor
    1-Visitor
    November 25, 2014

    Hi S ESAKKI,

    If want a draft in the surface you have mentioned,u can try out chamfer feature or you can go for a revolve feature to create an inclined surface with 15 degree angle,

    Hope u understood what i mean to say,if u dont understand,please do reply me.

    Thanks,

    Anoop

    M
    mvishwakarma1-Visitor
    1-Visitor
    June 10, 2017

    draft can be used for like this ...you should use chamf@er  or revolve cut @draft hole surface.JPG
