Help with assembly analysis CREO 10.0

  • December 10, 2023
  • 1 reply
  • 952 views

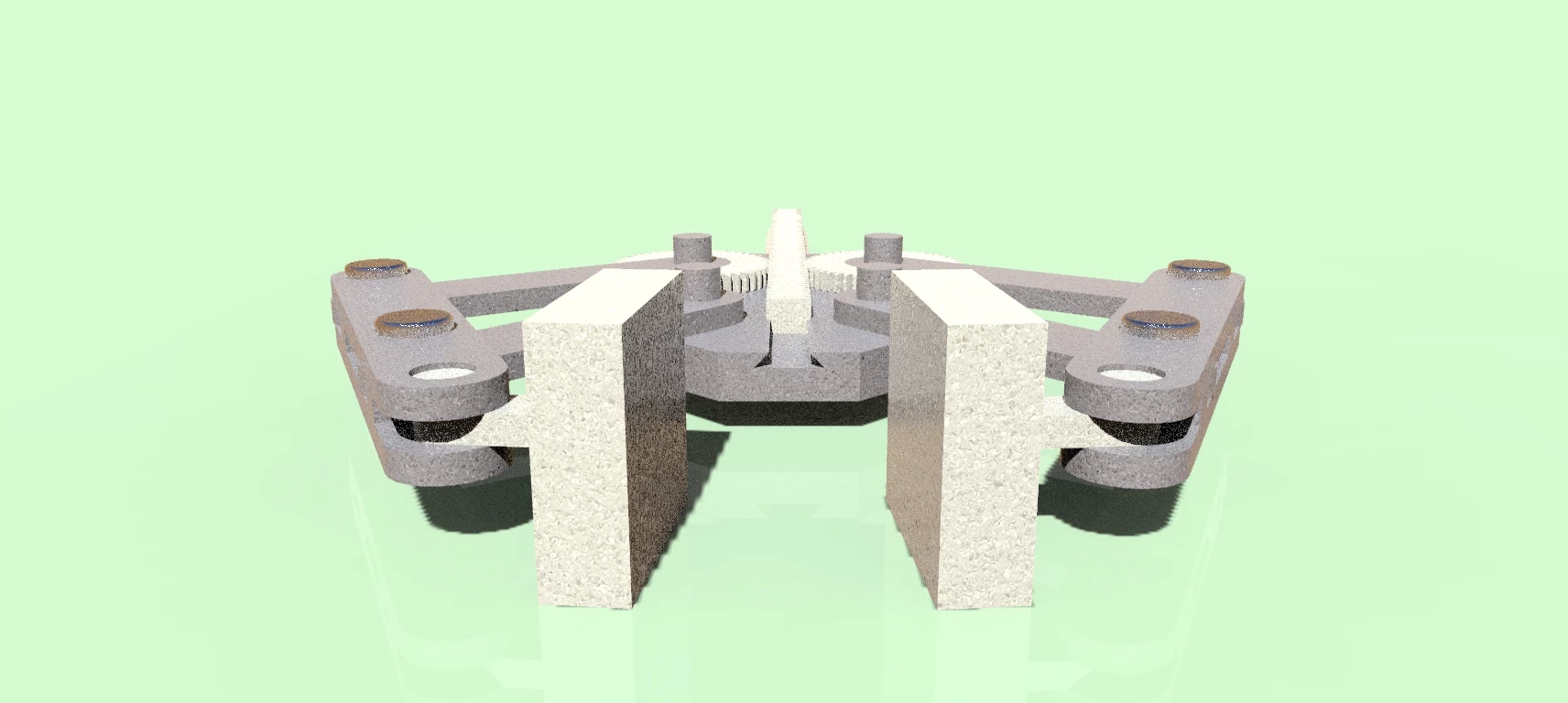

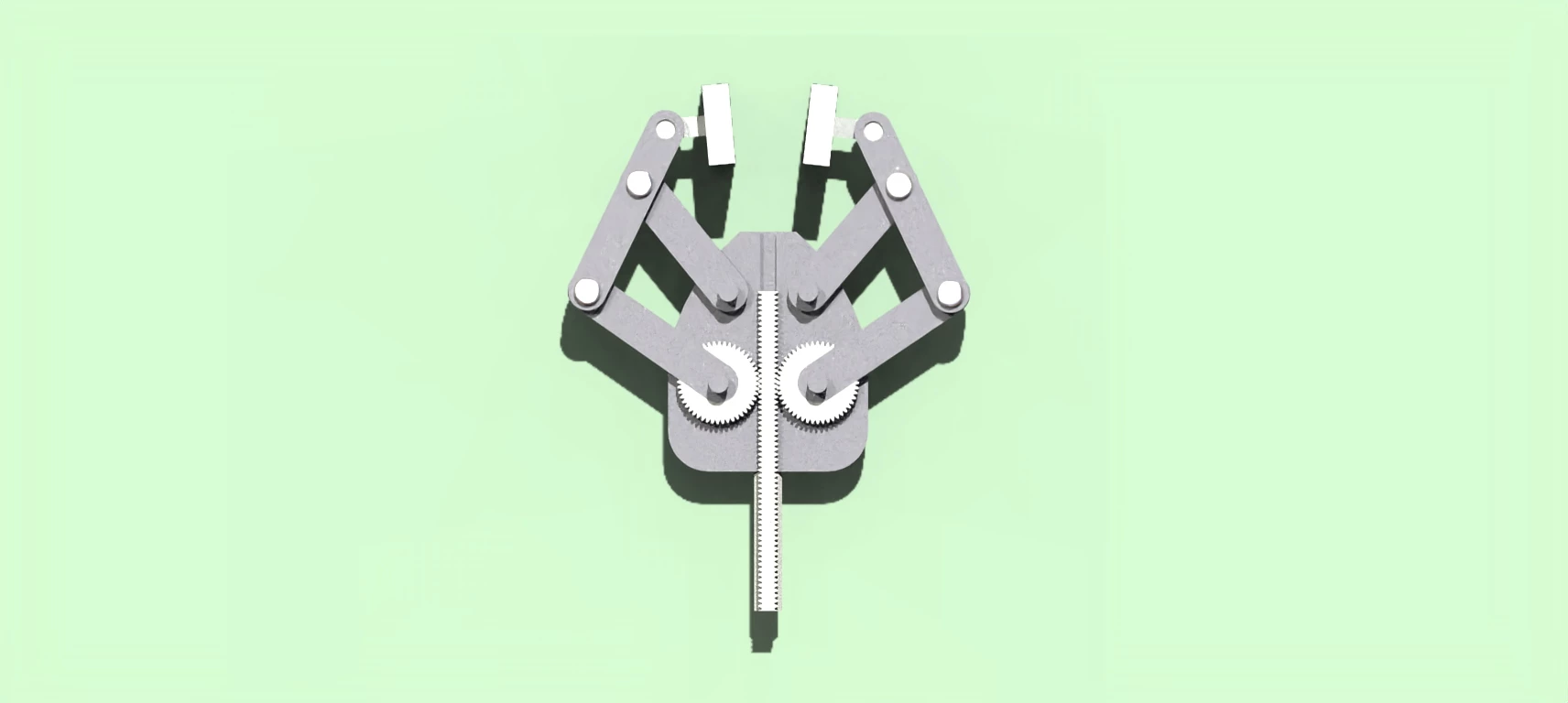

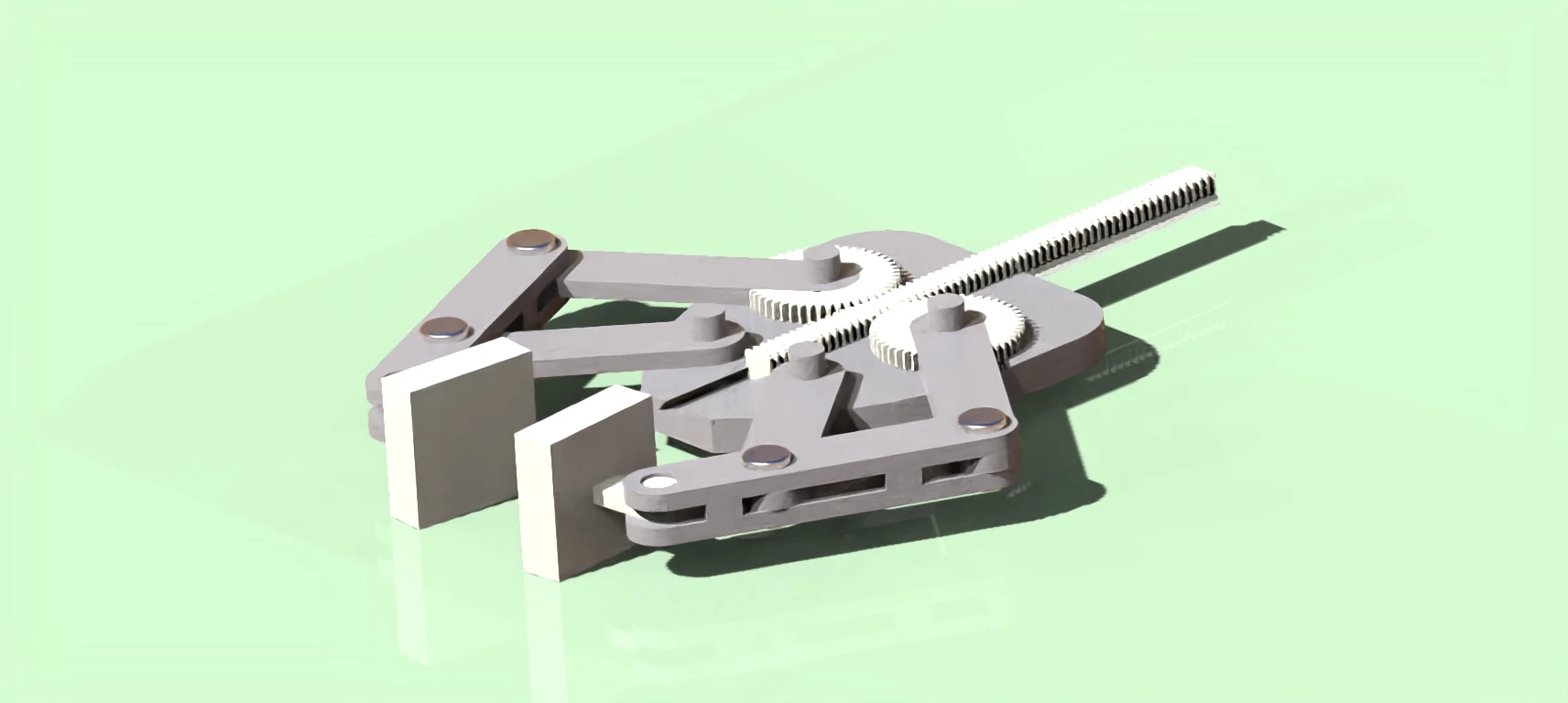

I have a school project with a claw mechanism designed by my group. The goal is to create a motion and force analysis that measures important aspects of the design. I want to measure the force generated between the two claws and perhaps the reaction forces at each pin. Can someone walk me through exactly how to do this? I'm completely lost. Thank you in advance for your help.


A bit of what I have already done is:

- Add a motor to the pinion to simulate the rack being pulled backward.

- Run an analysis from the fully open position to right before the two claw parts touch.



Thank you for your help in advance.

1 reply

V
vnamboodheriCommunity Manager
Community Moderator
December 15, 2023

Hi ML_10397290,

Thank you for your question.
Iā€™d like to recommend to bring more details and context to your initial inquiry.

It also helps to have screenshot(s) to better understand what you are trying to do in your process.

This will increase your chances to receive meaningful help from other Community members.

Regards,

Community Moderation Team.
