radial pattern of a cut

Hi,

I am using PreoE2000i.

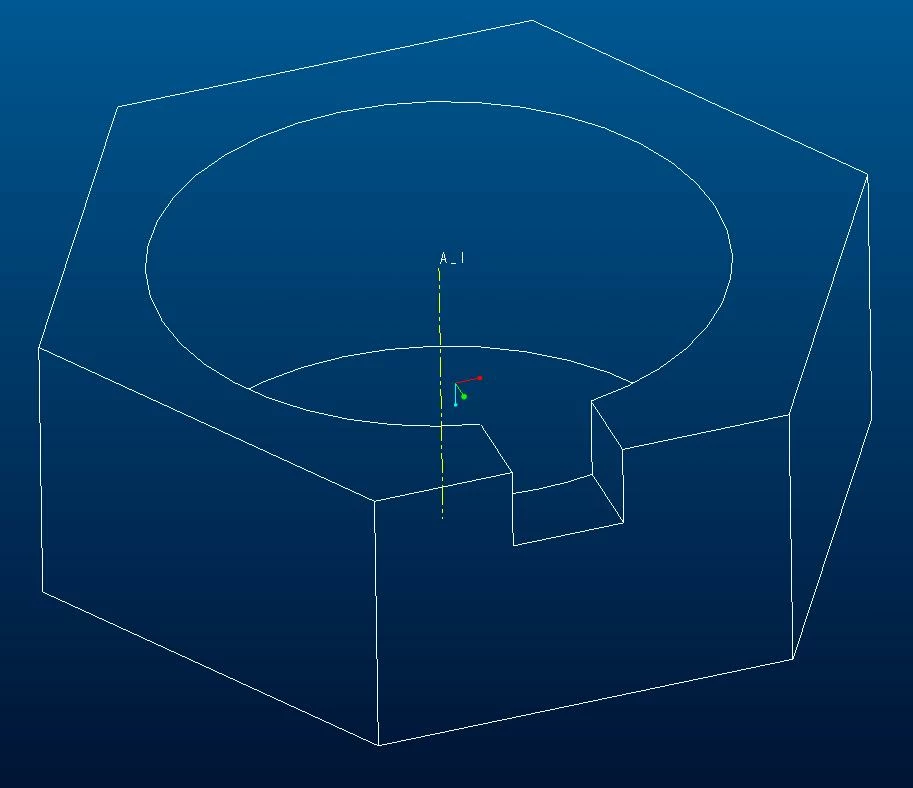

I made a cut on an extruded hexagon as shown in the figure and would like to make a radial pattern of it. How can I do that?

    3 replies

    ptc-48699121-Visitor
    1-Visitor
    Jan 9, 2013 8:50 PM UTC

    Set-up your cut down on the hex and insert an angle in the geometry of the cut. Use the angle when you pattern the cut about the inital centerline.

    Translate
    ptc-48356131-VisitorAuthor
    1-Visitor
    Jan 10, 2013 6:28 PM UTC

    "Use the angle when you pattern the cut"

    I have a square cut with proper dimensions, but dont know how to set an angle for it. I used a center line in the middle of square to give an angle but that wont work. :S

    Translate
    kleipold10-Marble
    10-Marble
    Jan 15, 2013 7:54 PM UTC

    You need to have an angle in the hex dimension. You can make a centerline at an angle to the reference. Set this centerline to got through the center of your hex. Make the angle 0 if you must.

    Translate
