Solved

Show model annotations

  • March 6, 2019
  • 1 reply
  • 6399 views

Hello guys,

to show all model annotations (e. g. all dimensions) in a drawing, I usually click "Show model annotations" and then select my model in the model tree. Yet it seems that some dimensions (they always seem to belong to a pattern) are shown only if you click directly on the pattern in the model tree. That is a little annoying as I want to  get really all dimensions at one click without being in danger of missing any. Is there a way to do that?



Greetings

Best answer by MartinHanak

Hi,

I can reproduce the problem with Fill pattern.

It looks like this is Creo bug/limitation.

You can ask PTC Support, if you need their evaluation.



1 reply

M
MartinHanak24-Ruby III
24-Ruby III
March 7, 2019

Hi,

in Creo 2.0 on simple model I can't see any problem.



To display annotation I selected A.PRT in model tree.

R
Ramax1-VisitorAuthor
1-Visitor
March 7, 2019

Hi Martin,

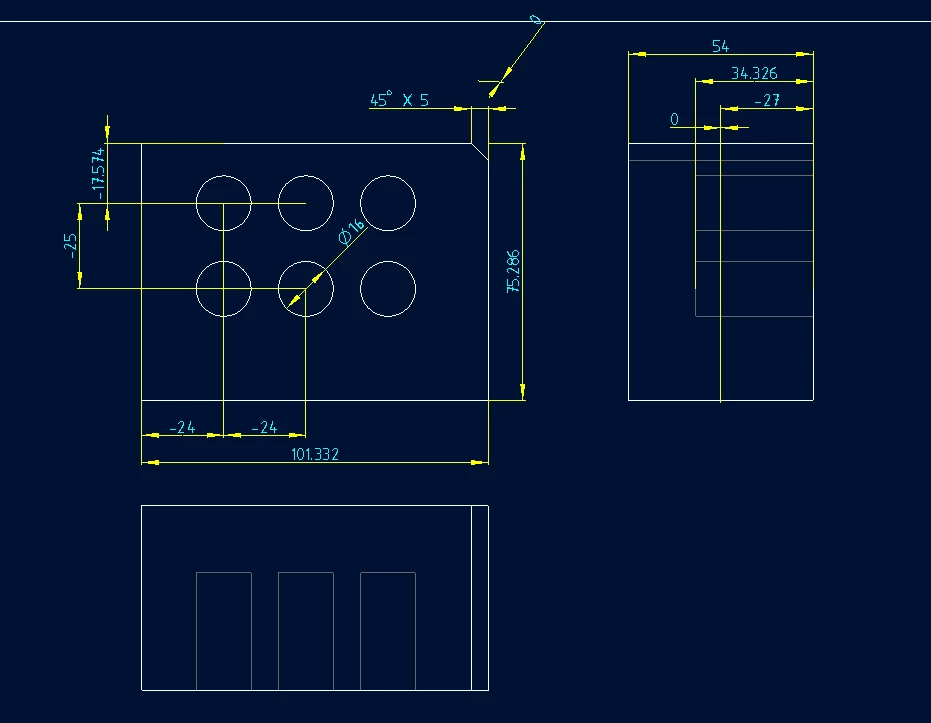

that's the same way I do it. Indeed most of the time it works, but let me give an example of the problem (see attachment).

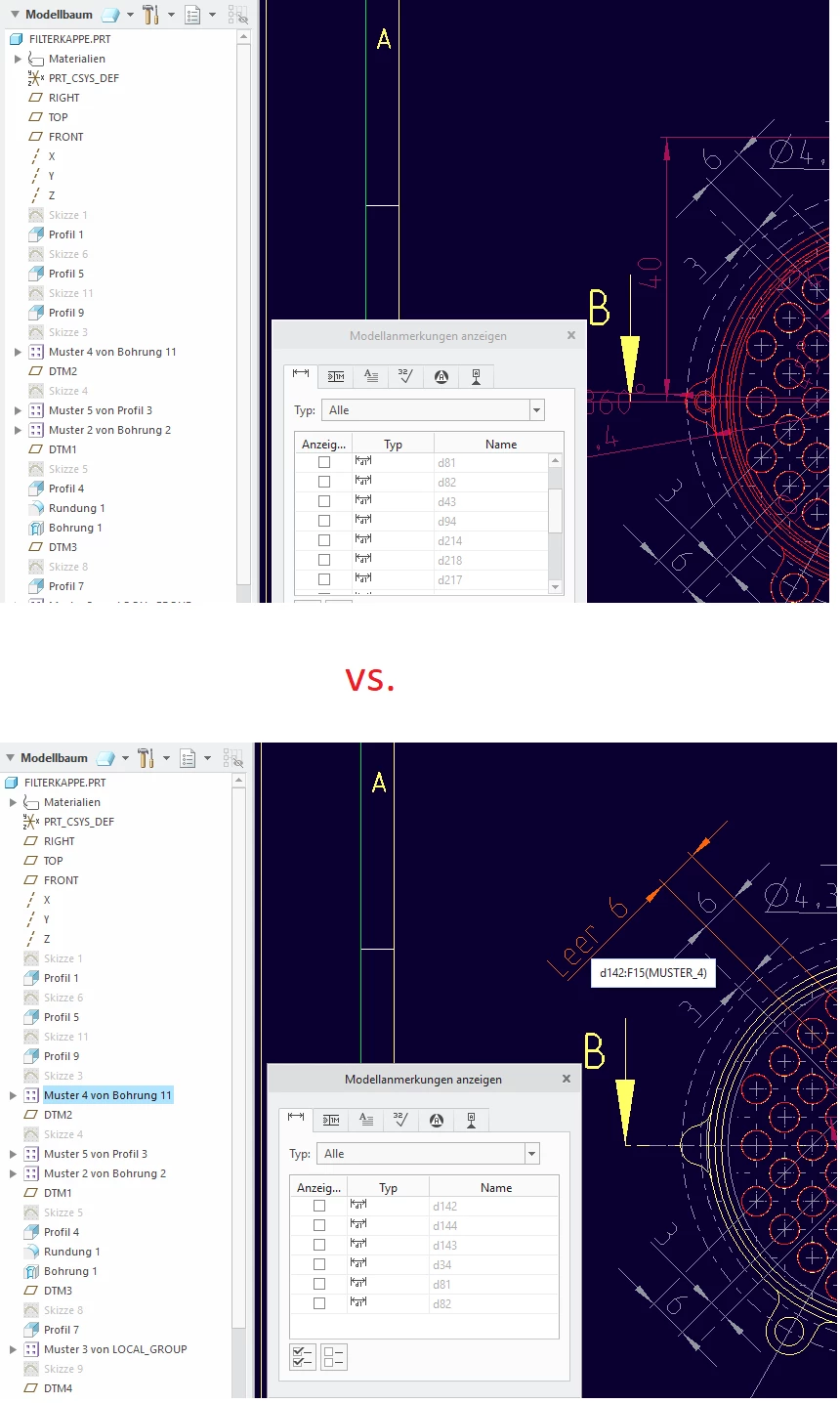

When clicking on the prt in the model tree, I don't get the dimension "Leer 6" (d142, which refers to pattern 4 "Muster 4" in German).

When I click directly on pattern 4 in the model tree, I get it. Sort of weird.



Greetings

M
MartinHanak24-Ruby III
24-Ruby III
March 7, 2019

Hi,

what kind of pattern do you use in "Muster 4". Is it Fill pattern ? Please edit definition of pattern and publish the picture of feature user interface.
