Question

Wind Turbine with Spline Points

  • February 3, 2014
  • 2 replies
  • 3030 views

Hello all,

I'm trying to do an exercise where I have a set of pairs of spline points which correspond to different sections of a wind turbine blade. I've managed to define a set of co-ordinate axis and space several planes away from one another.

How do I form a blade with these spline points?

Much appreciated

    2 replies

    D
    dschenken1-Visitor
    1-Visitor
    February 3, 2014

    On YouTube:

    watch?v=RNqQUIM_X2E Making Wings in ProEngineer by Decaff2010 (Go UIUC Aero department)

    watch?v=HPVD34gp90E Pro/Engineer Propeller Tutorial also by Decaff2010

    A
    Anautics1-VisitorAuthor
    1-Visitor
    February 4, 2014

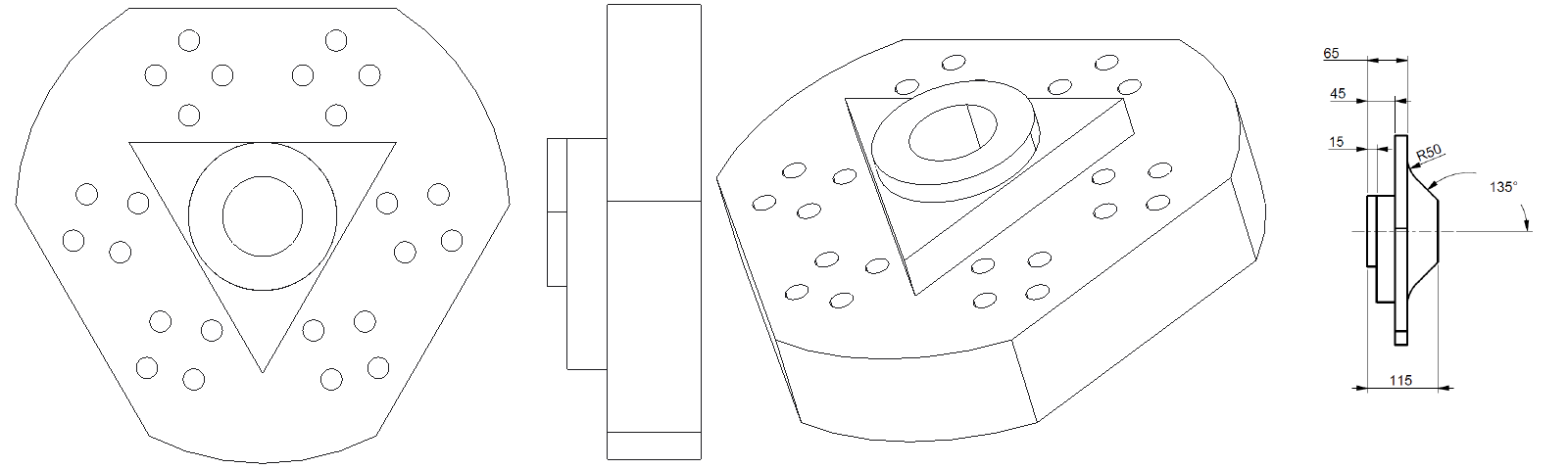

    The exercise also requires the creation of a "hub" on which I attach three copies of the turbine blade. The hub needs to have some material removed from its back side but I am not sure how to do this. I have managed to create all elements of the hub - apart from this bit. The first three wirefram drawings are what I currently have as parts and the far-right most image is a drawing from which I am trying to replicate the hub from. Which functions should I use to remove the material with the given dimensions of R50 and 150 degrees?
